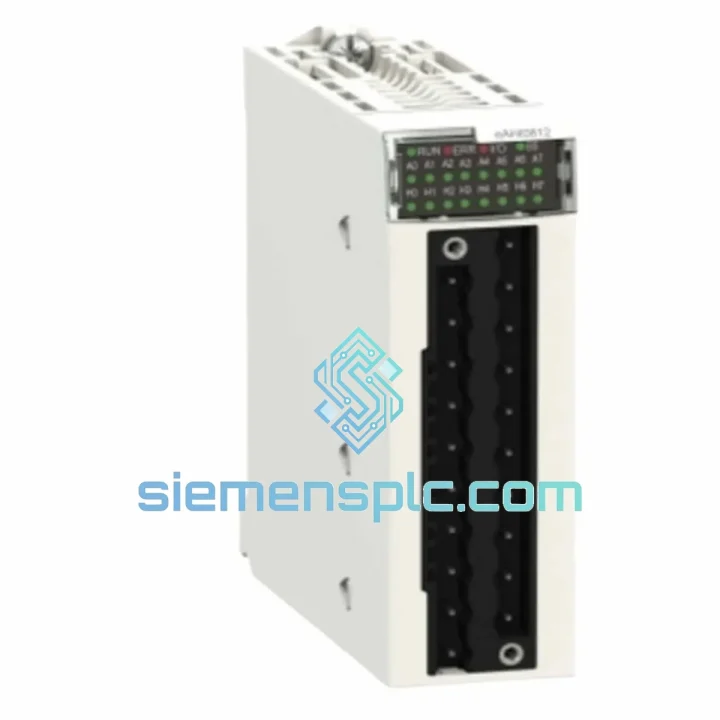

Schneider Electric BMEAHI0812 8-Channel Analog Input Module — Precision Signal Acquisition for Modicon M580 ePAC Control Loops

In any closed-loop process control architecture, the analog input stage is the first point of failure when measurement integrity is compromised. Field transmitters generating 4–20 mA or ±10 V signals carry the physical state of the process — temperature, pressure, flow, level — into the digital domain of the controller. If that conversion is imprecise, delayed, or corrupted by electrical noise, the PID algorithm operates on false data, setpoint deviations accumulate, and process stability degrades. The BMEAHI0812 addresses this at the hardware level: an 8-channel, 16-bit analog input module engineered specifically for the Modicon M580 ePAC backplane, delivering sub-millisecond scan latency and channel-to-bus galvanic isolation in a single rack slot.

The Modicon M580 platform is Schneider Electric’s Ethernet-native process automation controller, designed for continuous process industries where deterministic scan cycles and transparent diagnostics are mandatory. Within this architecture, the BMEAHI0812 functions as the primary analog front-end, converting field-level analog signals into 16-bit digital values that the M580 CPU processes on the X80 local rack bus. Its universal channel configuration — each of the 8 channels independently selectable for voltage or current input — eliminates the need for separate voltage-only and current-only modules, reducing rack density and simplifying spare parts inventory for maintenance teams.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The BMEAHI0812 implements a successive-approximation register (SAR) ADC architecture at the channel level, which provides the deterministic conversion time required for synchronous multi-channel sampling in process control applications. Unlike sigma-delta converters that introduce variable group delay depending on filter configuration, the SAR topology in the BMEAHI0812 delivers a fixed conversion latency per channel, allowing the M580 CPU to timestamp analog data with consistent phase alignment relative to the MAST task cycle.

Channel-to-Bus Isolation Architecture: Each analog input channel is isolated from the X80 backplane bus through an optocoupler barrier rated for continuous operation at field-side voltages. This isolation topology serves two distinct functions. First, it prevents ground loop currents — common in large industrial installations where field instruments and the control cabinet share different earth reference potentials — from injecting common-mode noise into the ADC input stage. Second, it protects the M580 CPU and other rack modules from transient overvoltage events originating at the field wiring terminals, such as inductive kickback from solenoid valve coils or lightning-induced surges on long cable runs.

EMC Design: The module’s PCB layout incorporates a dedicated analog ground plane separated from the digital ground plane, with a single-point star connection at the isolation barrier. Input traces are routed with matched impedance and guarded by grounded copper pours to minimize capacitive coupling from adjacent digital switching signals on the backplane connector. The front-face terminal block uses a filtered connector design with integrated RC snubbers on each channel input, attenuating high-frequency interference above 10 kHz before the signal reaches the ADC input buffer amplifier.

Input Signal Conditioning: Each channel incorporates a programmable gain instrumentation amplifier (PGIA) stage ahead of the ADC. When configured for 4–20 mA current input, an internal precision shunt resistor converts the loop current to a voltage signal, maintaining loop compliance voltage within the transmitter’s operating range. The PGIA gain is automatically adjusted by the firmware based on the configured input range, ensuring that the full ADC dynamic range is utilized regardless of whether the channel is set to ±10 V or 4–20 mA mode.

Open-Circuit and Over-Range Detection: The BMEAHI0812 implements hardware-level fault detection circuits that monitor each channel’s input for conditions outside the valid measurement range. For 4–20 mA channels, a current below approximately 3.6 mA triggers an open-circuit fault flag, which is propagated to the M580 CPU’s diagnostic buffer within one scan cycle. This allows the application program to execute fallback logic — such as switching to a redundant transmitter or holding the last valid value — without relying on software polling routines that could introduce detection latency.

System Integration Benefits

• Deterministic Scan Cycle Alignment: The BMEAHI0812 updates its channel data registers synchronously with the M580 CPU’s MAST task, ensuring that all 8 analog values are captured at the same logical instant within each control cycle. This eliminates inter-channel skew errors in multi-variable control loops where the ratio between two analog inputs — such as fuel flow and air flow in a combustion controller — must be computed from simultaneous measurements.
• Transparent Channel-Level Diagnostics: Each channel exposes a dedicated diagnostic word in the M580 I/O image table, reporting status flags for over-range, under-range, open-circuit, and module hardware fault conditions. These flags are directly readable by the application program in EcoStruxure Control Expert without requiring additional function blocks or communication overhead, enabling inline fault handling within the PID or sequencing logic.
• Zero-Configuration Rack Integration: Upon insertion into any X80 rack slot, the BMEAHI0812 is automatically detected and enumerated by the M580 CPU during the rack initialization sequence. The module’s identity, firmware version, and channel configuration are read from its internal EEPROM and reflected in the Control Expert hardware catalog without manual address assignment or DIP switch configuration.
• Per-Channel Input Range Flexibility: Each of the 8 channels is independently configurable for voltage or current input mode through the Control Expert hardware configuration editor. This allows a single module to simultaneously accept signals from 4–20 mA pressure transmitters, ±10 V position encoders, and 0–10 V temperature transducers within the same rack slot, reducing the total module count in mixed-signal applications.
• Hot-Swap Module Replacement: On M580 racks that support hot-swap operation, the BMEAHI0812 can be removed and reinserted under power without requiring a CPU stop or rack power cycle. The CPU detects the module removal, sets the affected channel values to their configured fallback state, and automatically re-initializes the module upon reinsertion — a capability that is critical for maintenance operations on continuously running process lines.
• Integration with EcoStruxure Operator Advisor: Analog values from the BMEAHI0812 are natively accessible via the M580’s embedded Ethernet port using Modbus TCP or EtherNet/IP protocols. This allows SCADA systems, OPC-UA servers, and IIoT data historians to subscribe to real-time process values without requiring additional communication modules or protocol converters in the rack.
• Firmware-Managed Digital Filtering: Each channel supports a configurable digital low-pass filter with selectable time constants, implemented in the module’s onboard firmware. The filter attenuates high-frequency process noise — such as pump cavitation signatures or electrical interference from variable-frequency drives — without introducing the phase lag associated with hardware RC filters, preserving the dynamic response of fast control loops.
• Consistent Behavior Across M580 CPU Variants: The BMEAHI0812 is compatible with all M580 CPU models from the entry-level BMEP581020 to the high-availability BMEH584040 redundant CPU pair. The module’s behavior, diagnostic reporting, and configuration interface are identical across all CPU variants, allowing engineering teams to develop and validate control logic on a smaller CPU and deploy to a larger redundant system without module-level changes.
