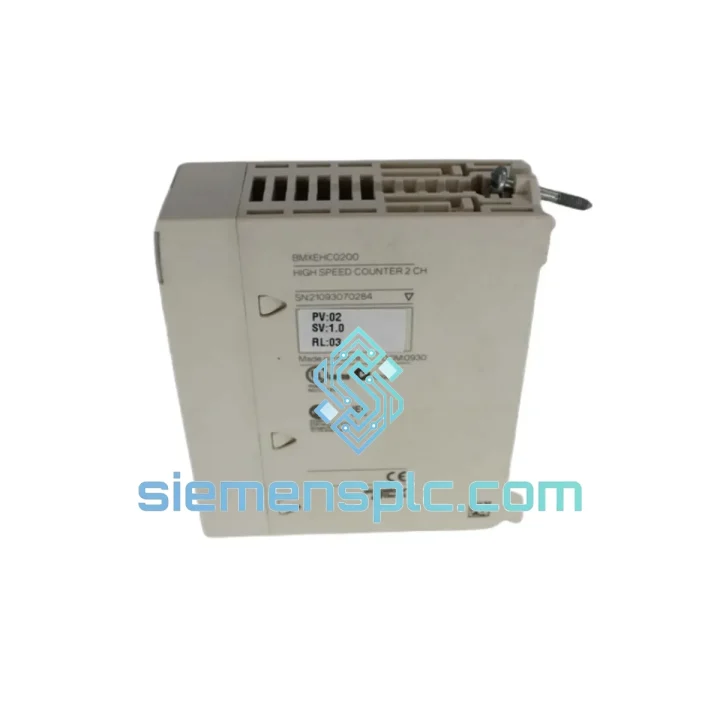

Schneider Electric BMXEHC0200 PLC Counter Module

BMXEHC0200 Down? Every Minute of Downtime Costs You — Get Back Online Fast

Your Modicon M340 line just tripped. The HMI is screaming fault codes. Your maintenance team has already pulled the rack and confirmed it: the BMXEHC0200 High-Speed Counter Module is dead. You’ve been here before — waiting days for a part while the production floor sits idle, burning through shift budgets and missing delivery windows. That ends here.

We stock the Schneider Electric BMXEHC0200 in Xiamen, China, ready for same-day dispatch via DHL Express or FedEx International Priority. Whether you’re running a packaging line in Germany, a CNC cell in Thailand, or a flow metering skid in Saudi Arabia — we get this module to your dock in 3–5 business days. No broker delays. No customs surprises. Just the part you need, when you need it.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of BMXEHC0200 swap-outs in the field, here are the failure patterns and replacement pitfalls that will save you hours:

Common Fault Codes & Root Causes

• %I1.x.ERR (Module Hardware Fault): The module has failed its internal self-test on power-up. Nine times out of ten this is a dead module — not a rack or CPU issue. Confirm by swapping to a known-good slot. If the fault follows the module, replace it.
• %I1.x.MOD (Module Missing / Not Recognized): Check backplane connector pins for corrosion or mechanical damage first. If the rack and CPU are healthy, this points to a failed module bus interface — replacement required.
• Counter Freeze at High Speed: Typically caused by encoder cable shielding failure or excessive cable length beyond 100 m. Before condemning the module, verify shield continuity and check for ground loops. If the encoder checks out, the module’s input comparator circuit has likely degraded.
• Erratic Count Values / Missed Pulses: Confirm encoder supply voltage is stable at 24 VDC ±10%. Voltage sag under load is a common culprit on aging panels. If power is clean, the module’s differential input stage is suspect.

Step-by-Step Hot-Swap Replacement Procedure

1. Export your project: Open EcoStruxure Control Expert, go to File → Save As and export the full project archive (.STA). Do this before touching hardware.
2. Power down the rack: The BMXEHC0200 is NOT hot-swappable. De-energize the entire M340 rack via the main power supply breaker. Verify with a multimeter — 24 VDC bus must read zero.
3. Document wiring: Photograph the 40-pin HE10 connector wiring before disconnecting. Label each wire if not already marked. The pinout is asymmetric — incorrect reconnection will damage the new module.
4. Seat the replacement module: Insert the BMXEHC0200 firmly until the locking tabs click. Partial seating causes intermittent bus faults that are notoriously difficult to diagnose.
5. Address assignment: The M340 platform uses automatic slot-based addressing. The replacement module will inherit the same %CH address as the failed unit — no DIP switch or manual address configuration required. Verify in Control Expert under the hardware configuration tree after power-up.
6. Firmware check: Navigate to PLC → Hardware Catalog in Control Expert. Confirm the firmware revision of the replacement module matches or exceeds the version in your project’s hardware configuration. A mismatch will generate a configuration error on first scan. If needed, update firmware via the USB port on the CPU using the Firmware Update Tool.
7. Functional validation: Run the encoder at low speed first. Monitor %IW values in the animation table. Confirm both channels increment correctly before returning to full production speed.

Reliability in Harsh Conditions

The BMXEHC0200 was not designed for a climate-controlled server room. It was built for the factory floor — and it shows in the design choices Schneider Electric made at the component level.

The module’s PCB is conformally coated to IEC 60068-2-30 standards, providing resistance against condensation cycles that occur when a panel door is opened in a humid tropical environment. In automotive stamping plants where coolant mist is a constant presence, this coating is the difference between a module that lasts three years and one that corrodes in six months.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-27 (shock), covering the mechanical stress profiles found in compressor skids, press lines, and mobile equipment. The HE10 connector system provides a positive mechanical lock that resists vibration-induced intermittent contact — a failure mode that plagues modules using standard D-sub connectors in high-vibration environments.

Thermal performance is engineered for sustained operation at 60°C ambient without derating. In practice, this means the module handles the thermal load of a sealed enclosure in a Middle Eastern summer without throttling or nuisance tripping. The internal power regulation circuit maintains stable 5 V logic supply across the full input voltage range of 24 VDC ±20%, absorbing the voltage spikes common in industrial DC distribution systems.

The differential RS422 encoder inputs provide 40 dB of common-mode noise rejection, making the BMXEHC0200 immune to the ground noise that corrupts single-ended encoder signals in electrically noisy environments like arc welding cells or variable frequency drive installations.
