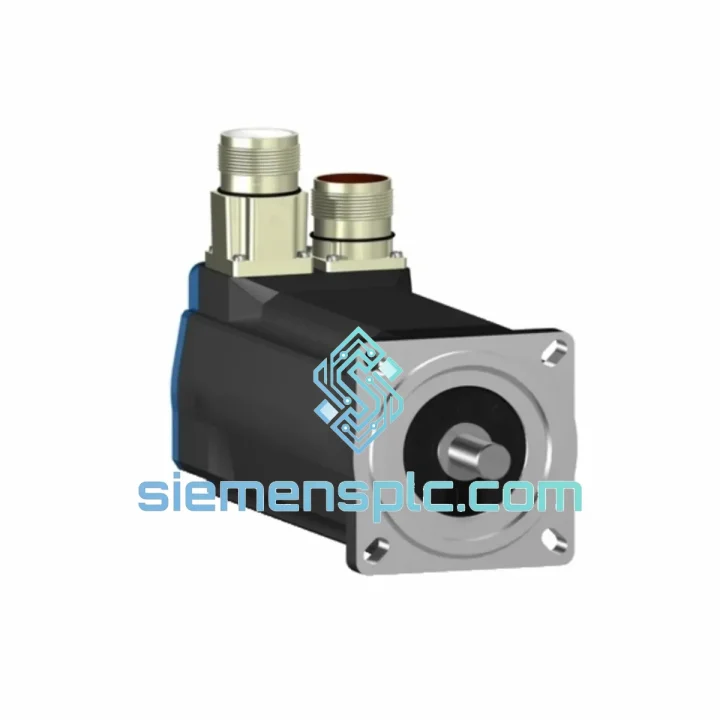

Schneider Electric BSH0703P12F1A AC Servo Motor

BSH0703P12F1A Down? Every Minute Costs You — Get It Back Online Today

Your line stopped. The Lexium drive is throwing a fault. The BSH0703P12F1A is dead — shaft locked, encoder signal gone, or winding shorted. You’ve already lost an hour. The maintenance team is standing by. Procurement is calling. You don’t need a lecture on servo motor theory right now. You need a confirmed-in-stock, verified-original BSH0703P12F1A on a plane to your facility before the next shift starts.

That’s exactly what we do. We stock Schneider Electric BSH series servo motors in Xiamen, China, with DHL and FedEx Express accounts ready to move. Same-day dispatch on confirmed orders before 15:00 CST. No minimum order. No waiting for a distributor to check their warehouse. One call, one part, back in production.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure modes on the BSH0703P12F1A:

1. Encoder signal loss (Drive fault: ENC_LOSS or similar)
This is the most frequent field failure on BSH070 frame motors. The incremental encoder on the P12 variant uses a 2500 ppr quadrature output. Before condemning the motor, check the VW3M encoder cable — specifically the D-sub connector at the drive end. Corrosion on pins 5 and 9 (5V supply and GND) causes intermittent signal dropout that mimics encoder failure. Swap the cable first. If the fault persists with a known-good cable, the encoder disk is likely cracked or the optical sensor contaminated. At that point, the motor needs replacement — the encoder is not field-serviceable on this variant.

2. Winding insulation breakdown (Drive fault: MOTOR_SHORT or overcurrent on startup)
Typically caused by moisture ingress at the cable entry gland or sustained operation above rated duty cycle. Measure winding resistance phase-to-phase (should be balanced, typically 2–5 Ω range for this frame) and phase-to-ground (should be >1 MΩ at 500 VDC megger). Any phase-to-ground reading below 100 kΩ means the motor is condemned. Do not attempt to run it — you risk damaging the Lexium drive’s output stage.

3. Bearing failure (audible grinding, vibration spike on drive diagnostics)
The BSH070 frame uses sealed bearings. In high-cycle applications (>8,000 hours), bearing wear is expected. The drive’s vibration monitoring (if enabled in SoMove) will show a rising trend in the vibration index parameter before audible symptoms appear. If you’re seeing this on a motor under 3 years old, check the coupling alignment — misalignment is the primary accelerator of bearing wear on this frame size.

Replacement configuration checklist — do not skip these:

• Drive parameter backup first: Export the full parameter set from the Lexium drive via SoMove before disconnecting anything. The motor replacement will require you to re-run the auto-tuning sequence, and having the original parameters as a reference is critical for restoring performance.
• Encoder phasing: The BSH0703P12F1A uses a specific encoder phasing that the Lexium drive learns during commissioning. After fitting the replacement motor, run the drive’s auto-phasing routine (parameter sequence varies by Lexium model — refer to the drive’s commissioning guide). Skipping this step will result in incorrect commutation and the motor will either oscillate or trip immediately on enable.
• Torque constant verification: Confirm the replacement motor’s torque constant (Kt) matches the original. Even within the same part number, manufacturing tolerances exist. The Lexium drive’s current loop tuning is sensitive to Kt variation. Re-run the auto-tuning after installation.
• Cable re-use: If the original power and encoder cables are undamaged, they can be reused. Inspect the connector shells for cracking and the cable jacket for abrasion. Do not reuse cables that show any sign of insulation damage — the cost of a cable is trivial compared to a second motor failure.
• IP65 sealing: Ensure the cable entry glands are correctly torqued after reconnection. The BSH070 frame’s IP65 rating depends entirely on the gland seal integrity. A loose gland in a humid or washdown-adjacent environment will cause the next encoder failure within months.

Reliability in Harsh Conditions

The BSH0703P12F1A is not a laboratory instrument. It was designed for the factory floor — and the factory floor is not a clean room. Schneider Electric’s BSH series engineering targets continuous operation in environments that would destroy lesser motors.

The IP65 enclosure rating means the motor survives directed water jets from any angle — relevant in food processing, chemical dosing, and washdown-adjacent machine zones. The Class F winding insulation is rated to 155°C, providing substantial thermal headroom above the motor’s rated operating temperature. In practice, this means the motor tolerates sustained overload conditions — the kind that occur during machine jams, acceleration ramps on heavy loads, or inadequate ventilation in enclosed machine cabinets — without immediate winding degradation.

Vibration resistance is a core BSH series design criterion. The motor’s rotor is dynamically balanced to G2.5 grade, and the bearing preload is set for operation in environments with continuous background vibration — stamping presses, compressors, and heavy conveyor systems running nearby. Field data from BSH series deployments in automotive body shop environments (one of the harshest vibration profiles in manufacturing) consistently shows MTBF exceeding 40,000 hours under rated conditions.

Humidity is handled through the combination of IP65 sealing and the motor’s internal thermal cycling behavior. As the motor heats and cools through operating cycles, the sealed enclosure prevents moisture-laden air from being drawn in — a failure mode that plagues motors with inadequate sealing in coastal or high-humidity industrial environments. For installations in tropical climates or near cooling towers, this sealing integrity is not a nice-to-have — it is the difference between a 5-year motor life and a 6-month replacement cycle.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected cities in Asia, with direct DHL and FedEx Express hub access. This is not a coincidence. It is a deliberate operational choice that allows us to move parts to any major industrial city on the planet within 48–72 hours of order confirmation.

How it works:

• Order confirmed before 15:00 CST: Same-day dispatch. The part leaves Xiamen that evening on the first available DHL or FedEx Express flight.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared in parallel with packing. No delays at customs due to missing paperwork.
• HS code classification: The BSH0703P12F1A ships under HS 8501.52 (AC motors, multi-phase, 750W–75kW range). We pre-classify all shipments to prevent customs holds.
• Tracking: Full DHL/FedEx tracking number provided within 2 hours of dispatch. You can share this directly with your maintenance team and plant manager.
• Destination coverage: Germany, USA, Mexico, Brazil, India, South Korea, Japan, Australia, UAE, Saudi Arabia — we ship to all of them regularly. If your facility is in a non-standard destination, contact us and we will confirm the routing and transit time before you commit.
• Packaging: Anti-static inner wrap, foam-lined outer carton, moisture barrier bag. The motor arrives in the same condition it left our warehouse — regardless of how many hands it passes through in transit.

Downtime is not a logistics problem. It is a revenue problem. We treat it accordingly.
