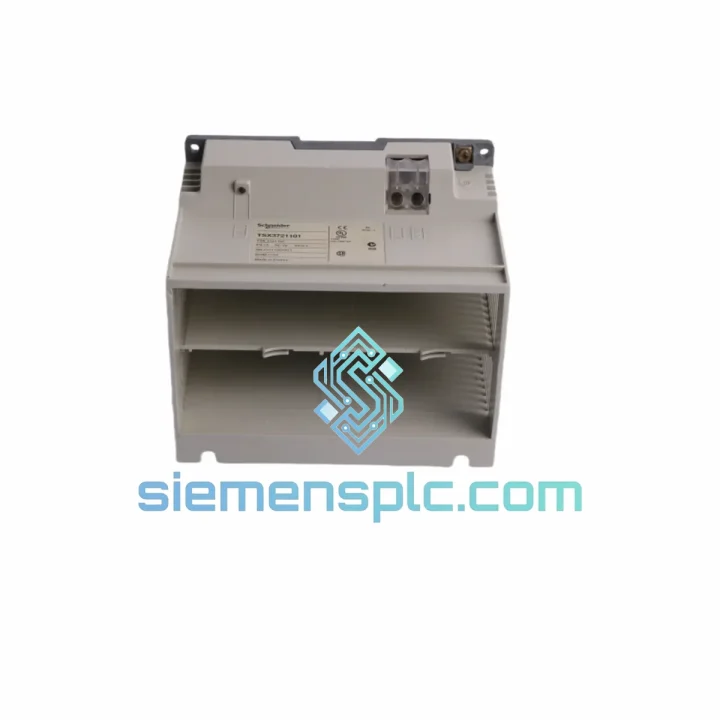

Schneider Electric TSX3721101 Programmable Logic Controller – Modicon TSX Micro

TSX3721101 – Schneider Electric Modicon TSX Micro Compact PLC Base Unit in Discrete Machine Control Architecture

The TSX3721101 is a self-contained programmable logic controller base unit from Schneider Electric’s Modicon TSX Micro family. It integrates the CPU, power supply interface, discrete I/O, and serial communication port into a single DIN-rail-mountable housing. Within a control loop, this unit functions as the deterministic execution engine: it scans field inputs at a fixed cycle, executes the stored IEC 61131-3 program, and drives output actuators—all within a bounded, repeatable scan time that is fundamental to reliable machine sequencing.

Unlike distributed I/O architectures that introduce fieldbus latency, the TSX3721101 places logic execution and I/O termination at the same physical node. This eliminates the round-trip communication delay between a remote CPU and I/O slave, making it the correct choice for applications where output response to input events must be deterministic within a single scan cycle—typically 1–10 ms depending on program size.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TSX3721101 is built on Schneider Electric’s established TSX Micro silicon platform, where the CPU core, I/O interface logic, and communication UART share a common internal bus arbitrated by the controller’s operating system. Understanding the hardware layers clarifies why this unit performs reliably in electrically noisy industrial environments.

Optical Isolation Architecture: All 12 discrete inputs pass through dedicated photocoupler stages before reaching the internal logic bus. Each photocoupler provides galvanic isolation rated to withstand common-mode transients typical of industrial field wiring—specifically the 1 kV / 1 μs burst pulses defined in IEC 61000-4-4 (EFT/Burst) and the 0.5 kJ surge levels of IEC 61000-4-5. This isolation barrier prevents ground loop currents and capacitively coupled noise from the field cable harness from corrupting the CPU’s internal data bus. The transistor output stage similarly incorporates isolation between the logic-level drive signal and the load-side switching transistor, protecting the CPU from inductive kickback generated by solenoid valves and relay coils.

EMC Filter Network on Inputs: Each input channel incorporates an RC filter network at the terminal block interface. This passive filter attenuates high-frequency noise (above approximately 1 kHz) before the signal reaches the photocoupler, providing a first line of defense against conducted RF interference from variable-frequency drives and switching power supplies operating in the same panel. The filter time constant is calibrated to maintain the specified 1.5 ms input response time while rejecting spurious transitions shorter than 0.5 ms—a common source of false input events in high-EMI environments.

Output Driver Protection: The NPN transistor output drivers incorporate internal clamping diodes across the collector-emitter junction. When an inductive load (solenoid, relay coil) is de-energized, the stored magnetic energy generates a reverse voltage spike. The clamp diode limits this spike to approximately 40 V above the supply rail, keeping the transistor within its safe operating area and eliminating the need for external freewheeling diodes on most standard 24 VDC loads. Electronic short-circuit protection with auto-reset prevents a shorted output from damaging the driver IC or tripping the panel supply.

Uni-Telway Bus Interface: The TER/AUX port implements Schneider Electric’s Uni-Telway protocol—a single-wire, multi-drop serial bus operating at up to 19,200 bps. The hardware UART is implemented in dedicated silicon separate from the CPU execution core, meaning communication interrupt handling does not consume CPU scan time. This architecture allows the controller to maintain deterministic scan performance even while actively exchanging data with a SCADA terminal or HMI panel over the serial link.

EEPROM Backup Mechanism: Program and data retention is handled by an EEPROM cartridge interface. Unlike battery-backed SRAM, EEPROM retains data indefinitely without a backup power source, eliminating the maintenance burden of periodic battery replacement. On power restoration, the CPU performs a checksum validation of the EEPROM contents before loading the program into execution RAM, ensuring that a corrupted backup is detected before the machine restarts.

System Integration Benefits

• Single-Node Determinism: Integrating CPU and I/O in one housing removes fieldbus round-trip latency from the control loop. Input-to-output response is bounded by the CPU scan cycle alone, typically 1–10 ms, enabling reliable sequencing of high-speed pneumatic and servo-adjacent applications.
• Uni-Telway Peer Networking: The native Uni-Telway port allows up to 8 TSX Micro units to share data on a single twisted-pair bus without external gateways or protocol converters, reducing BOM cost and eliminating additional failure points in distributed machine architectures.
• IEC 61131-3 Multi-Language Support: PL7 Pro supports Ladder Diagram, Instruction List, and Grafcet (SFC) within the same project. Engineers can implement sequential machine logic in SFC while embedding LD rungs for interlock conditions, improving program readability and reducing commissioning time.
• Modular Expansion Without CPU Replacement: Up to 3 TSX Micro extension modules (analog input/output, additional discrete I/O, specialty communication) attach directly to the base unit’s expansion connector. Scaling the I/O count does not require migrating to a larger CPU or re-wiring the backplane—the base unit’s program and addressing remain intact.
• Electronic Output Protection Reduces Downtime: Auto-reset short-circuit protection on all 8 transistor outputs means a wiring fault or shorted actuator does not require manual fuse replacement or panel shutdown. The output recovers automatically once the fault is cleared, minimizing unplanned downtime on continuous production lines.
• EEPROM Program Retention Eliminates Battery Maintenance: Non-volatile program storage removes the scheduled maintenance task of battery replacement that affects SRAM-backed controllers. In remote or unmanned installations, this reduces the risk of program loss due to an expired backup battery going undetected.
• Compact DIN-Rail Form Factor: At approximately 170 × 90 × 75 mm and 640 g, the TSX3721101 occupies minimal panel space. For OEM machine builders, this translates directly to smaller enclosure dimensions, lower sheet metal cost, and reduced panel assembly labor.
• Broad EMC Immunity Compliance: CE marking under the EMC Directive (EN 61000-6-2 industrial immunity) confirms the unit meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge), and IEC 61000-4-6 (Conducted RF) immunity levels. This compliance record reduces the engineering effort required to pass CE marking for the end machine.
• PL7 Software Ecosystem Continuity: PL7 Micro and PL7 Pro remain available from Schneider Electric’s software portal. Existing ladder programs developed for earlier TSX Micro variants are directly compatible, protecting the software investment of OEMs with established machine codebases.

Quality Assurance & Global Logistics

Every TSX3721101 unit dispatched from our Xiamen, China facility is sourced through verified industrial distribution channels with full traceability to authorized Schneider Electric supply chains. Pre-shipment inspection covers factory label integrity (part number, date code, lot number, country of origin), seal and packaging condition, and power-on functional verification where applicable. Units are packed in anti-static bags within foam-lined cartons to withstand the mechanical shock and vibration of international air freight.

Logistics from Xiamen are handled via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–7 business days to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East. For project orders requiring consolidated shipments, EXW Xiamen terms are available to accommodate freight forwarder arrangements. Export documentation—commercial invoice, packing list, and certificate of origin—is prepared for every shipment. FORM E (ASEAN preferential tariff) and EUR.1 movement certificates are available on request for applicable destinations.

All units carry a 12-month warranty against manufacturing defects from the date of dispatch. DOA (dead-on-arrival) units are replaced within 7 business days upon confirmation. Warranty claims are processed through [email protected] with supporting documentation (order reference, photos, fault description).
