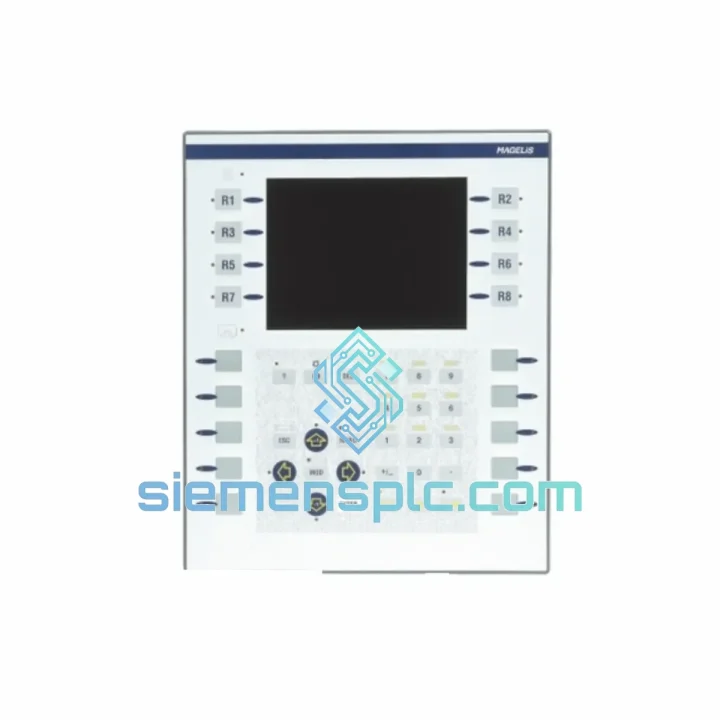

Schneider Electric XBTF024610 HMI Membrane Keypad

XBTF024610 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your Magelis HMI panel is dead. The operator can’t input commands. The line is stopped. You’ve already traced the fault to the membrane keypad — the XBTF024610 — and now you need one, fast. We stock it in Xiamen. We ship it today via DHL Express. While your competitors wait 4–6 weeks on backorder, your line is back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work, here’s what actually goes wrong with the XBTF024610 and what to watch for during swap-out:

Common Failure Modes:

• Dead key zones: Typically caused by delamination of the conductive silver ink layer under high-humidity cycling. If 2–3 adjacent keys stop responding simultaneously, the membrane trace has cracked — not the HMI controller board. Replace the keypad, not the panel.
• Intermittent key response: Usually a contaminated FFC connector. Before condemning the keypad, reseat the ribbon cable at both ends. Clean the ZIF socket contacts with IPA. If the fault persists after reseating, the membrane is failing.
• All keys unresponsive after panel restart: Check the ribbon cable seating first. The XBTF series ZIF connector is fragile — if the locking tab is cracked, the cable loses contact under vibration. Inspect under magnification before ordering a replacement.
• Ghosting / unintended key inputs: Moisture ingress behind the membrane. The IP65 rating applies to the front face only. If the panel gasket is compromised, condensation accumulates behind the keypad and shorts the key matrix. Replace the gasket and the keypad together.

Step-by-Step Replacement Procedure:

1. Power down the panel — isolate the 24VDC supply. Do not hot-swap the keypad; the XBTF controller does not support live membrane replacement.
2. Remove the panel from the enclosure door — release the panel clamps from the rear. Note the torque spec: 0.5 N·m on the mounting nuts. Over-torquing cracks the bezel.
3. Disconnect the FFC ribbon cable — lift the ZIF locking tab with a flat plastic spudger. Never pull the cable by force. Slide it straight out.
4. Peel the old membrane — the XBTF024610 is adhesive-backed. Work from one corner using a plastic card. Residual adhesive on the panel face must be cleaned with IPA before fitting the new membrane. Any contamination under the new keypad will cause air bubbles and premature delamination.
5. Fit the new XBTF024610 — align the key cutouts with the panel face precisely before pressing down. You have one shot; the adhesive bonds immediately on contact.
6. Reconnect the FFC cable — insert fully into the ZIF socket, then lock the tab. Tug gently to confirm seating.
7. Power up and run a key matrix test — in Vijeo Designer, use the diagnostic screen to verify all key inputs register correctly before reinstalling the panel in the enclosure.
8. No firmware update required — the XBTF024610 is a passive membrane; it carries no firmware. The HMI controller firmware does not need to be reflashed after keypad replacement.

Configuration Notes:

• No DIP switch settings on this component — it is a passive input device.
• If replacing on an XBTF panel that has been upgraded to a newer Vijeo Designer project version, verify the key mapping in your HMI project matches the physical key layout of the XBTF024610. Key function assignments are defined in software, not hardware.
• For panels running Modicon M340 or M580 communication, the keypad replacement has zero impact on PLC communication — the HMI controller handles all protocol stack operations independently of the membrane input layer.

Reliability in Harsh Conditions

The XBTF024610 is built for environments that destroy consumer-grade components. The multi-layer polyester construction resists cutting oils, hydraulic fluid splatter, and alkaline cleaning agents that are standard in machining and food processing environments. The silver-ink conductive traces are encapsulated between laminated layers — they don’t oxidize from ambient humidity the way PCB-mounted tactile switches do.

Vibration is the silent killer of membrane keypads. The XBTF024610’s adhesive mounting system distributes mechanical stress across the entire panel face rather than concentrating it at discrete mounting points. In press shop and compressor room installations where panel vibration is continuous, this design outlasts screw-mounted keypad assemblies by a significant margin.

Thermal cycling between cold startup and full operating temperature causes differential expansion between the membrane layers and the panel substrate. Schneider Electric’s material selection for the XBTF series accounts for this — the adhesive layer maintains bond integrity across the full 0°C to +55°C operating range without delamination. We’ve seen units pulled from 8-year-old installations in Southeast Asian coastal facilities — high humidity, salt air, 40°C ambient — still functioning without membrane separation.

The IP65 front-face rating means the keypad survives direct water jet cleaning, which is non-negotiable in food and beverage lines. The membrane surface also resists the aggressive alkaline foams used in CIP (clean-in-place) wash cycles, provided the panel gasket integrity is maintained.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct DHL Express and FedEx International Priority service. Here’s exactly how your order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express pickup at 16:00 CST daily.
• Transit to Southeast Asia (SG, MY, TH, VN): 2–3 business days door-to-door.
• Transit to Europe (DE, FR, IT, NL, PL): 3–5 business days via DHL Express Worldwide.
• Transit to North America (US, CA, MX): 3–4 business days via FedEx International Priority.
• Transit to Middle East (AE, SA, QA): 3–4 business days via DHL Express.
• Transit to Australia / New Zealand: 3–5 business days.

Every shipment includes a commercial invoice, packing list, and certificate of origin. For customers requiring customs clearance support, we provide HS code documentation (HS 8537.10) and can prepare DDP (Delivered Duty Paid) shipments to eliminate customs delays on your end. We’ve shipped to 60+ countries — customs paperwork is not a bottleneck here.

Tracking numbers are issued within 2 hours of dispatch. For urgent orders, WhatsApp us the tracking confirmation request and we’ll push it to you directly.
