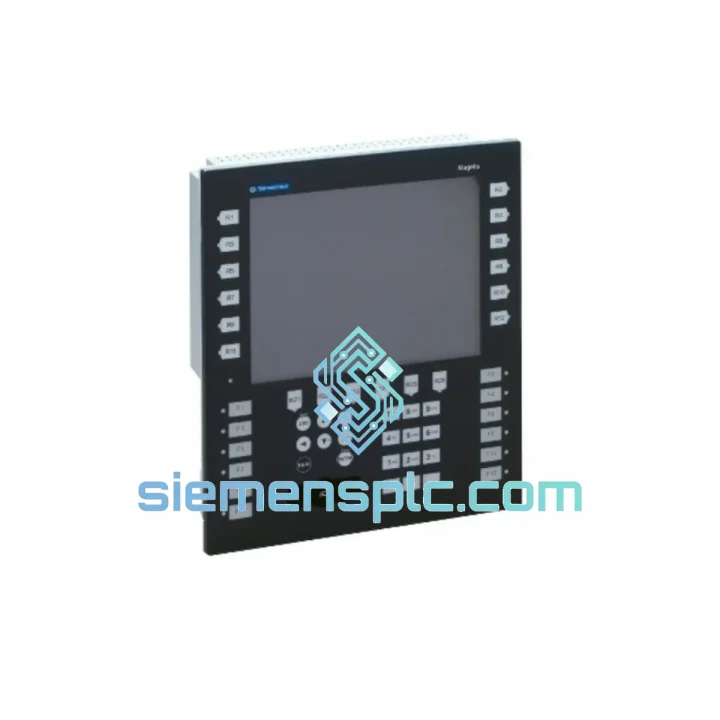

Schneider Electric XBTGK5330 HMI Panel – Magelis GK Series

XBTGK5330 — Magelis GK 10.4-Inch Color TFT HMI Panel in Industrial Control Architecture

The Schneider Electric XBTGK5330 is a panel-mount human-machine interface built around a 10.4-inch TFT color LCD with resistive touchscreen input, operating under Windows CE 6.0 on a 400 MHz ARM9 processor. Within a distributed control architecture, this unit occupies the operator interface layer — translating PLC register states, alarm conditions, and process variable trends into a structured visual environment that field operators can act upon in real time. Its role is not decorative; it is the primary feedback and command node between the automation layer and the human operator.

The XBTGK5330 communicates natively with Schneider Modicon PLCs via Uni-Telway and Modbus RTU/TCP, and extends to third-party controllers through EtherNet/IP and CANopen driver libraries available in Vijeo Designer. The Ethernet RJ45 port supports 10/100BASE-T, enabling integration into plant-level SCADA networks without additional gateway hardware. Serial ports (RS-232 and RS-485) provide backward compatibility with legacy field devices and barcode scanners. The USB host port handles recipe file transfers, data logging to removable media, and firmware updates without requiring a PC connection at the panel.

In terms of display performance, the 640 × 480 VGA resolution on a 10.4-inch diagonal produces a pixel density adequate for multi-layer process mimics, trend graphs, and alarm tables simultaneously on a single screen. The TFT backlight is rated for extended industrial duty cycles. Front-panel IP65 sealing prevents ingress of dust and low-pressure water jets, making the unit suitable for food processing, pharmaceutical, and general manufacturing environments where periodic washdown occurs.

Power input is 24 VDC ±20%, drawing ≤25 W under full load. The wide voltage tolerance accommodates fluctuations common in industrial panel power rails without requiring a dedicated regulated supply. Operating temperature range is 0 °C to +50 °C; storage is rated to −20 °C / +70 °C. These parameters align with IEC 60068-2 environmental test standards applicable to industrial control equipment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The XBTGK5330 is built on Schneider’s Magelis GK platform, which separates the display controller subsystem from the communication processor to prevent I/O polling latency from degrading screen refresh rates. The ARM9 core handles application logic, screen rendering, and communication stack execution concurrently through a preemptive multitasking scheduler within Windows CE 6.0. This architecture ensures that a high-frequency Modbus TCP polling cycle — for example, 100 ms scan intervals across 200 registers — does not introduce visible frame drops on animated process mimics.

The RS-485 port implements half-duplex differential signaling with hardware-level termination support, providing noise immunity in environments with significant electromagnetic interference from variable frequency drives (VFDs), contactors, and high-current bus bars. The differential voltage swing of ±1.5 V minimum at the receiver threshold, per EIA-485 specification, maintains signal integrity over cable runs up to 1,200 meters at 100 kbps — a practical consideration in large plant layouts where the HMI panel may be located far from the PLC rack.

The Ethernet subsystem supports ARP, ICMP, TCP, and UDP at the transport layer, with Modbus TCP and EtherNet/IP application-layer protocols handled by Vijeo Designer runtime drivers. The MAC address is factory-assigned and unique per unit, enabling deterministic network identification in managed switch environments with port-based VLAN segmentation — a common requirement in process industries where OT network isolation from IT infrastructure is mandated by IEC 62443 cybersecurity frameworks.

The 128 MB flash storage is partitioned between the OS image, the Vijeo Designer runtime, and the user application project. Application projects compiled in Vijeo Designer are transferred via USB or Ethernet and stored in a dedicated user partition, leaving the OS partition intact. This partition isolation means a corrupted application project cannot render the unit unbootable — the CE kernel will still load, and the unit can be recovered via USB without factory service intervention.

The resistive touchscreen uses a four-wire analog matrix. Calibration data is stored in non-volatile memory and survives power cycles. The resistive technology responds to any stylus or gloved finger, unlike capacitive panels that require bare skin or conductive gloves — a meaningful operational advantage in environments where operators wear standard industrial PPE.

System Integration Benefits

• Native Modicon PLC connectivity: Direct Uni-Telway and Modbus RTU/TCP drivers eliminate the need for protocol converters when integrating with M340, M580, Premium, and Quantum series PLCs, reducing wiring complexity and potential communication failure points.
• Multi-protocol Ethernet stack: Simultaneous Modbus TCP and EtherNet/IP support on a single Ethernet port allows the XBTGK5330 to communicate with both Schneider and Allen-Bradley PLCs on the same network segment without additional hardware.
• Vijeo Designer project portability: Projects developed for the XBTGK5330 can be migrated to other Magelis GK models with minimal rework, protecting engineering investment when upgrading panel sizes or display specifications.
• Alarm management with timestamping: The CE 6.0 real-time clock maintains alarm event logs with millisecond-resolution timestamps, enabling post-incident analysis and compliance reporting in regulated industries.
• Recipe management via USB: Structured recipe files (CSV format) can be loaded from USB media without network access, supporting offline parameter changes during planned maintenance windows without requiring a laptop or engineering workstation at the panel.
• Trend data logging to removable media: Process variable trends can be logged to USB flash drives in CSV format at configurable sampling intervals, providing a local data record independent of the SCADA historian — useful as a backup data source during network outages.
• IP65 front-panel sealing for washdown environments: The gasket-sealed front bezel meets IP65 requirements, allowing the panel to remain installed during routine equipment cleaning cycles in food, beverage, and pharmaceutical production areas without requiring protective covers.
• Wide supply voltage tolerance: The 24 VDC ±20% input range accommodates voltage sag events on industrial power rails without triggering brownout resets, maintaining continuous HMI availability during transient load conditions caused by large motor starts on the same distribution circuit.

Quality Assurance & Global Logistics

Every XBTGK5330 unit supplied by siemensplc.com is sourced as genuine Schneider Electric factory production. Units retain intact factory labels, original serial numbers traceable to Schneider Electric’s manufacturing records, and unmodified firmware. No refurbished, remanufactured, or third-party-cloned units are stocked or shipped. Each unit undergoes a pre-shipment inspection covering label integrity, connector condition, and power-on boot verification before packaging.

A 12-month warranty from the date of shipment covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are handled directly — no third-party service center routing. Replacement or refund decisions are made within 5 business days of receiving a defective unit return.

Logistics operations are based in Xiamen, China, with established export documentation workflows for commercial invoices, packing lists, and certificates of origin. Standard export classification is HS Code 8537.10 (boards, panels, consoles for electric control). Shipping carriers include DHL Express, FedEx International Priority, and UPS Worldwide Expedited for time-sensitive orders. Sea freight consolidation is available for bulk project orders. In-stock units ship within 1–3 business days. Sourced units ship within 7–15 business days depending on supply chain availability. Customs documentation is prepared to the import requirements of the destination country, reducing clearance delays.
