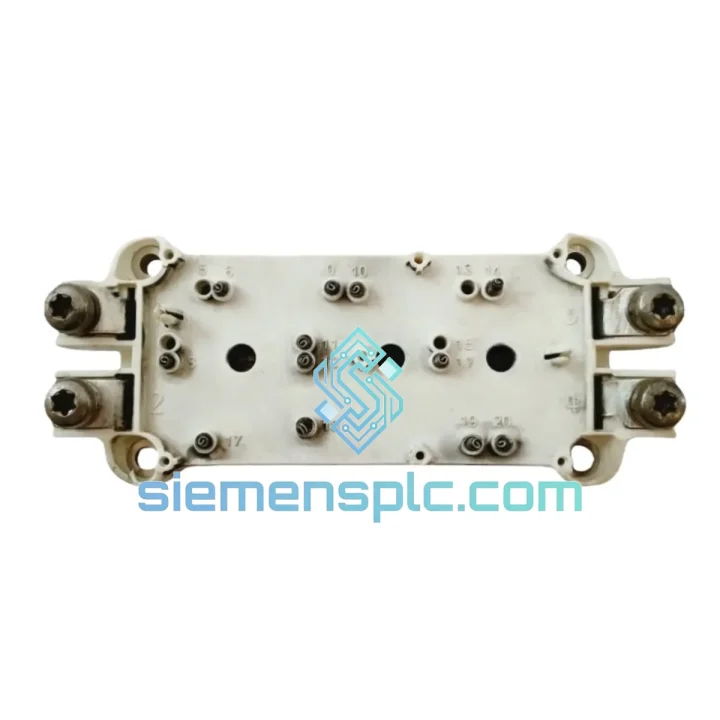

SEMIKRON SEMIX353GB126V1 IGBT Module – SEMiX Series

SEMIKRON SEMIX353GB126V1 — Dual IGBT Half-Bridge Module for High-Power Industrial Conversion Systems

The SEMIX353GB126V1 is a 1200 V / 353 A dual IGBT half-bridge power module manufactured by SEMIKRON on the SEMiX press-pack platform. It is engineered for continuous-duty operation in medium-to-high power converter stages — typically spanning 75 kW to 400 kW — where thermal cycling endurance, low stray inductance, and deterministic switching behavior are primary design constraints. The module integrates two IGBT switches with anti-parallel CAL4 soft-recovery freewheeling diodes in a single press-pack housing, forming one complete phase leg of a three-phase inverter or rectifier bridge.

The SEMiX platform was developed to address a specific gap in the power module market: the need for a standardized, bolt-down package that delivers press-pack-class thermal performance without the complexity of press-pack assembly tooling. The SEMIX353GB126V1 achieves this through a direct copper bonding (DCB) substrate with optimized copper layer thickness, reducing thermal resistance junction-to-case (R_th(j-c)) to ≤ 0.09 K/W per switch — a figure that enables sustained operation at rated current with forced-air or liquid cooling.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SEMIX353GB126V1 is built on a direct copper bonding (DCB) ceramic substrate — typically Al₂O₃ or AlN — which provides the electrical isolation layer between the silicon dice and the copper baseplate. The copper layer thickness on the DCB is optimized to balance thermal spreading resistance against thermomechanical stress during power cycling. This is the primary reason the SEMiX platform achieves >100,000 power cycles at ΔT_j = 60 K, a figure that distinguishes it from wire-bond modules using standard Al₂O₃ substrates.

EMC and Stray Inductance Architecture: The internal busbar geometry of the SEMIX353GB126V1 is designed to minimize commutation loop inductance (L_σ). Low L_σ directly reduces the voltage overshoot ΔV = L_σ × (dI/dt) during IGBT turn-off. In a 1200 V module switching at 353 A with a dI/dt of 1500 A/µs, even a 10 nH reduction in stray inductance eliminates 15 V of overshoot — reducing stress on the gate oxide and extending device lifetime. The press-pack footprint enforces a symmetric current path from DC+ to DC− through both switches, which also reduces differential-mode EMI emissions at the switching frequency and its harmonics.

CAL4 Freewheeling Diode Technology: The integrated CAL4 (Controlled Axial Lifetime 4th generation) diodes use a controlled carrier lifetime profile across the N-base region. This produces a soft, controlled reverse-recovery characteristic: the reverse recovery current (I_RR) rises to its peak and then decays at a rate (di/dt_RR) that is significantly lower than standard fast-recovery diodes. The practical consequence is a reduction in the high-frequency voltage spike generated at the complementary IGBT’s collector during diode commutation — a spike that is a primary source of conducted EMI and gate-drive ringing in hard-switching topologies.

Integrated NTC Thermistor: A negative temperature coefficient (NTC) thermistor is embedded in the module substrate, positioned to track baseplate temperature with a defined thermal offset to junction temperature. The NTC resistance-temperature characteristic (typically R₂₅ = 5 kΩ, B-constant ≈ 3375 K) allows the system controller to implement a closed-loop over-temperature protection (OTP) function without external temperature sensors. This eliminates a sensor mounting tolerance variable and reduces the thermal lag between actual T_j and the measured protection threshold.

Gate Drive Interface: The SEMIX353GB126V1 is electrically compatible with SEMIKRON’s SKYPER 32R and SKYPER 52R isolated gate driver cores. These drivers provide ±15 V / −8 V gate voltage rails, short-circuit protection via V_CE desaturation detection, and active clamping. The recommended gate resistor range (R_g,on = 2.2–4.7 Ω, R_g,off = 2.2–4.7 Ω) is calibrated to balance switching losses against dV/dt-induced common-mode currents in the motor cable — a critical tradeoff in long-cable VSD applications.

System Integration Benefits

• Standardized SEMiX Footprint: The bolt-down mechanical interface is dimensionally identical across the SEMiX current rating family (from 75 A to 600 A), enabling heatsink designs to be reused across multiple power levels. This reduces NRE cost for multi-platform drive designs.
• Deterministic Switching Latency: The IGBT’s well-characterized turn-on delay (t_d(on)) and turn-off delay (t_d(off)) — both specified in the datasheet at defined gate conditions — allow the system DSP or FPGA to implement dead-time compensation algorithms with sub-microsecond precision, improving output voltage linearity at low modulation indices.
• Thermal Transparency via NTC: The on-board NTC provides a direct thermal feedback path to the control loop, enabling dynamic current derating based on measured thermal state rather than worst-case static derating tables. This increases usable power headroom by 8–15% in typical ambient conditions.
• Reduced Snubber Requirement: Low package inductance (L_σ) reduces the energy that must be absorbed by DC bus snubber capacitors during turn-off. In practice, this allows a 20–30% reduction in snubber capacitance, lowering BOM cost and PCB area.
• Wide Operating Temperature Range: The −40°C to +150°C T_j range supports deployment in unheated outdoor enclosures (wind turbine nacelles, oil field pump drives) without requiring enclosure heating elements, reducing auxiliary power consumption.
• Soft-Recovery Diode EMI Compliance: CAL4 diodes reduce the amplitude of conducted EMI at the switching frequency and its harmonics, simplifying EMC filter design for CE marking compliance under EN 61800-3 (adjustable speed drives) and EN 55011 (industrial ISM equipment).
• Single-Module Phase Leg: Integrating both high-side and low-side switches in one package eliminates the inter-module wiring inductance that would exist in a discrete two-module phase leg. This reduces the commutation loop area and the associated radiated EMI.
• Plug-Compatible Gate Drive Ecosystem: SKYPER driver compatibility means the gate drive PCB design, isolation transformer, and protection logic can be standardized across all SEMiX-based platforms, reducing firmware and hardware variants in multi-product drive families.

Quality Assurance & Global Logistics

Every SEMIX353GB126V1 unit supplied by siemensplc.com is sourced from SEMIKRON’s authorized distribution network. Each module carries the original manufacturer label with full date code and lot number traceability, enabling backward tracking to the production batch and wafer lot. Prior to dispatch from our Xiamen warehouse, each unit undergoes a structured incoming inspection protocol: 100% visual examination of the baseplate, terminal surfaces, and housing integrity, followed by functional electrical verification of V_CE(sat) and off-state leakage current against the published datasheet limits.

Packaging follows anti-static handling requirements: each module is placed in a conductive foam tray, sealed in a moisture barrier bag with a humidity indicator card (HIC), and packed in a rigid outer carton with foam corner protection. This packaging specification meets IPC/JEDEC J-STD-033 moisture sensitivity handling guidelines for power semiconductor modules.

Logistics from Xiamen, China to global destinations is executed via DHL Express and FedEx International Priority, with typical transit times of 3–5 business days to Europe and North America, and 2–4 business days to Southeast Asia. Full export documentation is provided with every shipment: commercial invoice, packing list, certificate of origin (COO), and where required, an export control classification number (ECCN) declaration. For orders requiring air freight consolidation or sea freight for large quantities, dedicated logistics coordination is available upon request.

All units are covered by a 12-month warranty against manufacturing defects from the date of shipment. Warranty claims are processed with a target response time of 48 business hours. Technical support for gate drive design, thermal management, and system integration questions is available directly from our engineering team.
