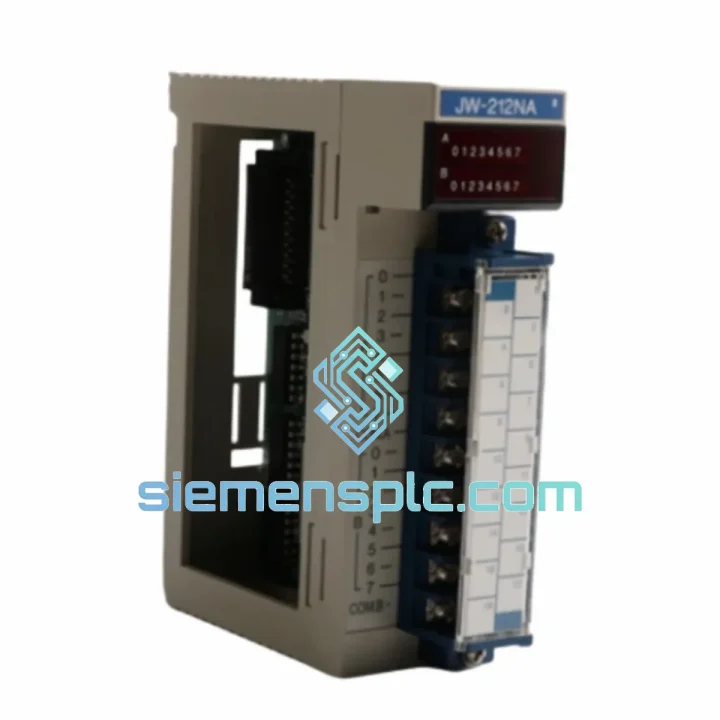

SHARP JW-212NA DC Input Module – JW Series PLC

SHARP JW-212NA: Discrete Input Signal Acquisition in JW Series Control Architecture

Within a JW Series PLC control loop, the integrity of the input acquisition layer determines the reliability of every downstream logic decision. The JW-212NA is a 12-point DC digital input module engineered specifically for the SHARP JW Series backplane architecture. It serves as the primary interface between field-level discrete signal sources — inductive proximity switches, photoelectric sensors, mechanical limit contacts, and relay dry contacts — and the CPU’s data memory. Every scan cycle, the CPU polls the JW-212NA’s input register map; the accuracy and noise immunity of that data directly governs the determinism of the control output.

This module is not a generic I/O card. It is a platform-specific component whose electrical characteristics, backplane connector pinout, and register addressing are defined by SHARP’s JW Series hardware specification. Substituting a non-OEM equivalent risks scan-cycle timing anomalies, address mapping conflicts, and photocoupler threshold mismatches that may not surface immediately but will degrade system reliability over time. Procurement of a genuine JW-212NA from a verified source is the only defensible engineering decision for facilities operating JW Series control infrastructure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The JW-212NA’s input circuit architecture follows a three-stage signal conditioning path that is worth examining in detail, because it is precisely this design that determines the module’s suitability for high-noise industrial environments.

Stage 1 — Current-Limiting Resistor Network: Each of the 12 input channels is protected by a series resistor network at the terminal block entry point. At 24 VDC, this network limits channel current to approximately 7 mA, which is sufficient to drive the photocoupler LED into saturation while preventing thermal stress on the input circuit under sustained ON conditions. The 3.3 kΩ input impedance also acts as a first-order low-pass filter, attenuating high-frequency transients before they reach the optical stage.

Stage 2 — Photocoupler Optical Isolation: The core EMC protection mechanism is the photocoupler barrier between the field-side wiring and the JW backplane logic bus. The LED and phototransistor are physically separated by an optical gap rated to the module’s isolation voltage. This galvanic break eliminates conducted ground-loop currents — a common failure mode in large panel installations where field cable shields are grounded at multiple points, creating potential differences that inject noise into input circuits. The photocoupler also blocks electrostatic discharge (ESD) events and inductive kickback transients from relay coils wired in proximity to input cables.

Stage 3 — Backplane Logic Interface: On the CPU side of the photocoupler, the output signal is conditioned to JW backplane logic levels and latched into the module’s input register. The CPU reads this register during the input refresh phase of each scan cycle. Because the register is a static latch rather than a direct wire-through, the CPU is protected from metastability caused by signal transitions that occur mid-scan — a subtle but important architectural detail for applications with fast-switching sensors near the scan-cycle boundary.

Dual-Voltage Input Architecture: The JW-212NA accepts both 12 VDC and 24 VDC field signals on the same terminal block without hardware modification. The ON threshold of ≥10.2 VDC and OFF threshold of ≤3.0 VDC are set to accommodate the full tolerance band of both voltage levels, including the voltage drop across long cable runs. This eliminates the need for separate 12 V and 24 V input modules in mixed-voltage sensor installations, reducing rack slot consumption and BOM complexity.

NPN/PNP Sensor Compatibility: The module supports both current-sink (NPN) and current-source (PNP) sensor wiring by configuring the common terminal connection. This is a hardware-level flexibility that avoids the procurement of separate sink-only or source-only input modules when a panel contains sensors from multiple manufacturers with differing output transistor types — a common situation in retrofit projects where sensor brands are not standardised.

System Integration Benefits

• Zero-Configuration Backplane Addressing: The JW-212NA uses SHARP’s slot-based automatic I/O addressing scheme. The CPU assigns input register addresses based on physical slot position, eliminating manual DIP-switch configuration and the associated risk of address conflicts during module replacement or rack expansion.
• Deterministic Scan-Cycle Input Refresh: Input states are latched at the start of each CPU scan cycle and held stable throughout program execution. This prevents mid-scan input state changes from causing non-deterministic logic behaviour — a critical requirement in safety-adjacent interlocking applications.
• Galvanic Isolation Preserves CPU Integrity: The photocoupler barrier means that field-side wiring faults — including short circuits to ground, reversed polarity, or inductive transients — cannot propagate to the CPU backplane. This limits fault containment to the affected input channel rather than risking CPU module damage or system-wide shutdown.
• Removable Terminal Block Reduces Maintenance Downtime: The screw terminal block detaches from the module body without disturbing field wiring. During module replacement, the terminal block remains connected to field cables while the module is swapped, reducing rewiring time from hours to minutes and eliminating the risk of wiring errors during maintenance.
• Compact Slot Width Maximises Rack Density: The JW-212NA’s slim form factor allows maximum I/O point density per rack unit. In retrofit applications where the existing JW rack has limited available slots, this is a direct constraint on system expandability — a genuine JW-212NA maintains the original rack density specification.
• Dual-Voltage Flexibility Simplifies BOM: A single JW-212NA handles both 12 VDC and 24 VDC field signals, reducing the number of distinct module part numbers required in a panel BOM. This simplifies spare-parts inventory management and reduces the risk of stocking the wrong module variant.
• Diagnostic Transparency via CPU Status Flags: The JW Series CPU provides per-channel input status accessible via the programming tool’s online monitoring function. Engineers can verify individual channel ON/OFF states in real time without a separate field instrument, accelerating fault isolation during commissioning and troubleshooting.
• Long-Term Platform Continuity: Sourcing a genuine JW-212NA maintains full compatibility with existing JW Series CPU firmware, programming software (JW-50H, JW-100H, JW-300 series), and I/O configuration files. Non-OEM substitutes may introduce undocumented timing differences that invalidate existing system validation records.

Quality Assurance & Global Logistics

Genuine SHARP Components, Verified at Source: siemensplc.com procures JW-212NA modules exclusively through traceable industrial distribution channels. Each unit is subject to incoming inspection covering physical label authenticity, PCB condition, terminal block integrity, and date-code cross-reference against known-good reference units. Counterfeit screening is applied as a standard step for all SHARP JW Series modules.

12-Month Warranty: Every JW-212NA shipped by siemensplc.com carries a 12-month warranty from the date of shipment. Warranty coverage includes manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly by our technical team with replacement dispatch prioritised for production-critical applications.

Export Compliance: All shipments are processed through Xiamen Customs with full commercial documentation: commercial invoice, packing list, CE/RoHS declaration, and HS Code 8538.90 export classification. Country-of-origin certificates are available on request for import duty optimisation in destination markets.

Logistics from Xiamen, China: Xiamen is a designated free-trade port and one of China’s primary electronics export hubs, with direct freight connections to major industrial markets across Southeast Asia, the Middle East, Europe, and the Americas. In-stock JW-212NA units ship within 3–5 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited — buyer’s choice. Tracking numbers are provided within 24 hours of dispatch. For time-critical production downtime situations, same-day dispatch is available on confirmed orders received before 14:00 CST.

Multi-Currency Payment: Transactions are supported in USD, EUR, HKD, and CNY via T/T bank transfer, PayPal, and major credit cards. Formal proforma invoices are issued for all orders to facilitate corporate procurement approval workflows.
