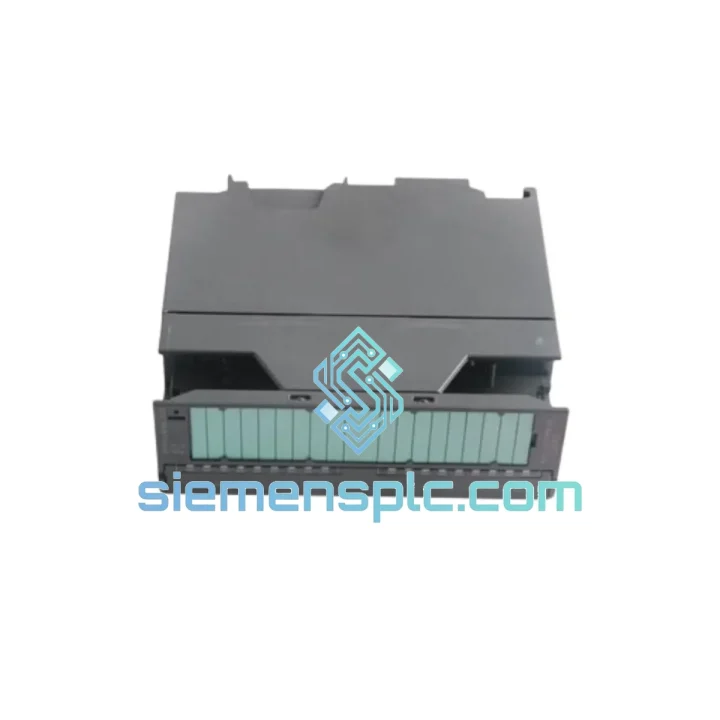

SIEMENS 15377-4FM PLC Circuit Board

SIEMENS 15377-4FM Industrial Circuit Board: Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. Whether it’s a tripped protection circuit, a corrupted firmware state, or a board that simply won’t initialize after a power surge — the SIEMENS 15377-4FM is the module you need on your bench today, not next week. We stock it. We ship it. We’ve done this hundreds of times for plants that couldn’t afford to wait.

This is not a compatible substitute. Not a refurbished pull. This is a genuine SIEMENS 15377-4FM circuit board, sourced through verified industrial supply channels, inspected before it leaves our warehouse in Xiamen, and packed for the rigors of international freight. If your maintenance team is standing by waiting for a part, this is the call you make.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 15377-4FM in the field is straightforward if you follow the sequence. Skip a step and you’ll be back on the phone with your controls engineer at 2 AM.

Common failure signatures for this board:

• SF/BF LED solid red on rack: The board has lost communication with the CPU or backplane. Before condemning the board, check the backplane connector pins for corrosion or bent contacts — this is the #1 misdiagnosis on this module.
• Intermittent I/O dropout under load: Capacitor aging on the power regulation section. If the unit is more than 8 years in service, treat it as end-of-life regardless of visual condition.
• Module not recognized after power cycle: Firmware mismatch or corrupted EEPROM. A replacement board will resolve this; do not attempt EEPROM reflash in the field without a programmer and the exact firmware revision file.
• Overtemperature fault logged in diagnostics: Check rack ventilation first. If airflow is adequate, the board’s thermal protection circuit may have degraded — replacement is the correct action.

Step-by-step hot-swap procedure (where rack supports it):

1. Confirm the slot is in a safe state — inhibit the channel outputs via STEP 7 / TIA Portal before physical removal if the rack does not support true hot-swap.
2. Ground yourself. ESD damage to this board is permanent and non-warranty.
3. Extract the module using the ejector levers — do not pull by the faceplate handle alone.
4. Insert the replacement 15377-4FM, seating it firmly until both ejector clips engage.
5. Power the rack. The module will perform its self-test sequence (typically 5–15 seconds). Watch the SF LED — it should extinguish within 20 seconds.
6. Verify the module address via the DIP switch or software addressing depending on your rack generation. Mismatched addressing is the second most common cause of post-swap faults.
7. Force a diagnostic read from the CPU and confirm no residual fault entries. Clear the fault buffer only after confirming clean status.
8. Document the swap: date, serial number of removed unit, serial number of installed unit. Your next auditor will thank you.

Reliability in Harsh Conditions

Industrial environments don’t care about your maintenance schedule. The 15377-4FM is engineered to operate where most electronics would fail — and that’s not marketing language, it’s the design specification.

The board’s PCB substrate and conformal coating are rated for continuous operation in environments with relative humidity up to 95% non-condensing. In coastal chemical plants and offshore platforms where salt-laden air accelerates corrosion on unprotected boards, the SIEMENS-grade coating on this module provides a meaningful service life advantage over generic alternatives.

Vibration tolerance is specified to IEC 60068-2-6 standards — the same test profile used for railway and heavy machinery applications. If your plant floor has a press, a compressor, or a conveyor running nearby, this board is built to handle the mechanical stress without solder joint fatigue over time.

Operating temperature range covers -25°C to +70°C ambient, which means it will function correctly in unheated outdoor enclosures in northern climates and in the hot aisle of a poorly ventilated control room in summer. The onboard thermal management circuit actively monitors junction temperatures and will log a diagnostic warning before any thermal shutdown occurs — giving your SCADA system advance notice rather than a hard trip.

Storage temperature tolerance extends to +85°C, which matters for spare parts kept in warehouse environments without climate control. A board stored correctly in its anti-static packaging will be fully functional when you need it, even after years on the shelf.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It means your part moves faster from our shelf to your dock than from most European or North American distributors.

Standard express routing:

• DHL Express Worldwide: Xiamen → major hubs (Hong Kong, Shanghai, Leipzig) → destination. Transit time: 2–4 business days to Europe, 3–5 days to Americas, 1–3 days to Southeast Asia.
• FedEx International Priority: Available for time-critical shipments. Door-to-door with proactive exception management. Recommended for shipments to the US, Canada, and Mexico.
• UPS Expedited: Cost-effective option for non-emergency restocking orders where 5–7 day transit is acceptable.

What happens after you confirm the order:

1. Payment confirmed → warehouse pick ticket generated within 2 hours during business hours.
2. Board inspected, photographed, anti-static bagged, and placed in rigid outer carton with foam insert.
3. Shipping label generated, AWB number sent to you via email within 4 hours of dispatch.
4. Real-time tracking link provided. Our team monitors the shipment and proactively contacts you if any customs delay is flagged.
5. Customs documentation package included: commercial invoice, packing list, HS code declaration, and certificate of origin. For EU imports, EORI-compatible documentation is standard.

For plant shutdowns or emergency maintenance windows, contact us directly on WhatsApp for priority processing outside standard business hours. We have handled weekend dispatches for customers in the middle of a planned outage — it’s part of what we do.
