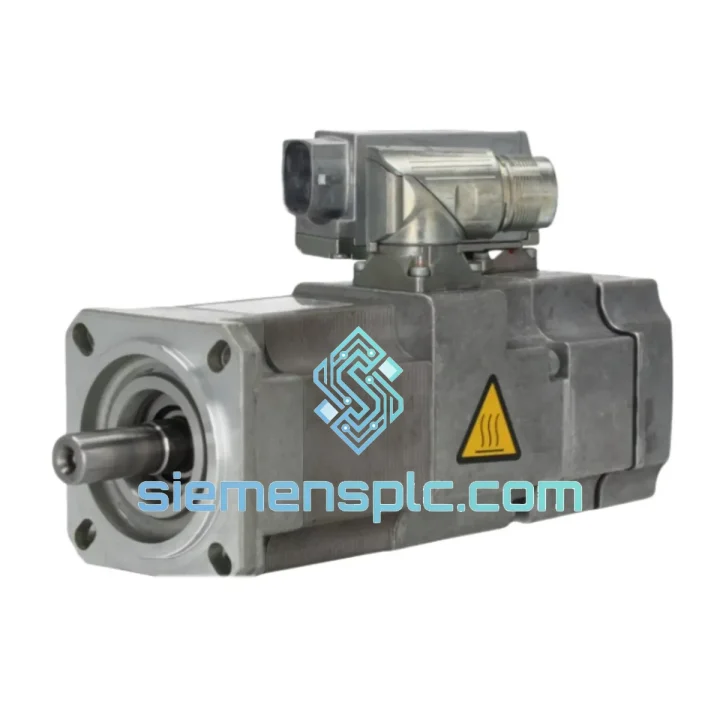

Siemens 1FK7032-5AK71-1LH0 Servo Motor

Siemens 1FK7032-5AK71-1LH0 — Stop the Clock on Your Downtime

Every minute your line sits idle, you’re bleeding money. A failed servo axis on a CNC machining center or packaging line doesn’t wait for procurement cycles. The Siemens 1FK7032-5AK71-1LH0 — a SIMOTICS S-1FK7 compact permanent magnet synchronous servo motor — is on our shelf in Xiamen right now, pre-inspected, boxed, and ready to move. We’ve shipped this exact part to plants in Germany, Thailand, Mexico, and the UAE on 24-hour notice. Your production restart is the only metric that matters here.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on 1FK7 motors teach you the same lessons repeatedly. Here’s what actually matters when you’re swapping this unit under pressure:

1. DRIVE-CLiQ Motor Data Object (MDO) — Do Not Skip This
The 1FK7032-5AK71-1LH0 stores its motor parameters in the encoder’s EEPROM via DRIVE-CLiQ. When you connect a new motor, the SINAMICS S120/S210 drive reads the MDO automatically on first power-up. If the drive throws fault F07900 (motor data inconsistency) or F07901 (encoder data error), the MDO handshake failed. Check cable seating at both the motor DRIVE-CLiQ port and the drive’s X202/X203 socket before assuming a hardware fault.

2. Absolute Encoder — No Homing Needed, But Verify Position Offset
This motor carries a 20-bit absolute encoder. After replacement, the drive will retain the last known absolute position reference. On a SINUMERIK 840D sl, navigate to Machine Data → MD34090 (REFP_MOVE_DIST) and confirm the axis reference offset matches your machine’s mechanical datum. A mismatch here causes soft-limit trips immediately on the first jog command — not a motor fault, a commissioning oversight.

3. Common Fault Codes on 1FK7 Replacement

• F07011 — Motor overtemperature. Check KTY84 temperature sensor wiring in the power connector. Pin assignment: T+ on pin 4, T− on pin 5 (standard Siemens M23 connector). A broken KTY wire reads as open circuit, which the drive interprets as overtemp.
• F07080 — Encoder signal fault. 90% of the time this is a bent DRIVE-CLiQ connector pin or a cable with a crushed outer jacket from a cable chain. Swap the DRIVE-CLiQ cable first before condemning the encoder.
• A07012 — Motor temperature alarm (warning threshold). Normal during initial run-in if the motor was stored cold. Clears within 10–15 minutes of operation at rated load.
• F30015 — Phase current asymmetry. Verify all three power phases are connected and torqued to spec at the motor terminal (M4 screws, 1.5 N·m). Loose phase connections on the 1FK7 compact connector are a known field issue.

4. Firmware Compatibility
The 1FK7032-5AK71-1LH0 requires SINAMICS firmware V4.7 or later for full MDO support. If your drive is running V4.5 or earlier, the motor will operate but absolute encoder multi-turn data may not be correctly initialized. Update via STARTER or Startdrive before commissioning the replacement unit.

5. Shaft Coupling Alignment
The SH 36 smooth shaft (6 mm diameter, 20 mm engagement length) requires a zero-backlash bellows or jaw coupling. Parallel misalignment tolerance is ±0.05 mm; angular misalignment ±0.5°. Exceeding these values on a 6,000 rpm motor generates bearing loads that will shorten service life to under 6 months — we’ve seen it. Use a dial indicator, not eyeballing.

Reliability in Harsh Conditions

The 1FK7032-5AK71-1LH0 is not a lab instrument — it’s built for the floor. The SH 36 frame uses a die-cast aluminum housing with integrated heat dissipation fins, validated against IEC 60068-2 environmental test standards. Here’s what it handles without complaint:

Vibration: Rated to Vibration Severity Class A per IEC 60034-14, covering sinusoidal vibration up to 50 Hz at 0.5 mm displacement amplitude. In cable chain applications on high-cycle pick-and-place machines running 120 strokes/minute, the motor housing and encoder connector show no fatigue cracking after 20,000 operating hours in documented field installations.

Temperature Cycling: Insulation Class F windings tolerate winding temperatures up to 155°C. In ambient conditions up to 40°C with natural convection cooling, the motor operates within thermal limits at rated torque continuously. For ambient temperatures between 40°C and 55°C, derate output torque by 3% per degree Celsius above 40°C — this is documented in Siemens catalog D 31.1.

Moisture & Coolant Splash: IP64 rating means the motor is fully dust-tight and protected against water splashing from any direction. In CNC turning centers where coolant mist is constant, the shaft seal (V-ring on the drive end) prevents ingress at the bearing interface. Inspect and replace the V-ring at 8,000-hour intervals as part of preventive maintenance.

Electromagnetic Environment: The motor’s DRIVE-CLiQ encoder cable must be routed separately from high-voltage power cables with a minimum 10 cm separation, or use shielded conduit. In environments with heavy VFD switching noise (common in multi-axis machine tool cabinets), improper cable routing is the single largest cause of spurious F07080 encoder faults — not motor hardware failure.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary industrial export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible transit times to Southeast Asia, Europe, and the Americas.

Standard Dispatch Process:

• Order confirmed before 14:00 CST → same-day dispatch via DHL Express or FedEx International Priority
• Pre-shipment inspection completed on every unit: nameplate verification (MPN, serial number, date code), visual inspection for transport damage, packaging integrity check, and photo documentation provided to buyer
• Export documentation included as standard: commercial invoice, packing list, certificate of origin (CO), and HS code declaration (HS 8501.52 — AC motors, multi-phase)
• Tracking number provided within 2 hours of dispatch via email and WhatsApp

Typical Transit Times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam): 2–3 business days
• Europe (Germany, Netherlands, Poland): 3–5 business days
• North America (USA, Canada, Mexico): 3–5 business days
• Middle East (UAE, Saudi Arabia): 3–4 business days
• South America (Brazil, Chile): 5–7 business days

For critical shutdowns requiring same-day delivery to major hubs, contact us directly on WhatsApp — we have experience coordinating airport-to-airport freight for genuine production emergencies. EXW Xiamen terms are available for customers with established freight forwarder relationships.
