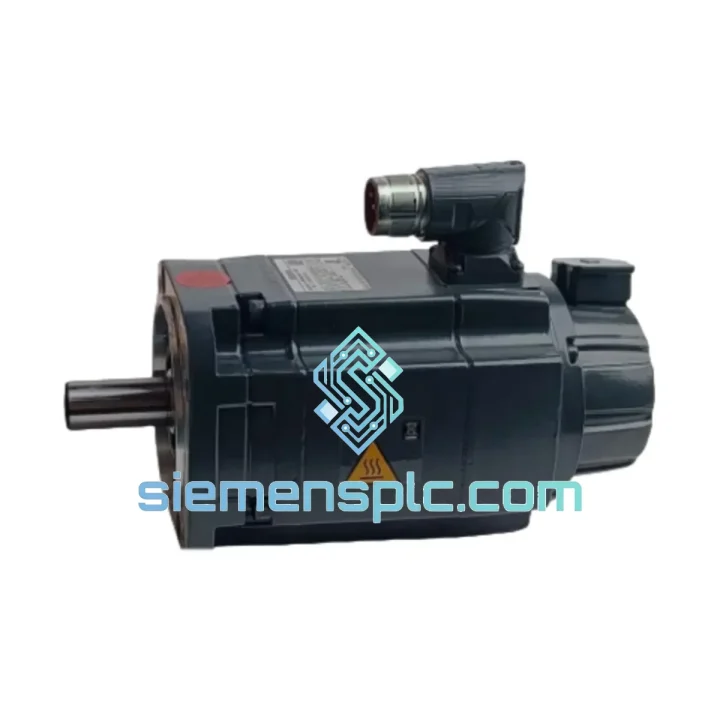

Siemens 1FK7042-2AF71-1RG0 Servo Motor

Siemens 1FK7042-2AF71-1RG0 — Every Hour of Downtime Costs You Money. We Ship Today.

Your line is down. The 1FK7042-2AF71-1RG0 has failed. You’ve already pulled the motor, confirmed the fault, and now you need a replacement on-site before the next shift — not in three weeks. That’s exactly the scenario we built this operation for. We stock the Siemens 1FK7042-2AF71-1RG0 SIMOTICS S compact servo motor in Xiamen and dispatch same-day via DHL Express or FedEx International Priority. No waiting on factory lead times. No distributor runaround.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, these are the failure modes and swap pitfalls that actually bite engineers on the 1FK7042-2AF71-1RG0:

Common Fault Codes & Root Causes

• F07900 / F07901 (Encoder fault): Nine times out of ten this is a damaged encoder cable, not the motor itself. Before condemning the motor, swap the encoder cable and check the shield connection at the drive end. If the fault clears, you saved yourself a motor replacement.
• F07011 (Motor overtemperature): The 1FK7042 is self-cooled — it relies on ambient airflow. If the motor is buried in a cabinet with poor ventilation or the duty cycle has crept up over time, thermal shutdown is the result. Check the KTY84 temperature sensor resistance (should read ~1 kΩ at 25 °C). A shorted sensor reads near zero and triggers false overtemp faults.
• A07012 (Motor temperature sensor wire break): Inspect the power connector (Bayonet or M23) for pin corrosion or a cracked cable jacket near the motor exit point — this is the highest-stress flex point on the harness.
• F07086 (Speed controller output limited): Often caused by a mechanical binding issue rather than a motor fault. Decouple the load and jog the axis before replacing the motor.
• Bearing noise / vibration: The 1FK7042 uses sealed deep-groove ball bearings. Grease life is finite. If you hear a high-frequency whine at speed, the bearings are the likely culprit. At this point, motor replacement is more cost-effective than field bearing replacement.

Replacement Procedure — Key Steps

• Step 1 — Save the drive parameters first. Before disconnecting anything, upload the complete drive dataset from SINAMICS S120 / V90 using STARTER or Startdrive. Store it on a USB. If the new motor has a different encoder serial number, the drive will need re-commissioning — having the parameter backup cuts that time from hours to minutes.
• Step 2 — Note the absolute encoder position offset. The -1RG0 suffix means absolute encoder. After swapping the motor, the zero-point offset (p2507 / p2508 on S120) will be lost. You must re-reference the axis. Have the machine’s reference position documented before you pull the old motor.
• Step 3 — Check the motor data set (MDS). On SINAMICS S120, verify that the motor data set matches the 1FK7042-2AF71-1RG0 order number. If the drive was previously configured for a different motor variant, load the correct motor data from the Siemens motor database (p0301 order number entry) or use the SIZER-calculated parameters.
• Step 4 — Torque the power connector properly. The Bayonet connector on the 1FK7 series is notorious for intermittent contact if not fully seated and locked. Rotate until you feel the positive click. A loose power connector causes random F07900 faults that are nearly impossible to diagnose remotely.
• Step 5 — Run a motor identification (p1910 = 1) after installation. This takes 2–3 minutes and lets the drive auto-tune the current controller to the actual motor. Skip this step and you risk oscillation or reduced dynamic performance.

Encoder Compatibility Note: The -1RG0 encoder is a Hiperface absolute encoder. It is NOT interchangeable with -1AA0 (incremental TTL) or -1EG0 (DRIVE-CLiQ) variants at the drive level without parameter changes. Confirm your drive’s encoder interface card (SMC20 for Hiperface, SMC30 for incremental) before ordering.

Reliability in Harsh Conditions

The SIMOTICS S-1FK7 series was engineered for exactly the environments where motors fail most often. The 1FK7042-2AF71-1RG0 carries IP64 protection — fully dust-tight and splash-proof from any direction. The stator winding uses Class F insulation (155 °C thermal rating) with a conservative Class B temperature rise, giving you a built-in thermal margin that extends winding life in high-ambient installations.

The rotor is dynamically balanced to Grade G2.5, which means vibration-induced bearing fatigue is minimized even in applications with mechanical resonance. The motor housing is die-cast aluminum alloy — lightweight but rigid enough to maintain shaft alignment under the cyclic radial loads common in cam-driven packaging machinery and CNC tool changers.

In high-humidity environments (coastal plants, food processing areas), the IP64 rating keeps condensation off the windings during thermal cycling. For applications requiring full immersion protection, the 1FK7 series is also available in IP67 variants — but for the vast majority of machine-tool and packaging installations, IP64 is the correct and sufficient specification.

Siemens validates the 1FK7 series against IEC 60068 environmental stress tests: sinusoidal vibration to 10–200 Hz at 1 g, shock to 15 g / 11 ms, and thermal cycling from -15 °C to +40 °C operating ambient. These are not marketing numbers — they are the same test conditions used to qualify motors for automotive body-shop welding robots and offshore platform control systems.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport (XMN), one of China’s primary cargo hubs with direct freighter connections to Frankfurt, Amsterdam, Chicago, and Dubai. That geography matters when your line is down.

Standard dispatch process:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority.
• Order confirmed after 14:00 CST: Next business day dispatch, with tracking number issued within 2 hours of pickup.
• Transit times (typical): Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 2–3 days | Australia 3–4 days.
• Documentation: Commercial invoice, packing list, and certificate of conformance issued with every shipment. CITES / dual-use export declarations handled in-house — no delays at customs.
• Tracking: Real-time tracking link sent via email and WhatsApp immediately after carrier pickup.

For critical shutdowns requiring airport-to-airport freight or hand-carry courier, contact us directly on WhatsApp. We have handled same-day hand-carry deliveries to Singapore, Bangkok, and Dubai for customers facing production losses exceeding USD 50,000 per day. We understand the math.
