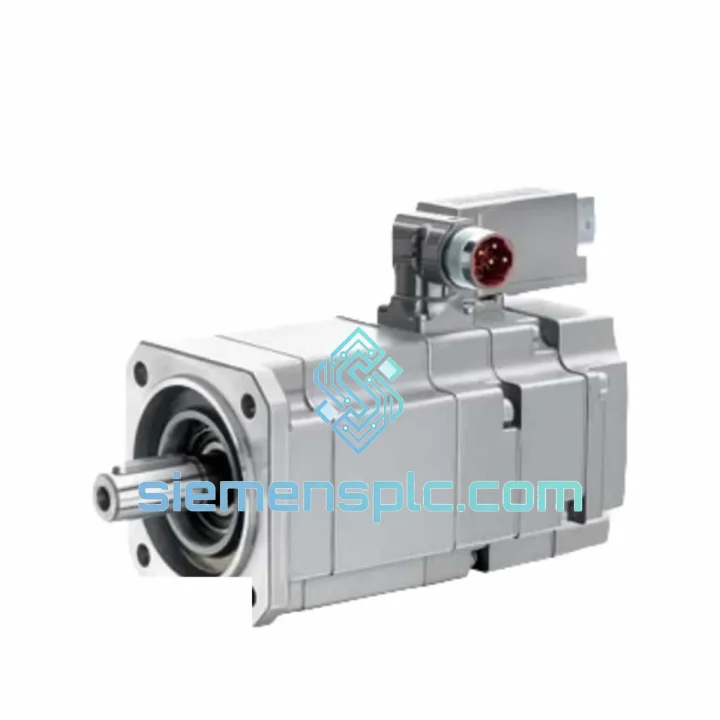

Siemens 1FT6086-8AF71-1EG2 Servo Motor

1FT6086-8AF71-1EG2 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your line stopped. The SIEMENS 1FT6086-8AF71-1EG2 servo motor has faulted, and your SINUMERIK controller is throwing alarms. Production is frozen. You’ve already called your local distributor — lead time is 6 weeks. That’s not an option.

We stock the SIEMENS 1FT6086-8AF71-1EG2 in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and arrive at your facility within 3–5 business days. For critical shutdowns, we offer same-day dispatch on confirmed orders placed before 14:00 CST.

This is a 100% original SIEMENS unit from the SIMOTICS S 1FT6 series — not a remanufactured substitute, not a compatible replacement. The exact part your machine was built around.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here’s what actually goes wrong with the 1FT6086-8AF71-1EG2 — and what to check before you pull the motor:

Fault F07900 / F07901 — Encoder Signal Loss: Nine times out of ten this is the encoder cable, not the motor. Before condemning the 1FT6086, swap the 6FX encoder cable first. Check the D-sub connector pins for fretting corrosion, especially on machines with high-cycle vibration. If the fault clears, you’ve saved yourself a motor replacement.

Fault A07012 — Motor Overtemperature Warning: The 1FT6086 runs fanless. If ambient temperature in the cabinet or machine enclosure has crept up — dirty heat exchangers, failed cabinet fans, blocked airflow — the motor will derate and eventually fault. Verify the KTY84 temperature sensor circuit in the SINAMICS drive parameters (p0600, p0601) before assuming motor failure.

Fault F07011 — Motor Stall / Overcurrent: Check mechanical binding first. A seized bearing or contaminated ballscrew will pull the motor into current limit. Disconnect the coupling and jog the axis by hand. If it moves freely, the motor windings are suspect — measure phase-to-phase resistance and insulation resistance to ground (should be >1 MΩ at 500 VDC megger).

Replacement Configuration Checklist — Do Not Skip These Steps:

• Motor Data Set (MDS): The SINAMICS S120 stores motor parameters in the drive, not the motor. After swapping the 1FT6086-8AF71-1EG2, navigate to p0300 and confirm the motor type is correctly identified. Run the motor identification routine (p1910 = 1) before first motion.
• Encoder Offset (p0431): The incremental encoder on the -1EG2 variant requires a reference run (homing) after every power cycle. Verify your machine’s homing sequence is intact. If the machine uses a BERO or cam switch for reference, confirm it’s functional before releasing the axis to production.
• Holding Brake (if equipped): The -8AF71 designation in this part number indicates a specific winding and brake configuration. Confirm brake release voltage (typically 24 VDC) and verify the brake control output in the drive (p1215) is correctly parameterized. A dragging brake will destroy a new motor in hours.
• Thermal Model Reset: After motor replacement, reset the drive’s thermal model via p0640 (current limit) and p0611 (motor thermal time constant). Failure to do this can cause nuisance overtemperature faults on a perfectly healthy motor.
• DRIVE-CLiQ vs. Resolver/Encoder: The 1FT6086-8AF71-1EG2 uses a conventional incremental encoder interface, not DRIVE-CLiQ. Ensure your SMC20 or SMC30 encoder module is correctly assigned in the drive topology. Do not attempt to connect this motor directly to a DRIVE-CLiQ port.

First Motion Protocol: After installation, run the axis at 10% speed in both directions for 5 minutes before returning to full production speed. Monitor motor temperature (r0035) and actual current (r0068) in the drive. Any anomaly at low speed will be catastrophic at full production rate.

Reliability in Harsh Conditions

The SIMOTICS S 1FT6 series was not designed for laboratory conditions. It was built for the factory floor — and the 1FT6086-8AF71-1EG2 reflects that engineering philosophy in every design decision.

The IP64-rated housing keeps out dust and coolant splash that would kill a lesser motor within weeks in a machining center environment. The Class F insulation system tolerates sustained winding temperatures that would degrade standard Class B motors, giving you thermal headroom during peak production cycles. The flange-mount design eliminates the alignment sensitivity of foot-mount motors — critical when you’re doing a field swap under time pressure and don’t have a laser alignment tool on site.

Vibration resistance is built into the rotor balancing specification. The 1FT6 series rotors are dynamically balanced to Grade G2.5 per ISO 21940, which means the motor itself will not introduce resonance into your machine structure even at high speeds. In applications with significant mechanical shock — stamping presses, forging auxiliaries, heavy-duty gantries — this matters more than most engineers realize until they’ve replaced a competitor’s motor that shook itself apart in six months.

The fanless cooling design eliminates the single most common failure mode in servo motors deployed in contaminated environments: fan blade fouling and bearing seizure. In foundries, woodworking facilities, and food processing plants where airborne particulate is unavoidable, the 1FT6086’s natural convection cooling is not a compromise — it’s an advantage.

Every unit we ship has been stored in climate-controlled conditions with desiccant packaging. Encoder bearings are verified for smooth rotation. Shaft and flange surfaces are inspected for damage that would compromise coupling alignment. You’re not getting a motor that’s been sitting in an uncontrolled warehouse for three years.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct access to DHL, FedEx, and UPS international networks. This is not a drop-ship arrangement. Stock is physically on our shelves, inspected, and ready to pack.

Standard Express Timeline (DHL / FedEx International Priority):

• Southeast Asia (Vietnam, Thailand, Malaysia, Indonesia): 2–3 business days
• Europe (Germany, Italy, Spain, Poland, Turkey): 3–5 business days
• North America (USA, Canada, Mexico): 3–5 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• South Asia (India, Pakistan, Bangladesh): 3–4 business days
• South America (Brazil, Chile, Argentina): 5–7 business days

Every shipment includes a commercial invoice, packing list, and certificate of origin for customs clearance. For destinations requiring additional documentation — CE declarations, material safety data, or country-specific import certificates — contact us at the time of order and we will prepare the paperwork in parallel with packing.

We have handled emergency shipments to active production facilities across 60+ countries. We understand that your receiving dock, your customs broker, and your maintenance team are all waiting. We treat your urgency as our urgency.

For orders placed before 14:00 CST Monday–Friday, same-day dispatch is available on confirmed payment. Tracking numbers are provided within 2 hours of handover to the carrier.
