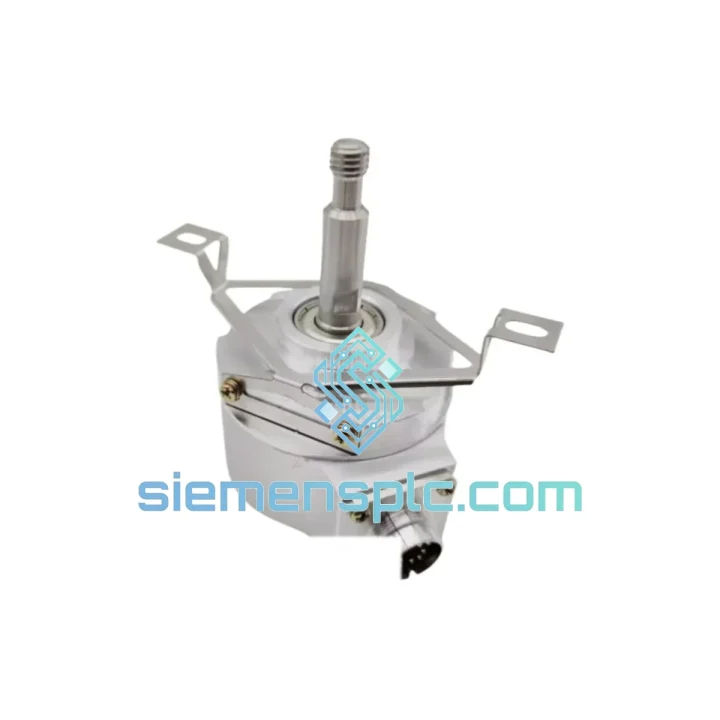

Siemens 1XP8001-1/1024 Incremental Encoder

Siemens 1XP8001-1/1024 — Stop the Clock on Your Downtime

Every minute your line sits idle costs real money. A failed encoder on a SIMOTICS motor doesn’t just halt one axis — it can cascade into a full production stoppage across your entire drive system. The Siemens 1XP8001-1/1024 is one of the most frequently replaced feedback components in SINAMICS-based servo and spindle applications, and we keep verified stock ready to ship from Xiamen within 24 hours of order confirmation. No lead-time games, no allocation queues — just the part you need, moving toward your dock.

We’ve handled emergency calls from automotive stamping lines, CNC machining centers, textile mills, and packaging OEMs. The pattern is always the same: the encoder fails, the drive throws a fault, and the maintenance team is scrambling for a part that the local distributor can’t deliver for two weeks. That’s the gap we fill. URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 1XP8001-1/1024 fails in predictable ways. Here’s what field experience actually looks like:

Fault Code F07412 / A07412 (SINAMICS S120): Encoder signal loss or wire break. Before condemning the encoder, check the 6FX cable shield continuity at both ends — a broken shield in a high-EMI environment mimics a dead encoder. If the cable checks out, swap the encoder. The fault clears on the next power cycle once the new unit is seated and the Z-pulse is detected on homing.

Fault Code F31117 (SMC20 — Encoder Evaluation): Typically triggered by a failed A or B channel inside the encoder disc assembly. Optical contamination from coolant ingress is the most common root cause on machines without proper shaft seal maintenance. When replacing, clean the motor NDE face with IPA before mounting — any residue on the flange face will cause micro-vibration that shortens the new encoder’s life.

Replacement Procedure (SIMOTICS NDE Mount):

• De-energize the drive and lock out the motor shaft. Confirm zero speed via the drive display before touching the encoder.
• Disconnect the encoder cable at the M23 connector. Do not pull by the cable — grip the connector body.
• Remove the three M4 mounting screws on the synchro flange. Note the orientation mark on the encoder housing relative to the motor terminal box — the replacement must go back in the same rotational position to preserve the Z-pulse reference.
• Slide the encoder off the taper shaft. If it’s seized due to fretting corrosion, use a puller — never hammer the housing.
• Inspect the taper shaft for scoring. Light scoring can be polished with 600-grit; deep scoring means the motor shaft needs attention before the new encoder goes on.
• Mount the new 1XP8001-1/1024, torque the flange screws to 2.5 Nm, reconnect the cable, and power up. Run a homing cycle immediately to re-establish the Z-pulse reference position.
• Verify P0410 (encoder monitoring threshold) in the drive — if it was relaxed to suppress the original fault, restore it to the default value after replacement.

Suffix Note (-1 vs -2): The /1 suffix denotes the radial cable exit variant. The /2 suffix uses an M23 connector. Electrically identical — confirm your cable termination before ordering to avoid a second delay.

Third-Party Drive Compatibility: For Fanuc, Yaskawa, or Mitsubishi drives, a TTL-to-differential line receiver may be required. The 1XP8001-1/1024 outputs RS-422 differential natively, which is directly compatible with most modern servo amplifiers. Confirm your drive’s encoder input specification against the 5V differential TTL standard before wiring.

Reliability in Harsh Conditions

The 1XP8001-1/1024 was not designed for a clean lab. It was designed for the floor. The IP65 housing seal keeps coolant mist, metalworking fluid aerosols, and fine particulate out of the optical assembly — the failure mode that kills most generic encoders within months on a CNC line. The IP64 shaft seal handles the dynamic interface where the shaft rotates through the housing, the point where cheaper encoders always leak first.

The operating temperature range of −20 °C to +85 °C covers cold-start conditions in unheated facilities during winter commissioning as well as the sustained heat load inside a motor enclosure running at full duty cycle. The differential RS-422 output architecture provides inherent common-mode noise rejection, which matters enormously in installations near large VFDs, welding cells, or induction heating equipment where ground loops and radiated EMI are constant threats to signal integrity.

The synchro flange mounting system distributes clamping force evenly around the encoder body, eliminating the stress concentrations that cause housing cracks in encoders mounted with asymmetric bracket systems. Combined with the taper shaft coupling, this gives the 1XP8001-1/1024 a mechanical robustness that holds up under the continuous low-amplitude vibration present in most production machinery — the kind of vibration that loosens set-screw couplings and fatigues solder joints in lesser units over time.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with daily DHL Express and FedEx International Priority departures. Here’s how a typical emergency order moves:

• Hour 0: You contact us via email or WhatsApp with your part number and delivery address.
• Hour 1–2: We confirm stock, issue a proforma invoice, and provide the DHL/FedEx rate for your destination. Payment via T/T, PayPal, or credit card.
• Hour 4–8: Payment confirmed, unit pulled from shelf, inspected, packed in anti-static foam with original documentation.
• Hour 24: Shipment booked and dropped at the carrier hub. Tracking number issued to you immediately.
• Day 2–4: Delivery to most destinations in Europe, North America, Southeast Asia, and the Middle East via DHL Express or FedEx International Priority.
• Day 5–7: Remote destinations including South America, Africa, and Pacific islands — still faster than waiting for local distributor stock replenishment.

All shipments include a commercial invoice with accurate HS code declaration (HS 9031.80) for smooth customs clearance. We have experience shipping to over 60 countries and can advise on import duty implications for your destination before you commit to the order. For high-value or multi-unit orders, we can arrange cargo insurance on request.
