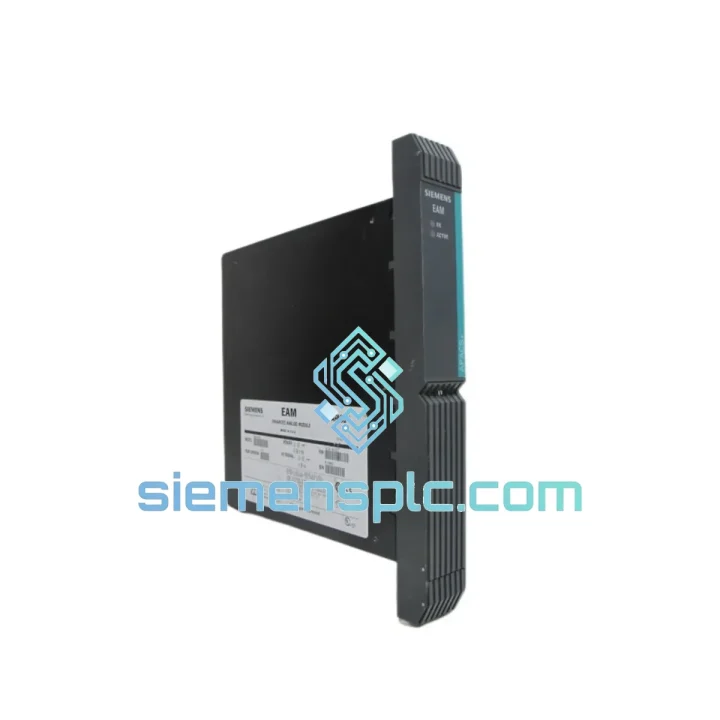

SIEMENS 39EAMCBN 16154-93/3 EAM Analog Module

SIEMENS 39EAMCBN 16154-93/3 — Stop the Bleed: Get Your Analog Loop Back Online Before the Next Shift

You already know what a failed analog module costs. It’s not just the part — it’s the production line idling at $4,000/hour, the maintenance supervisor fielding calls from plant management, and the operator staring at a flatlined trend on the DCS screen. The SIEMENS 39EAMCBN 16154-93/3 is a field-proven EAM Enhanced Analog Module, and when yours goes down, every hour you spend waiting on a slow supplier is money walking out the door. We stock it. We ship it today. That’s the only pitch you need.

This module sits at the front end of your analog signal chain — converting 4–20 mA or voltage inputs from field transmitters into clean digital values your controller can process. When it fails, your PID loops go open-loop, your process variables disappear from the historian, and your safety interlocks may trip on loss-of-signal. There is no workaround. You need the module replaced, configured, and back in the rack before the next production window opens.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here’s what actually goes wrong with the 39EAMCBN and what to watch for during swap-out:

Common Failure Signatures:

• SF LED solid red on the module: Hardware fault detected internally. Check the diagnostic buffer in STEP 7 or TIA Portal — error code 0x0A21 typically points to an internal ADC failure. The module needs replacement, not reset.
• Channel-specific QUAL fault (quality bit = BAD): One or two channels reporting bad quality while others are fine usually indicates a blown input protection circuit from a field wiring surge. Isolate the suspect channel, check field wiring for shorts or overvoltage, then replace the module.
• Intermittent signal dropout under vibration: Backplane connector wear. Before condemning the module, reseat it firmly and check the rack guide rails. If dropout persists after reseating, the module’s internal connector pins are fatigued — replace.
• All channels reading 0 mA after power cycle: Firmware initialization failure. Attempt a cold restart of the CPU first. If the module does not come back online within 30 seconds, it has failed to self-initialize — replace immediately.

Replacement Procedure — Field Checklist:

• ☐ Export current module parameters from STEP 7 / TIA Portal before pulling the old unit (HW Config → Module Properties → save to file).
• ☐ Note the slot address and rack number — the 39EAMCBN uses automatic slot addressing in most EAM rack configurations, but verify against your project’s HW Config to avoid address conflicts.
• ☐ Check DIP switch settings on the replacement module before insertion. On EAM-series modules, switches SW1–SW4 typically set the module address offset. Match them to the removed unit or your HW Config documentation.
• ☐ Verify firmware revision compatibility. If your CPU is running firmware below V3.x, confirm the replacement module’s firmware stamp matches or is backward-compatible. Mismatched firmware can cause the CPU to report a configuration mismatch fault (OB121 triggered).
• ☐ After insertion, perform a CPU memory reset (MRES) only if the system prompts for it — do not perform MRES unnecessarily as it will clear your program.
• ☐ Force a download of HW Config to the CPU to re-register the new module’s hardware ID.
• ☐ Verify all analog channels in the process image — check both raw counts and scaled engineering values in your monitoring table before releasing the loop to automatic control.

Configuration Note on Self-Addressing: In newer EAM rack configurations with automatic addressing enabled, the module will self-assign its I/O address based on slot position. If you are replacing into an existing slot, no address change is required. If you are inserting into a new slot, update HW Config and download before energizing field loops.

Reliability in Harsh Conditions

The 39EAMCBN was not designed for a climate-controlled server room. It was built for the environments where automation actually lives — compressor stations in the Middle East where ambient temperatures hit 55°C, offshore platforms where salt-laden air attacks every exposed connector, and steel mill floors where the floor vibrates continuously from rolling equipment.

SIEMENS EAM-series modules are manufactured to IEC 61131-2 environmental standards. The 39EAMCBN specifically carries compliance with IEC 60068-2-6 (sinusoidal vibration), IEC 60068-2-27 (mechanical shock), and IEC 60068-2-78 (damp heat). The conformal coating on the PCB provides a barrier against condensation and airborne contaminants — a critical feature in coastal industrial facilities where humidity regularly exceeds 90% RH.

The analog front-end circuitry uses precision thin-film resistors with low temperature coefficients, which means your 4–20 mA readings stay accurate across the full operating temperature range without requiring field recalibration after a hot summer shutdown. The input protection circuits are rated for transient overvoltage events up to the levels specified in IEC 61000-4-5, protecting the module from the kind of surge events that occur when field cables are disconnected under live conditions — something that happens in every plant, regardless of procedure.

Units shipped from our Xiamen warehouse that are classified as tested refurbished have been subjected to a 48-hour burn-in cycle at elevated temperature before release. This screens out early-life failures — the kind that would otherwise surface during your first week of operation after a rushed emergency replacement.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-connected cities in Asia, with direct DHL and FedEx gateway access. When you place an urgent order before 14:00 CST, your module goes out the same day. Here’s what the timeline looks like:

• Order confirmed → Packed and labeled: Within 2 hours of payment confirmation.
• Xiamen → DHL/FedEx gateway: Same-day handoff for orders placed before 14:00 CST.
• Xiamen → Southeast Asia (SG, MY, TH, VN): 2–3 business days, DHL Express.
• Xiamen → Middle East (AE, SA, QA): 3–4 business days, FedEx International Priority.
• Xiamen → Europe (DE, NL, FR, PL): 3–5 business days, DHL Express Worldwide.
• Xiamen → North America (US, CA, MX): 3–5 business days, FedEx International Priority.
• Xiamen → Australia / New Zealand: 3–4 business days, DHL Express.

All shipments include full commercial invoice, packing list, and country-of-origin documentation. For customers in countries with specific import requirements (CE declaration, REACH compliance documentation), contact us before ordering and we will prepare the necessary paperwork. We work with your freight forwarder if you have a preferred carrier account — just provide the account number at checkout.

For orders above 5 units or combined shipments exceeding 30 kg, we can arrange consolidated air freight or sea freight via our 3PL partners, with door-to-door tracking throughout.
