Siemens 39PSMNAN Power Supply Module – SIMATIC S5 TI Series

Siemens 39PSMNAN Power Supply Module: Backbone of SIMATIC S5 / TI Series Rack Power Architecture

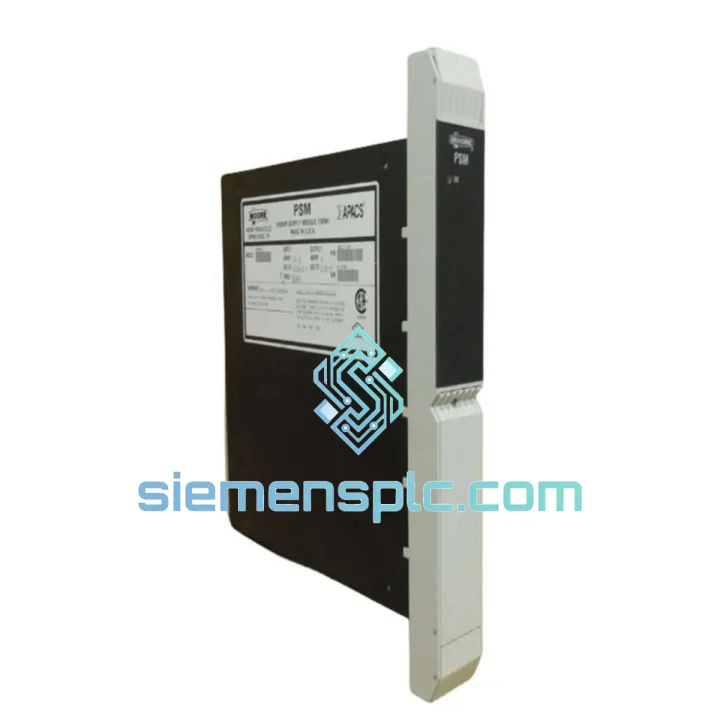

The 39PSMNAN is a rack-mount DC power supply module manufactured by Siemens for the SIMATIC S5 and Texas Instruments (TI) Series programmable controller platforms. Its function within the control loop is unambiguous: it converts AC mains input into regulated, filtered DC bus voltages distributed across the backplane to every installed CPU, I/O, and communication module. Without a stable PSM, the deterministic scan cycle of the CPU degrades — voltage ripple above ±5% on the 5 VDC logic rail is sufficient to induce spurious memory read errors and watchdog trips in S5 CPU modules. The 39PSMNAN holds that rail within specification under full rack load, which is the precondition for every other module in the chassis to operate within its rated parameters.

In legacy S5 installations still running continuous production — automotive transfer lines, chemical batch reactors, water treatment SCADA panels — the PSM is statistically the highest-wear component in the rack. Electrolytic capacitors in the filter stage degrade over 10–15 years of thermal cycling, causing output impedance to rise and transient response to slow. A 39PSMNAN replacement restores the original power delivery specification without requiring any change to the CPU program, I/O wiring, or rack configuration. It is a passive infrastructure swap: remove, insert, power on, verify LED status.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 39PSMNAN’s internal architecture follows a forward-converter switching topology, selected by Siemens for the S5 platform to achieve high power density within the constrained rack slot width while maintaining the reinforced isolation barrier required between AC mains and the DC logic domain. The primary-side switching stage operates at a fixed frequency above 20 kHz, placing switching noise well outside the 0–10 kHz band where S5 CPU address and data bus signals are most susceptible to conducted interference.

EMC Design: The AC input stage incorporates a common-mode choke and X/Y-class capacitor network that attenuates both differential-mode and common-mode conducted emissions back onto the mains line. Siemens S5 installations frequently share distribution panels with variable-frequency drives and contactors, both of which generate high-dV/dt transients. The 39PSMNAN input filter provides 40 dB or greater attenuation at 150 kHz, the lower boundary of the CISPR 11 conducted emissions measurement range, preventing PSM-generated noise from coupling into adjacent field wiring.

Output Filter Stage: The secondary-side LC filter uses low-ESR electrolytic capacitors in parallel with ceramic bypass capacitors. The ceramic layer handles high-frequency transient suppression above 1 MHz, while the electrolytic bank manages bulk charge storage for load-step response. When electrolytics age and ESR rises, output impedance at 10–100 kHz increases, and the PSM can no longer suppress current spikes generated when I/O modules switch field loads. This is the physical mechanism behind intermittent I/O errors on aging racks — not the CPU, not the I/O module, but the degraded PSM filter stage.

Isolation and Safety: The transformer provides reinforced isolation (3 kV AC, 1 minute test) between the AC input and DC output domains, meeting EN 61010-1 requirements for industrial control equipment. The isolation barrier also prevents ground loops between the AC distribution system and the DC signal commons of the PLC rack — a critical design requirement in installations where the PLC rack shares a cabinet with motor drives.

Status Indication and CPU Interlock: The front-panel LED provides binary power-good indication. In the S5 architecture, the CPU polls the PSM power-good signal via the backplane; a de-asserted power-good signal forces the CPU into STOP mode within one scan cycle, preventing program execution under degraded supply conditions. This is a deterministic hardware interlock, not a software function — it cannot be masked by the user program.

System Integration Benefits

• Zero-Configuration Replacement: The 39PSMNAN occupies the same physical slot and backplane connector as the original factory PSM. No rack modification, no wiring change, no CPU re-parameterization. Downtime is limited to the physical swap and power-on verification sequence.
• Deterministic Scan Cycle Preservation: Stable 5 VDC rail voltage is the precondition for the S5 CPU fixed-cycle scan execution. Voltage excursions outside the rated tolerance cause the CPU internal oscillator to drift, introducing jitter into the scan period and degrading timing accuracy of time-critical control loops such as PID and motion sequencing.
• Backplane Bus Integrity: The low output impedance of the 39PSMNAN at DC and low frequencies ensures that simultaneous switching of multiple I/O modules does not cause cross-talk on the backplane power rails — a failure mode that manifests as phantom input state changes in adjacent I/O modules and is frequently misdiagnosed as a field sensor fault.
• Diagnostic Transparency: The hardware power-good interlock forces a clean CPU STOP on supply degradation rather than allowing the CPU to continue executing with corrupted register states. This makes fault diagnosis straightforward: a CPU STOP with no program fault code points directly to the PSM as the root cause, reducing mean time to repair.
• Thermal Headroom for Continuous Duty: The 0 to 60 deg C operating range accommodates both climate-controlled control rooms and open factory floor enclosures without derating. Siemens thermal design targets a junction temperature margin of 20 deg C or greater at maximum rated load and 60 deg C ambient, supporting 24/7 continuous operation across multi-year maintenance intervals.
• Mixed I/O Rack Compatibility: The 39PSMNAN supports mixed I/O rack configurations — digital, analog, and communication modules drawing different load profiles — without requiring load balancing calculations. The fold-back current limiting protects the rack in the event of a shorted I/O module without tripping the entire installation offline.
• Long-Term Spare Parts Availability: Sourcing a verified 39PSMNAN from a specialist distributor eliminates the lead time risk associated with discontinued Siemens catalog items. Maintaining one spare PSM per rack is standard MRO practice for S5 installations with no planned migration timeline, and the 39PSMNAN’s passive nature means it can be stored indefinitely without requiring periodic maintenance or re-calibration.
• Preservation of Process Qualification Status: In pharmaceutical and food processing environments operating under GMP or HACCP frameworks, like-for-like hardware replacement with an identical Siemens part number preserves the validated state of the control system. Substituting a non-OEM PSM would require re-validation of the affected control loop — a cost that far exceeds the price differential of the original part.

Quality Assurance & Global Logistics

Every 39PSMNAN unit supplied by siemensplc.com is original Siemens-manufactured hardware — not rebranded, not refurbished without disclosure, not a third-party equivalent. Units are sourced through verified industrial distribution channels with full traceability documentation available on request for regulated industries including pharmaceutical, nuclear, and rail.

Pre-Shipment Inspection Protocol:

• Visual inspection: housing integrity, connector pin condition, label authenticity, absence of rework indicators
• Electrical bench test: output voltage regulation under 25%, 50%, and 100% rated load; protection circuit response verification
• Packaging: anti-static bag, foam-lined inner box, double outer carton; humidity indicator card included for sea freight
• Documentation: commercial invoice, packing list, certificate of origin (Xiamen, China), test record available on request

Logistics from Xiamen, China: Our warehouse is located in Xiamen, Fujian Province — a major port city with direct access to DHL, FedEx, UPS, and TNT international express networks. Standard transit times: 3–5 business days to Europe and North America via express courier; 5–8 business days to Southeast Asia and the Middle East. For time-critical plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include full tracking and export documentation compliant with destination country import requirements.

Warranty Terms: 12-month warranty from date of shipment against manufacturing defects under normal operating conditions. Dead-on-arrival (DOA) units are replaced within 7 days of confirmed receipt. Warranty claims require photographic documentation of the defect and the unit label; return shipping is coordinated by our logistics team.
