Siemens 3HAC4545-1 Drive Shaft Module – S7 Series

Siemens 3HAC4545-1 Drive Shaft Module: Precision Torque Transmission in Closed-Loop Servo Control Architecture

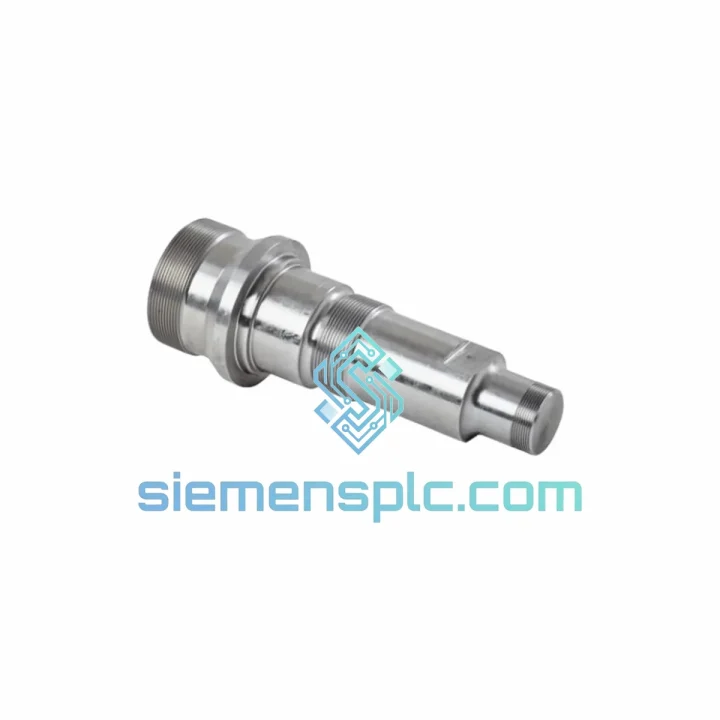

The Siemens 3HAC4545-1 is a precision-engineered mechanical drivetrain shaft module designed for integration within Siemens S7-series automation platforms and compatible servo drive systems. Operating at the mechanical interface between servo motor output and gearbox input, this component governs the fidelity of torque transmission across the entire motion control loop. In high-cycle industrial environments — press tending, robotic welding, CNC machine tending, and heavy-payload palletizing — shaft integrity directly determines axis repeatability, positional accuracy, and mean time between failures (MTBF) for the broader drive train assembly.

Unlike generic aftermarket shafts machined to approximate tolerances, the 3HAC4545-1 is manufactured to Siemens OEM dimensional specifications, with ground surface finishes and heat-treatment profiles that match the original design intent. This ensures that bearing seat interference fits, coupling spline engagement, and axial preload values remain within the parameters defined in the Siemens servo drive engineering documentation. Deviation from these parameters — even within seemingly acceptable ranges — introduces micro-backlash that accumulates into positional drift over time, ultimately triggering encoder feedback errors and unplanned downtime.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC4545-1 shaft occupies the mechanical node between the servo motor’s output flange and the downstream gearbox or coupling assembly. In a Siemens SINAMICS S120 closed-loop servo architecture, the encoder feedback path runs from the motor resolver or absolute encoder back to the drive’s DSC (Dynamic Servo Control) algorithm. Any mechanical compliance or backlash introduced at the shaft interface directly corrupts the position feedback signal, causing the DSC loop to compensate with unnecessary corrective torque commands — increasing thermal load on the power module and reducing positioning bandwidth.

The shaft’s bearing seat geometry is ground to h6 tolerance, which, when mated with a P6-class bearing inner race, produces an interference fit of 0–11 µm depending on shaft diameter. This interference eliminates fretting corrosion at the seat interface — a failure mode common in shafts subjected to oscillating loads below full rotation, such as those found in press-feed indexing axes. The spline or keyway engagement geometry (axis-specific) is broached or hobbed to DIN 5480 or DIN 6885 standards, ensuring full flank contact under torque reversal without fretting or false brinelling of the mating coupling bore.

The case-hardening profile (16MnCr5 or equivalent) provides a surface hardness of 58–62 HRC to a case depth of 0.5–1.2 mm, while maintaining a tough, ductile core (28–34 HRC) that absorbs shock loads without brittle fracture. This dual-zone metallurgical structure is critical in press-tending applications where the shaft experiences high-frequency torque reversals at the moment of press contact. Shafts manufactured from through-hardened steel lack this core ductility and are prone to fatigue crack initiation at stress concentration points such as keyway roots and shoulder fillets.

EMC considerations are addressed through the shaft’s conductive continuity across the drivetrain ground path. In Siemens servo installations, shaft grounding via conductive bearing arrangements prevents shaft voltage buildup — a phenomenon caused by PWM-induced common-mode currents in the motor winding capacitance. Uncontrolled shaft voltages discharge through bearing rolling elements, producing electrical discharge machining (EDM) pitting on bearing raceways. The 3HAC4545-1’s surface finish and material conductivity support proper integration with Siemens-recommended bearing insulation and grounding schemes per application note SI10 (SINAMICS bearing currents).

System Integration Benefits

• OEM dimensional compliance: Ground to Siemens factory tolerances — no field modification, shimming, or adapter required for drop-in replacement in qualified servo axis assemblies.
• DSC loop stability: Elimination of mechanical backlash at the shaft interface preserves the integrity of the SINAMICS S120 Dynamic Servo Control feedback path, maintaining positioning bandwidth and reducing corrective torque commands.
• Axis repeatability restoration: Worn shafts are a primary cause of positional drift accumulation. Replacement with a dimensionally correct OEM shaft restores axis repeatability to ±0.01 mm or better, depending on system configuration.
• Reduced unplanned downtime: Stocking this part locally eliminates 3–10 week OEM procurement lead times during unplanned shaft failures, directly reducing mean time to repair (MTTR) for the affected axis.
• Thermal load reduction on power module: Correct shaft geometry reduces mechanical friction losses and eliminates the compensatory torque commands that increase IGBT switching frequency and thermal cycling in the SINAMICS power module.
• Bearing service life extension: Proper bearing seat interference fit prevents fretting corrosion and false brinelling, extending bearing service intervals and reducing the frequency of full drivetrain overhauls.
• Diagnostic transparency: With mechanical compliance eliminated at the shaft level, encoder feedback anomalies can be attributed to electrical or software causes rather than mechanical ambiguity — improving fault isolation speed during maintenance.
• Cross-variant compatibility: The 3HAC4545-1 is specified across multiple Siemens servo axis configurations, reducing spare parts inventory complexity for maintenance teams managing mixed-axis installations.
• Compliance with Siemens service documentation: Replacement using OEM part numbers maintains traceability to Siemens service manuals and preserves warranty validity on associated drive components.
• Shock load tolerance in press-tending duty: The case-hardened core-ductile metallurgical profile absorbs high-frequency torque reversals without fatigue crack initiation at keyway roots or shoulder fillets — a failure mode common in aftermarket through-hardened shafts.

Quality Assurance & Global Logistics

Every 3HAC4545-1 unit supplied by siemensplc.com is sourced through verified Siemens-authorized distribution channels and undergoes a structured incoming inspection protocol before dispatch. Dimensional verification is performed on bearing seats, spline flanks, and shaft runout using calibrated metrology equipment traceable to national standards. Surface finish is confirmed on bearing contact zones. Packaging integrity — including corrosion-inhibiting wrapping and rigid outer carton — is inspected prior to sealing.

Batch traceability documentation is maintained for all stock, with Siemens part number, date code, and distribution chain records available on request. For export orders requiring third-party verification, SGS or Bureau Veritas inspection certificates can be arranged prior to shipment.

Logistics operations are managed from our Xiamen, China facility, with direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8483.60) — is prepared for all international shipments. Customs clearance support and pre-shipment documentation review are available for buyers in regulated import markets including the EU, USA, and Southeast Asia.

Typical dispatch time for in-stock units is 1–2 business days from order confirmation. Transit times to major industrial hubs: Europe 3–5 days, North America 4–6 days, Southeast Asia 2–4 days, Middle East 4–7 days. All shipments include full tracking and are covered by our 12-month quality warranty from date of dispatch.
