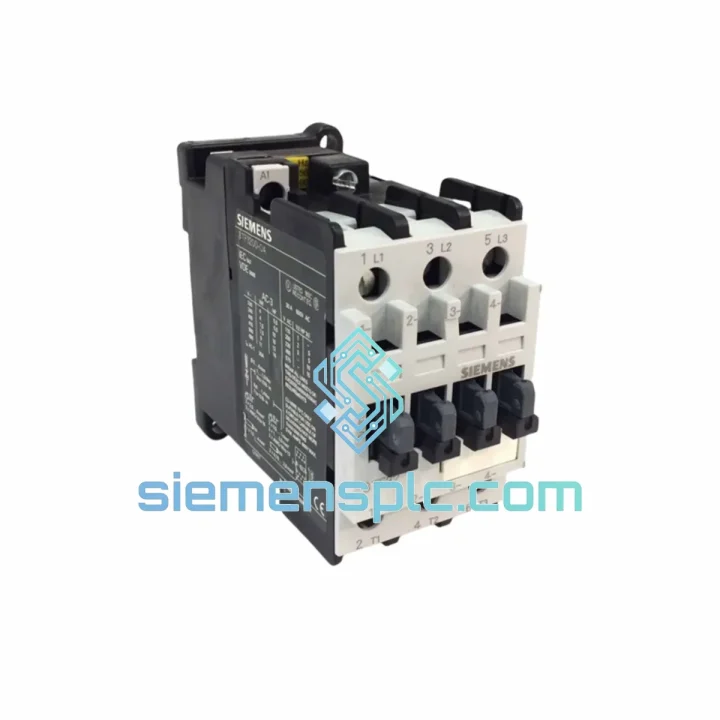

Siemens 3TF3010-1X DC Contactor

3TF3010-1X Down? Every Minute of Downtime Is Money Bleeding Out — Get Back Online Fast

Your line stopped. The fault trace points to the contactor. You pull the part number: Siemens 3TF3010-1X. Now the clock is running — every hour offline in a production environment costs real money, and your procurement team is scrambling. This is exactly the scenario siemensplc.com was built for. We stock the 3TF3010-1X and ship same-day from Xiamen. No waiting for distributor lead times. No minimum order. Just the part, verified, boxed, and moving toward your facility.

The 3TF3010-1X is a DC-coil contactor from Siemens’ long-running 3TF series — a workhorse family that has been embedded in motor control centers, conveyor drives, pump panels, and crane control cabinets across five continents for decades. Its 3NO main contact configuration and integrated 1NO auxiliary make it a direct-fit replacement in the vast majority of legacy and current SIRIUS-based control panels. If you’re reading this at 2 AM with a machine down, you’re in the right place.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure modes on the 3TF3010-1X:

1. Coil burnout (most frequent). DC coils on the 3TF series are sensitive to sustained overvoltage. If the coil resistance reads open or significantly above spec on a multimeter, the coil is gone. Before fitting the replacement, measure your control bus voltage under load — if it’s running more than 10% above rated, you’ll burn the new coil too. Check the suppression diode across the coil terminals; a failed diode causes voltage spikes that kill coils prematurely.

2. Welded contacts. If the contactor pulls in but the load circuit doesn’t drop out when de-energized, the main contacts have welded. This typically happens after a downstream short-circuit event. Do not attempt to pry contacts apart — replace the unit. Also inspect the upstream fuse or circuit breaker; a welded contactor almost always means the protection device upstream failed to clear the fault fast enough.

3. Chattering / intermittent pull-in. On DC contactors, chattering usually indicates insufficient coil voltage at the terminals (check wiring resistance and connection integrity) or a failing freewheeling diode in the control circuit. The 3TF3010-1X does not have built-in arc suppression on the coil circuit — ensure your control wiring includes a properly rated suppression diode.

Replacement procedure — field checklist:

• Isolate and lock out the main power circuit and control supply before removal.
• Photograph the existing wiring layout before disconnecting — the 3TF3010-1X auxiliary contact terminal labeling (13/14 for 1NO) must be replicated exactly on the replacement.
• Verify the replacement unit’s DC coil voltage rating matches your control supply. The “1X” suffix covers a range of DC voltages — confirm the exact sub-variant (e.g., 24VDC, 48VDC, 110VDC) from the original unit’s label before ordering.
• Inspect the contactor mounting rail and surrounding components for heat damage or carbon tracking — a failed contactor in a tight panel often damages adjacent wiring.
• After installation, perform a no-load energization test: apply control voltage and verify clean pull-in with no chatter, then confirm drop-out is crisp when de-energized.
• Log the replacement in your maintenance record with date, unit serial, and failure mode — the 3TF series has a predictable service life under normal cycling; tracking this data helps you schedule proactive replacements before the next unplanned stop.

Firmware / configuration note: The 3TF3010-1X is a purely electromechanical device — no firmware, no addressing, no DIP switches. Drop-in mechanical replacement. If your panel uses a 3RA combination starter or a 3RV circuit breaker upstream, no parameter changes are required in the PLC or drive after contactor replacement.

Reliability in Harsh Conditions

The 3TF series was not designed for climate-controlled server rooms. It was built for the floor — foundries, offshore platforms, chemical processing halls, and open-pit mining equipment. The 3TF3010-1X carries an IEC/EN 60947-4-1 rating that covers operation across a wide ambient temperature range, and its silver-alloy contact material maintains low contact resistance through thousands of switching cycles even in environments with airborne particulates and humidity.

Vibration resistance is a key design criterion for this series. The contactor’s mechanical latch geometry is engineered to prevent false drop-out under the continuous vibration loads common in compressor rooms and heavy press installations. The coil assembly is encapsulated to resist moisture ingress — relevant in food processing and outdoor switchgear applications where condensation is a daily reality.

In high-temperature environments (ambient above 40°C), the 3TF3010-1X requires derating per Siemens application guidelines. If your panel runs hot, ensure adequate ventilation or consult the derating curves in the 3TF series technical manual before specifying the replacement. Running a contactor at its thermal limit is the fastest way to shorten its service life — and schedule your next emergency call.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items. Here’s how your part moves from our shelf to your panel:

• Order confirmed before 3:00 PM CST: Same-day dispatch via DHL Express or FedEx International Priority.
• Packaging: Anti-static foam insert inside a double-wall export carton. The 3TF3010-1X ships in its original Siemens packaging where available, with an additional outer protective layer for international transit.
• Documentation: Commercial invoice, packing list, and certificate of conformity included in every shipment. HS code pre-declared for customs clearance acceleration.
• Tracking: AWB number sent to your email within 2 hours of dispatch. Real-time tracking link provided.
• Typical transit times: Southeast Asia 1–3 days | Europe 3–5 days | Americas 3–6 days | Middle East / Africa 4–7 days.
• Customs support: Our logistics team handles export documentation from China. For import duties and local customs clearance, we provide all required paperwork to your freight forwarder or customs broker on request.

For critical shutdowns requiring weekend or holiday dispatch, contact us directly via WhatsApp — we monitor urgent requests outside business hours.
