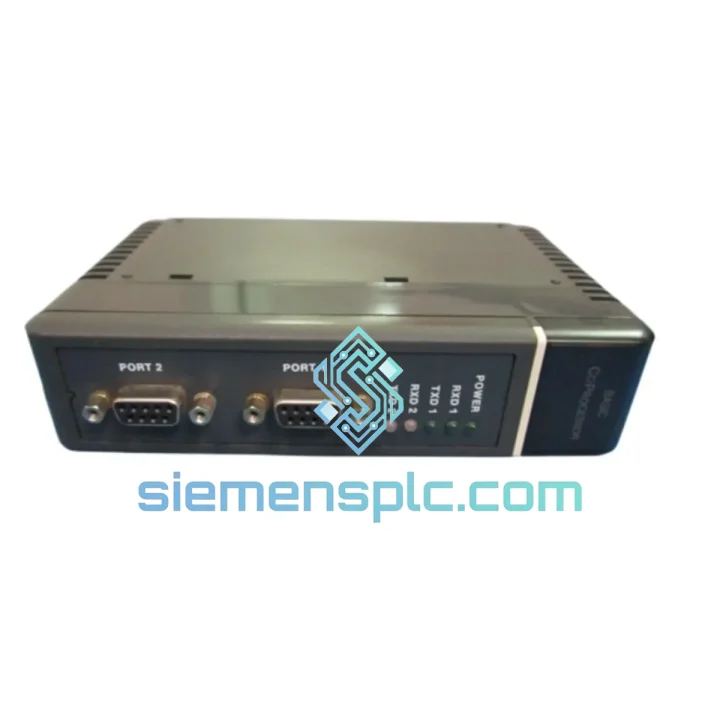

Siemens 405-15ABM Coprocessor Module

Siemens 405-15ABM: Stop the Clock on Your Downtime — Ship Today

Every minute your line sits idle, you’re bleeding money. A failed coprocessor in a SIMATIC S5 rack doesn’t just halt one machine — it can cascade across an entire production cell. The Siemens 405-15ABM Triple-Port Overdrive Coprocessor is on our shelf in Xiamen right now. We’ve pre-cleared export documentation and can hand it to DHL within hours of your order confirmation. No lead-time games, no “check back in 6–8 weeks” — just a verified, tested unit moving toward your facility at speed.

We’ve shipped emergency S5 modules to automotive stamping plants in Germany, petrochemical facilities in the Middle East, and food-processing lines in Southeast Asia. The pattern is always the same: the plant manager needs the part yesterday, and we deliver it the day after tomorrow. That’s the only metric that matters when your production schedule is on the line.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 405-15ABM:

• SF (System Fault) LED solid red on the CPU: The CPU has lost handshake with the coprocessor. First step — reseat the 405-15ABM firmly into the backplane slot. Oxidized edge connectors are a frequent culprit on modules that have been in service for 10+ years. Clean with isopropyl alcohol and a lint-free swab before condemning the card.
• OB 85 / OB 87 called repeatedly in STEP 5 diagnostics: These organization blocks fire when the CPU detects a peripheral access error or communication fault on the coprocessor bus. Pull the module, inspect the 48-pin edge connector for bent pins or corrosion, and re-run the diagnostic after reseating.
• Intermittent data corruption on coprocessor-linked DB blocks: Usually caused by a failing onboard SRAM or a marginal power rail on the backplane. Measure the +5 V supply at the rack’s power supply terminals — anything below 4.85 V under load will cause erratic coprocessor behavior before a hard fault appears.
• Module not recognized after cold start: The S5-400 CPU performs a backplane scan at power-up. If the 405-15ABM is not enumerated, check the slot address DIP switches on the module rear. The factory default is typically slot 0; if a previous engineer changed the addressing, the CPU’s hardware configuration (DB1 or the hardware config file) must match.

Step-by-step hot-swap replacement procedure:

1. Place the CPU in STOP mode via the mode selector switch. Do not power-cycle the rack if other modules are still running — the S5-400 supports module replacement under rack power in most configurations, but confirm with your system documentation first.
2. Record the current DIP switch positions on the failed 405-15ABM before removal. Photograph them. This takes 30 seconds and prevents a 2-hour debugging session later.
3. Set identical DIP switch positions on the replacement unit. The slot address and any interrupt configuration bits must match exactly.
4. Slide the replacement module into the slot until the front panel latch clicks. Do not force — if resistance is felt, check for a misaligned guide rail.
5. Return the CPU to RUN mode. Monitor OB 1 cycle time for the first 5 minutes; a sudden increase indicates the coprocessor is processing a backlog of queued tasks — this is normal and will stabilize.
6. Verify all three coprocessor ports are active via STEP 5 online diagnostics (PG → Module Status → Coprocessor). All three channels should report “OK” within 60 seconds of RUN mode entry.
7. If the system was running a time-critical process, perform a warm restart (CRST) rather than a cold restart (STOP → RUN) to preserve DB data.

Firmware note: The 405-15ABM does not carry user-flashable firmware in the conventional sense — its operating logic is mask-programmed. However, if your CPU firmware (EPROM version) is below a certain revision, the coprocessor handshake protocol may differ. Cross-reference your CPU’s firmware label against the S5-400 compatibility matrix in the SIEMENS manual 6ES5 998-0UF53 before installing a unit from a different production batch.

Reliability in Harsh Conditions

The SIMATIC S5-400 platform was engineered for the factory floor, not the server room. The 405-15ABM reflects that design philosophy at the component level. The PCB uses conformal coating on production variants intended for high-humidity environments — look for the “H” suffix in the full catalog number if your application involves condensation risk near the cabinet.

Vibration resistance meets IEC 68-2-6 (sinusoidal, 10–58 Hz, 0.075 mm amplitude; 58–500 Hz, 1 g). In practice, this means the module has been validated for installation on the same structural frame as large stamping presses and compressors — environments where lesser electronics fail within months. The edge connector uses a gold-plated contact system rated for a minimum of 100 insertion cycles, which matters when you’re doing repeated maintenance pulls in a high-cycle production environment.

Thermal management is passive — no fans, no moving parts. The module dissipates heat through the backplane and the rack’s forced-air cooling system. In ambient temperatures above 40 °C, ensure the rack’s fan cartridge is clean and airflow is unobstructed. A blocked fan tray is the single most common cause of thermally-induced S5 module failures we see in the field.

EMC shielding on the 405-15ABM meets EN 55011 Class A, making it suitable for installation in industrial zones with significant conducted and radiated interference — welding equipment, large VFDs, and high-current bus bars in the same cabinet are not a problem when proper grounding practices are followed.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible connection to DHL Express, FedEx International Priority, and UPS Worldwide Express networks.

Typical transit times from Xiamen:

• Europe (Germany, Netherlands, Poland): 2–3 business days via DHL Express
• North America (USA, Canada): 2–4 business days via FedEx International Priority
• Middle East (UAE, Saudi Arabia): 2–3 business days via DHL Express
• Southeast Asia (Singapore, Thailand, Vietnam): 1–2 business days via DHL or local express
• Australia / New Zealand: 3–4 business days via FedEx or DHL

Every shipment includes a commercial invoice with accurate HS code classification (HS 8537.10 for PLC modules), a packing list, and a certificate of origin where required for customs clearance. For customers in the EU, we can provide EUR.1 movement certificates upon request to facilitate preferential tariff treatment.

The 405-15ABM is packed in anti-static foam within a rigid outer carton. For air freight, we comply with IATA dangerous goods regulations — this module contains no lithium batteries or hazardous materials, so there are no restrictions on express air shipment. Tracking numbers are issued within 2 hours of dispatch and sent directly to your registered email.

For plant shutdowns or scheduled maintenance windows where timing is critical, contact us in advance and we will coordinate dispatch to arrive within your maintenance window. We have done this for turnaround shutdowns in refineries where the delivery window was a 6-hour slot — we hit it.
