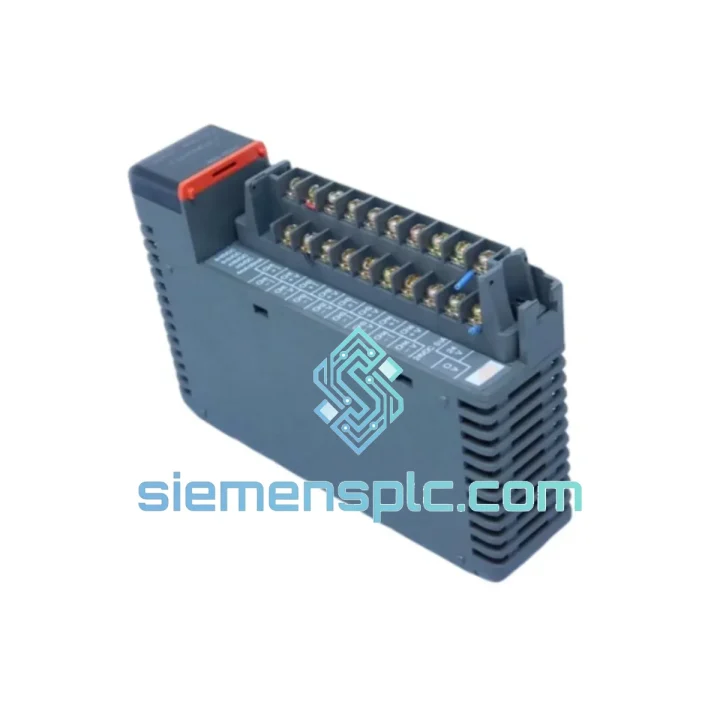

Siemens 405-4DAC-1 Analog Output Module: Stop the Bleed — Get Your Line Back Online

Every minute your process is down, you’re burning money. A failed analog output module in a SIMATIC S5 or Series 400 rack doesn’t just halt one machine — it can cascade into a full production shutdown. The Siemens 405-4DAC-1 is a 4-channel analog output module that sits at the heart of your control loop, driving actuators, control valves, and variable-speed drives with precision 12-bit resolution. When it fails, nothing downstream responds correctly. We stock this module in Xiamen and ship globally via DHL and FedEx — because waiting two weeks for a part is not an option.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 405-4DAC-1 fails in predictable ways. Here’s what to check before you pull the module — and what to watch when you install the replacement.

Common failure signatures:

• All 4 channels stuck at 0 mA or 0 V: Backplane bus voltage loss or blown internal DC/DC converter. Check 24 V supply rail at the rack first. If rail is healthy, the module’s internal regulator has failed — replace the module.
• One or two channels drifting or saturating: Output DAC cell failure, often triggered by a downstream short circuit or inductive load surge. Disconnect field wiring, measure output in open-circuit mode. If the channel still reads incorrectly, the DAC is gone.
• SF (System Fault) LED lit on module: STEP 5 / STEP 7 will log a hardware interrupt. Pull the diagnostic buffer — OB82 or OB86 will point to the slot address. Cross-reference with the module’s address switch setting.
• Outputs correct in STEP 7 but wrong at field device: Check the output range jumper configuration on the module PCB. The 405-4DAC-1 uses internal jumpers (not software-only) to select voltage vs. current mode per channel. A previous technician may have left them in the wrong position.

Replacement procedure — key steps:

• Power down the rack or use hot-swap procedure if your CPU supports it (verify in your CPU manual — not all S5 CPUs support online module swap).
• Note the slot address before removal. The 405-4DAC-1 uses a physical address switch on the module face. Set the replacement to the identical slot address — the CPU will not recognize the module otherwise.
• Verify jumper configuration on the new module matches your channel assignments (voltage/current, unipolar/bipolar) before inserting.
• After insertion, perform a CPU STOP/RUN cycle and check OB100 (warm restart) completes without fault. Monitor the diagnostic buffer for the first 60 seconds of operation.
• If using STEP 7 with hardware configuration, confirm the module type in HW Config matches 405-4DAC-1 exactly — a mismatch will generate a configuration error even if the module is physically present.

Reliability in Harsh Conditions

The 405-4DAC-1 was engineered for the kind of environments that destroy consumer-grade electronics. Siemens designed the Series 400 I/O family to operate continuously in industrial settings where temperature swings, mechanical vibration, and airborne contaminants are daily realities — not edge cases.

The module’s conformal-coated PCB resists moisture ingress and corrosive atmospheres common in chemical processing and coastal installations. Its isolated output architecture means that a ground fault on one channel does not propagate to adjacent channels or back into the CPU backplane — a critical protection in high-noise environments like steel mills or large motor drive installations.

Vibration tolerance meets IEC 60068-2-6 test specifications, making the module suitable for installation near compressors, pumps, and heavy presses without additional shock-mounting hardware. The wide operating temperature range of 0°C to +60°C covers the majority of industrial cabinet environments, even in summer conditions without forced air cooling.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions and packed in anti-static ESD-safe bags with foam cushioning. Every module is inspected for physical integrity — connector pins, housing, label authenticity — before dispatch. You receive a part that is ready to install, not one that has been sitting in an uncontrolled warehouse for years.

Global Express Logistics

Our Xiamen warehouse is positioned for fast international dispatch. When you place an order before 14:00 CST, same-day processing is standard. Here’s how the shipment moves:

• Day 0 — Order confirmation: We verify stock, generate the commercial invoice and packing list, and prepare ESD-safe packaging. Export documentation (certificate of origin, HS code declaration) is prepared in parallel.
• Day 0–1 — Carrier handoff: Shipments move via DHL Express or FedEx International Priority depending on destination and urgency. Both carriers offer door-to-door tracking from Xiamen to your facility.
• Day 1–3 — Transit to Asia-Pacific, Middle East, Southeast Asia: Most regional destinations receive the shipment within 1–3 business days of dispatch.
• Day 2–5 — Transit to Europe and North America: DHL and FedEx express lanes from Xiamen typically deliver to major European and North American cities within 2–5 business days.
• Customs clearance: We provide complete export documentation to minimize customs delays. For repeat buyers, we can pre-fill your importer details to accelerate clearance.
• Tracking: A tracking number is sent to your email within 2 hours of carrier pickup. You can monitor the shipment in real time through the DHL or FedEx portal.

For critical shutdowns where every hour counts, contact us directly via WhatsApp before placing your order. We can confirm stock availability, arrange priority packing, and coordinate with the carrier for the earliest possible flight departure.
