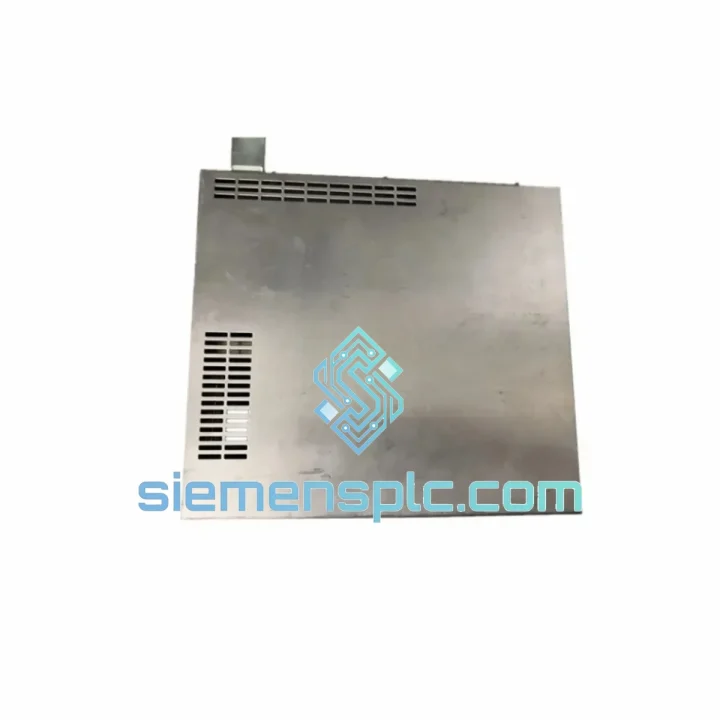

Siemens 4FD6303-0LA01-1A Current Supply Module

Siemens 4FD6303-0LA01-1A — Stop the Clock on Your Downtime. Ship Today.

Every minute your line is down, you’re bleeding money. The Siemens 4FD6303-0LA01-1A DC Current Supply Module is one of those components that nobody thinks about — until it fails at 2 AM on a Sunday and your entire CNC cell goes dark. We stock it. We ship it fast. That’s the whole point.

This module is a DC current supply unit used in Siemens SINUMERIK and SIMATIC control architectures, responsible for delivering stable regulated current to the backplane I/O bus. When it fails, downstream I/O modules lose power sequentially, and the controller throws a cascade of faults that look like a software problem until you trace it back to the supply rail. Don’t waste three hours chasing ghosts — if your system is throwing F01000, F01001, or bus undervoltage alarms, this module is your first suspect.

We have units on the shelf in Xiamen. DHL Express to Europe: 3–5 days. FedEx International Priority to North America: 4–6 days. You get a tracking number within 24 hours of payment confirmation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Replacing the 4FD6303-0LA01-1A is straightforward if you follow the sequence. Skip steps and you risk damaging the new module or corrupting the NCU configuration.

Common Fault Signatures Before Failure:

• F01000 / F01001 — Internal power supply fault on the NCU or CCU. Often the first alarm before a hard shutdown.
• Bus undervoltage warning (A01920) — The current supply rail is sagging under load. Module is degrading, not yet dead.
• Intermittent I/O module dropouts — Modules on the same bus segment randomly lose communication. Classic symptom of a failing current supply.
• Unexpected NCU reboot loops — The controller resets itself trying to recover from a brown-out condition on the supply bus.

Step-by-Step Replacement Procedure:

1. Safe shutdown first. Execute a controlled E-Stop and power down the entire cabinet. Do not hot-swap this module — it is not designed for live insertion.
2. Document your DIP switch / address settings. The 4FD6303-0LA01-1A uses hardware addressing via onboard switches. Photograph the existing configuration before removal. Mismatched addressing will cause the NCU to reject the module on startup.
3. Check firmware revision compatibility. The -1A hardware revision requires a matching firmware baseline on the NCU. If your NCU is running an older firmware, a -1A module may trigger a hardware mismatch alarm (F01006). Confirm via the Siemens SINUMERIK compatibility matrix or contact us — we can advise.
4. Seat the module fully. The backplane connector requires firm, even pressure. A partially seated module will power up but throw intermittent bus errors that are nearly impossible to diagnose remotely.
5. Power-on sequence. Restore 24VDC auxiliary power first, then main cabinet power. Watch the NCU boot sequence — it should enumerate the current supply module within the first 30 seconds. If it doesn’t appear in the hardware list, recheck seating and DIP switch addressing.
6. Run a bus diagnostic. Use the SINUMERIK service menu to run a full I/O bus scan and verify all downstream modules are communicating correctly before releasing the machine to production.

Reliability in Harsh Conditions

Industrial environments don’t care about your warranty. Vibration from heavy presses, ambient temperatures pushing 55°C in summer, humidity cycling from condensation during shift changes — these are the conditions the 4FD6303-0LA01-1A was engineered to survive.

Siemens designed this module for continuous 24/7 operation in exactly these environments. The internal components are selected for extended temperature range operation, and the PCB conformal coating provides protection against moisture ingress and conductive contamination — the kind of fine metallic dust that kills unprotected electronics in machining environments within months.

Vibration resistance meets IEC 60068-2-6 test profiles, which covers the sinusoidal vibration profiles typical of press lines and heavy CNC installations. Shock resistance per IEC 60068-2-27 covers the transient mechanical shocks from emergency stops and tooling impacts transmitted through the machine frame.

The thermal design uses passive convection with no moving parts — no fans to fail, no filters to clog. In a properly ventilated cabinet, this module will outlast the machine it’s installed in. When it does fail, it’s almost always due to one of three causes: capacitor aging after 10+ years of continuous operation, a transient overvoltage event from a poorly protected supply, or physical damage from a cabinet intrusion. All three are diagnosable before you order a replacement — contact us and we’ll walk you through it.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province, China — one of the most logistics-connected cities on the eastern seaboard, with direct access to DHL, FedEx, UPS, and TNT international hubs.

Standard Express Routing:

• Europe (Germany, Italy, Spain, Poland): DHL Express — 3 to 5 business days door-to-door. Customs clearance documentation provided in full.
• North America (USA, Canada, Mexico): FedEx International Priority — 4 to 6 business days. HS code 8537.10 declared for smooth customs clearance.
• Southeast Asia (Thailand, Vietnam, Indonesia, Malaysia): DHL or local express — 2 to 4 business days.
• Middle East (UAE, Saudi Arabia, Turkey): FedEx or DHL — 4 to 7 business days depending on customs processing.
• Australia & New Zealand: DHL Express — 5 to 7 business days.

Every shipment includes: commercial invoice, packing list, certificate of conformity, and anti-static packaging with shock-indicator labels. For orders above USD 2,000, we provide a pre-shipment inspection report on request. Tracking numbers are issued within 24 hours of dispatch and sent directly to your registered email.

For time-critical situations where you need the module on-site within 48 hours, contact us directly on WhatsApp before placing the order — we can arrange priority handling and confirm the fastest available routing for your destination.
