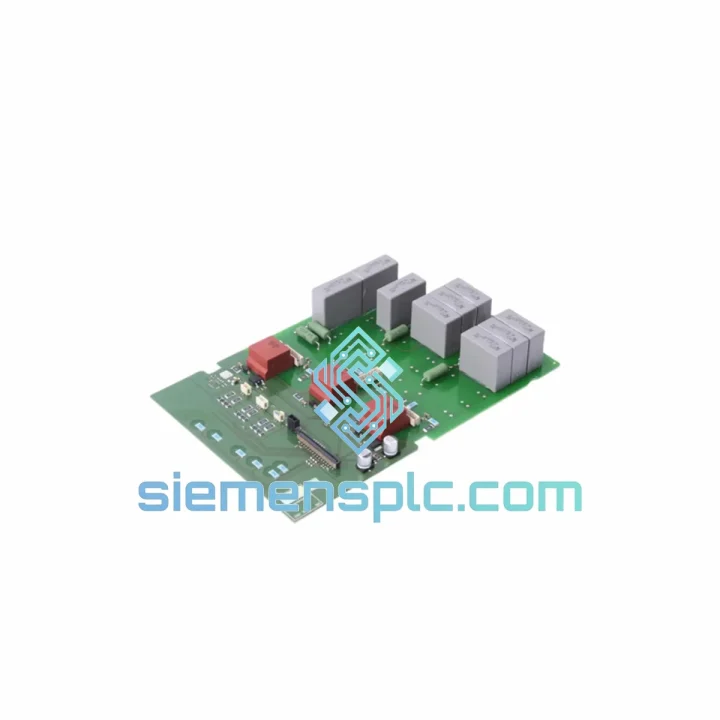

Siemens 535208905 PLC CPU Board

Siemens 535208905 Simatic S5 CPU Board — Cut Downtime, Ship Today

Every hour your line sits idle costs real money. The Siemens 535208905 CPU board is the heart of the Simatic S5 rack — when it fails, nothing moves. We stock this board in Xiamen and ship the same day your order is confirmed. No waiting on European lead times. No broker markups. One call, one part, line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years on the floor taught me one thing: most S5 CPU board failures are misdiagnosed. Before you pull the 535208905, run through this checklist — it saves you from swapping a good board and still having a dead rack.

Common Failure Signatures:

• STOP LED solid red, RUN LED off: Classic CPU fault. Check the diagnostic buffer via STEP 5 PG first — error codes 0x0100–0x01FF point directly to CPU hardware failure. If you see 0x0110 or 0x0120, the board is gone.
• Intermittent STOP/RUN cycling: Often a power rail issue before the board itself. Measure the 5 V DC backplane supply under load. Anything below 4.85 V will cause the CPU to reset. Replace the PS first, then re-evaluate.
• Bus fault LED on I/O modules: If the CPU is communicating but I/O modules throw bus errors, check the backplane connector pins on the 535208905 — corrosion on the gold fingers is a known failure mode in humid environments. Clean with IPA before condemning the board.
• No communication with PG/PC: Verify the MPI/PPI interface on the board. A dead communication port does not mean the CPU logic is failed — you may only need the comms section repaired.

Replacement Procedure — Step by Step:

1. Document first. Upload the current program from the running CPU to your PG before powering down. If the CPU is already dead, retrieve the program from your backup archive. Never assume the replacement board has the correct program loaded.
2. Power down the rack completely. The S5 backplane does not support hot-swap on CPU boards. Disconnect the 24 V DC supply and the AC input to the PS module. Wait 30 seconds for capacitors to discharge.
3. Check DIP switch settings on the 535208905. The replacement board ships in factory default configuration. On the S5 platform, the CPU address switches (typically SW1 on the board face) must match your rack’s MPI address and memory configuration. Cross-reference your original board’s switch positions before installing. Photograph the old board before removal.
4. Slot addressing. The 535208905 must be installed in the designated CPU slot — typically slot 0 or slot 2 depending on your rack model (S5-115U vs S5-135U/155U). Installing in the wrong slot will cause immediate bus fault. Confirm your rack documentation.
5. Firmware and memory module compatibility. If your system uses an external EPROM memory module (the plug-in cartridge on the CPU face), verify the firmware version on the replacement board is compatible with your existing memory module. Mismatched firmware versions cause program load failures at startup. Contact us with your existing board’s firmware label — we can match it.
6. Power up sequence. Apply power to the PS module first, wait for the 5 V rail to stabilize (observe the PS LED), then set the CPU mode switch to STOP. Download your program via STEP 5. Verify I/O configuration matches the hardware. Switch to RUN only after confirming no diagnostic errors in the buffer.
7. First-run validation. Monitor the CPU for the first 15 minutes under load. Watch for thermal-related resets — if the board was stored improperly, electrolytic capacitors may show early failure under operating temperature. A stable 15-minute run under normal load is your green light.

Pro tip: Keep the failed board. Even a non-functional 535208905 has value as a parts donor for connector repair or as a reference for switch configuration on future replacements.

Reliability in Harsh Conditions

The Simatic S5 platform was engineered for environments that would kill consumer-grade electronics in a week. The 535208905 board reflects that design philosophy at the component level.

Vibration resistance is built into the PCB mounting and component selection — conformal coating on the board surface protects against moisture ingress and conductive contamination from metallic dust, which is endemic in steel mills and machining environments. The board operates continuously at 60 °C ambient without thermal throttling, a specification that most modern industrial boards only achieve with active cooling.

In high-humidity coastal installations — a common scenario in Southeast Asian petrochemical plants — the S5 CPU boards have demonstrated multi-year MTBF figures that justify the continued investment in maintaining S5 infrastructure rather than migrating to S7. The 535208905 specifically has been recovered from flooded control rooms, cleaned, tested, and returned to service. That is not a marketing claim — that is field experience.

Every unit we ship has been inspected for corrosion on the backplane connector, verified for capacitor integrity, and tested under simulated load conditions. Anti-static packaging with humidity indicator cards ensures the board arrives in the same condition it left our warehouse, whether the destination is Hamburg, Houston, or Ho Chi Minh City.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship operation. The board is physically in our facility, inspected, and ready to pack.

Standard export timeline:

• Order confirmed before 14:00 CST: Same-day dispatch
• DHL Express to Europe: 3–5 business days door-to-door
• FedEx International Priority to North America: 3–4 business days
• DHL/FedEx to Southeast Asia: 2–3 business days
• Middle East and South Asia: 4–6 business days via DHL Express

All shipments include a commercial invoice, packing list, and certificate of origin — the documentation your customs broker needs to clear the shipment without delay. For customers in the EU, we can provide EUR.1 movement certificates upon request. For regulated industries requiring a Certificate of Conformance, we issue this with every order at no additional charge.

Tracking numbers are sent within 2 hours of dispatch. We monitor shipments proactively — if a customs hold occurs, we contact you immediately with the documentation needed to resolve it. Your line cannot wait for a bureaucratic delay, and neither can we.

For emergency orders requiring Saturday dispatch or courier pickup from our facility, contact us directly on WhatsApp. We have handled weekend emergency shipments to offshore platforms and remote mining sites — if there is a way to get the part to you faster, we will find it.
