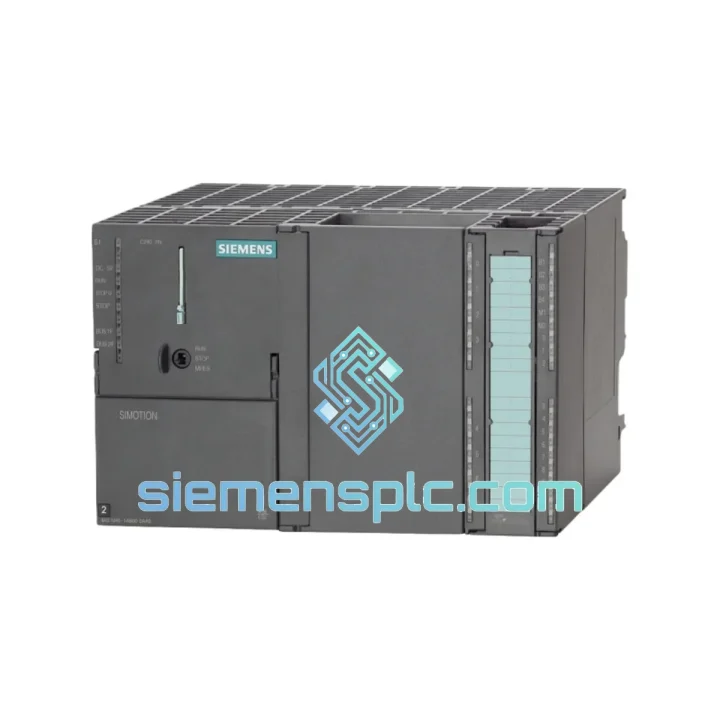

Siemens 6AU1240-1AA00-0AA0 Motion Controller – SIMOTION D

Siemens 6AU1240-1AA00-0AA0 — Drive-Integrated Motion Controller for Deterministic Multi-Axis Coordination

The 6AU1240-1AA00-0AA0 is a drive-integrated motion controller belonging to Siemens’ SIMOTION D series. It mounts directly onto a SINAMICS S120 Control Unit, consolidating motion logic and drive management into a single hardware node. This architecture removes the conventional separation between a standalone PLC and a drive inverter, eliminating the inter-device communication latency that accumulates in distributed topologies. For machine builders operating in packaging, printing, textile, and semiconductor equipment sectors — where axis synchronization tolerances are measured in microseconds — this integration is a structural advantage, not a convenience feature.

The controller executes motion tasks under a deterministic, isochronous real-time operating system. Servo position loops, cam profiles, electronic gearing ratios, and path interpolation all run within fixed, jitter-free cycle windows. The DRIVE-CLiQ interface provides the physical backbone for this determinism: a serial point-to-point topology that carries encoder data, drive status, and control commands over a single cable with cycle-synchronous timing. This eliminates the polling uncertainty inherent in conventional fieldbus encoder feedback chains.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6AU1240-1AA00-0AA0 operates on a three-tier task execution model: the servo level (fastest cycle, typically 125 µs), the interpolator level IPO (motion profile computation), and the IPO2 level (slower background tasks such as HMI communication and diagnostics). Each tier runs in a strictly time-partitioned manner, preventing lower-priority tasks from consuming servo-cycle budget. This is not a software scheduling convention — it is enforced by the real-time kernel at the hardware interrupt level, which means servo jitter remains bounded regardless of application code complexity in the IPO2 tier.

The DRIVE-CLiQ interface deserves specific attention from a hardware architecture standpoint. Unlike PROFIBUS or CANopen encoder feedback, DRIVE-CLiQ uses a proprietary Siemens serial protocol with a fixed 100 Mbit/s physical layer. Each DRIVE-CLiQ node — whether a motor module, encoder module (SMC/SME/SMI), or line module — carries an electronic nameplate stored in non-volatile memory. At startup, the controller reads these nameplates automatically, building a verified topology map. This eliminates manual parameter entry for drive and encoder identification, and it provides a hardware-level mismatch detection mechanism: if a replacement motor module carries a different nameplate, the controller flags the discrepancy before enabling the drive, preventing misconfiguration-induced faults.

EMC design on the SIMOTION D platform follows Siemens’ standard for drive-integrated controllers: the backplane connection between the motion controller and the SINAMICS S120 CU is a controlled-impedance, shielded internal bus. Conducted emissions from the power stage are isolated from the logic supply domain through the S120 internal power architecture. The motion controller itself does not require a separate EMC filter on its logic supply, as the S120 line module handles mains-side filtering. For installations in high-interference environments — such as proximity to large variable-frequency drives or resistance welding equipment — the SINAMICS S120 chassis provides the primary EMC barrier, and the SIMOTION D module benefits from this shielding without additional external measures.

Retentive memory on the 6AU1240-1AA00-0AA0 uses a battery-backed SRAM architecture for data persistence across power cycles. Program code and configuration data reside in flash memory, which is write-cycle-limited but immune to power loss. This separation means that a sudden power interruption does not corrupt the application program — only retentive variable values (position offsets, recipe parameters, counters) depend on the battery-backed domain. The controller supports a CompactFlash card slot for extended program storage and firmware updates, allowing field firmware upgrades without returning the unit to a service center.

System Integration Benefits

• Elimination of inter-controller latency: By co-locating motion logic and drive control on the same hardware node, the round-trip delay between position command generation and drive response is reduced to the DRIVE-CLiQ cycle time — typically 125 µs — versus the 1–4 ms typical of PROFIBUS-based distributed architectures.
• Unified commissioning environment: SIMOTION SCOUT covers axis configuration, drive parameterization, cam editor, trace/oscilloscope, and online diagnostics within a single project tree. Engineers do not switch between separate drive and PLC tools, reducing commissioning time and version-mismatch risk.
• Scalable axis count without topology redesign: Additional SINAMICS S120 motor modules connect via DRIVE-CLiQ daisy-chain. The controller automatically detects new nodes at startup, allowing axis count expansion without rewiring the control cabinet or modifying the fieldbus segment.
• Deterministic cross-axis synchronization: Electronic cam and gearing objects execute within the servo cycle, ensuring that master-slave phase relationships are maintained with sub-millisecond repeatability across all synchronized axes — a requirement in register control for printing and in flying-shear applications.
• Integrated safety via SINAMICS Safety Integrated: Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely Limited Speed (SLS) functions are implemented in the drive hardware layer, certified to SIL 2 / PLd. The motion controller coordinates safety state transitions without requiring a separate safety PLC, reducing BOM complexity.
• Transparent diagnostics via DRIVE-CLiQ topology: The controller maintains a live topology map of all connected DRIVE-CLiQ nodes. Fault localization identifies the specific module, encoder, or cable segment at fault — not just a generic drive error — reducing mean time to repair in production environments.
• IEC 61131-3 multi-language support: Application code can mix Structured Text, Ladder Diagram, Function Block Diagram, and Motion Control Chart within the same project. Teams with different programming backgrounds can contribute to the same machine program without a common language mandate.
• PROFINET IRT capability: Isochronous Real-Time PROFINET allows the motion controller to synchronize with external PROFINET IO devices — such as distributed I/O stations or vision systems — at the same cycle rate as the servo loop, enabling tightly coupled sensor-actuator feedback without dedicated point-to-point wiring.

Quality Assurance & Global Logistics

Every 6AU1240-1AA00-0AA0 unit dispatched from our Xiamen facility is a genuine Siemens-manufactured component. Units are sourced through verified supply channels with full traceability to authorized distribution. Prior to dispatch, each module undergoes a structured inspection protocol: visual examination of connector pins, label authenticity verification against Siemens’ part numbering conventions, and firmware version logging. Where test equipment is available, power-on verification and DRIVE-CLiQ interface enumeration are performed to confirm basic hardware functionality.

Packaging follows anti-static and mechanical protection standards appropriate for sensitive electronics: conductive foam inserts, anti-static poly bags, and double-wall corrugated outer cartons. For international shipments, units are packed to withstand the handling conditions of air freight and express courier services. Shipment documentation includes a commercial invoice, packing list, and — upon request — a certificate of conformity and inspection report.

Logistics from Xiamen, China covers all major industrial markets: Southeast Asia (typically 3–5 business days via DHL/FedEx), Europe (5–7 business days), North America (5–8 business days), and the Middle East (4–6 business days). Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include full tracking from collection to delivery. Import documentation support — including HS code classification and commercial invoice formatting for customs clearance — is provided as standard.

A 12-month warranty covers manufacturing defects and hardware failures under normal operating conditions. Warranty claims are processed with a target response time of 1 business day. Replacement or repair options are discussed based on unit condition and customer location. Post-warranty technical support for integration questions, firmware guidance, and compatibility checks is available at no additional charge for registered customers.
