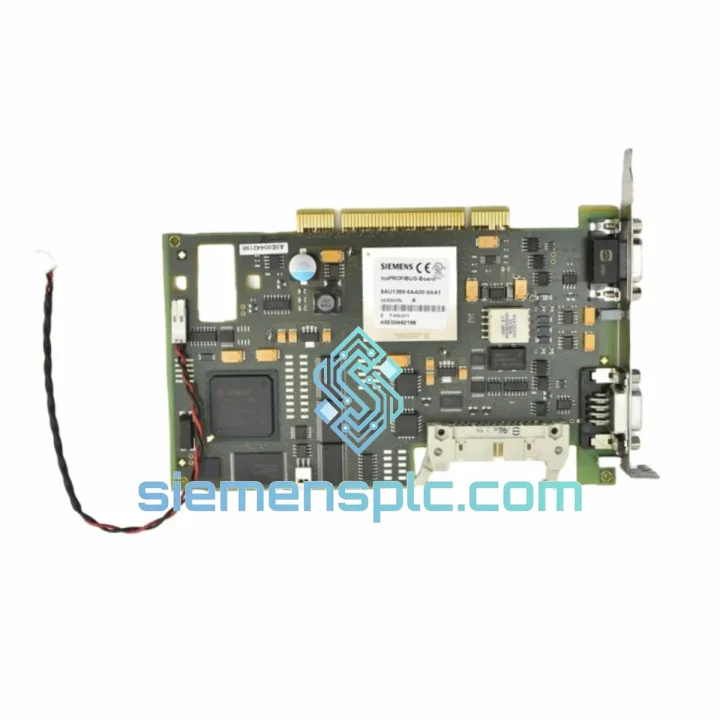

Siemens 6AU1390-0AA00-0AA1 Servo Control Module

6AU1390-0AA00-0AA1 A5E00442198 — Every Hour of Downtime Costs You Money. We Ship Today.

Your SIMODRIVE 611 axis just tripped. The spindle is cold. The shift supervisor is standing behind you. You’ve already pulled the fault code — it points straight to the servo control board. You know what needs to happen: get a verified 6AU1390-0AA00-0AA1 on-site before the next shift, or the production loss compounds by the hour.

We stock the Siemens 6AU1390-0AA00-0AA1 (board ID A5E00442198) in Xiamen, China. Orders confirmed before 18:00 CST ship same day via DHL Express or FedEx International Priority. Most destinations in Southeast Asia, Europe, and North America receive the module within 3–5 business days. No broker delays. No customs surprises. Just a tested board in your hands.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to this board:

• Alarm 300500 / 300502 (Encoder fault, axis X/Y/Z): Before condemning the encoder, swap the control board first. A degraded A5E00442198 can corrupt encoder signal processing and throw false encoder alarms. Confirm by checking the encoder cable shield continuity and then swapping the board.
• Alarm 25000 – Drive fault, internal hardware: This alarm class maps directly to the control electronics, not the power section. If the power module LEDs are green and the DC bus is nominal, the control board is the primary suspect.
• Axis oscillation / hunting at standstill: A failing servo control board can cause instability in the current regulator. If Kp/Tn retuning doesn’t stabilize the axis and the motor and cable check out, replace the board.
• No communication on drive bus after power cycle: The 6AU1390-0AA00-0AA1 handles drive bus arbitration. A board that fails to enumerate on the bus will prevent the NCU from seeing the axis entirely — the axis simply disappears from the drive configuration.

Replacement procedure — field checklist:

1. Back up drive parameters first. Use SimoCom U or STARTER to export the axis parameter set (.par file) before touching anything. If the old board still powers on, do this now.
2. Record the drive address (station number). On SIMODRIVE 611, the drive address is set via the rotary switch (S1) on the control board itself. Note the current position before removal — the replacement board must be set to the same address, or the NCU will not recognize the axis.
3. Check firmware version compatibility. The 6AU1390-0AA00-0AA1 carries embedded firmware. If your system runs a specific SINUMERIK software version, confirm the firmware on the replacement board is compatible. Mismatched firmware can cause alarm 300600 (firmware version mismatch) on first power-up. We provide firmware version documentation with every shipment.
4. Inspect the encoder connector (X411/X412) on the new board. Bent pins on the encoder sub-D connector are a common shipping damage point. Verify before installation.
5. Power-up sequence: Apply 24 V DC logic supply first, wait for the board to enumerate on the drive bus (green RDY LED), then enable the main DC bus. Do not apply DC bus before the control board has completed its self-test.
6. Re-download parameters. Load the saved .par file via SimoCom U. Perform a motor identification run (p1910) if the motor data was not previously optimized on this axis.
7. Verify encoder actual value. In SimoCom U, check the encoder actual position increments as you manually rotate the motor shaft. Confirm direction and resolution match the motor datasheet.

Reliability in Harsh Conditions

The 6AU1390-0AA00-0AA1 was designed for the machine tool and heavy industry environment — not a climate-controlled server room. The PCB carries a full conformal coating applied during Siemens production, providing protection against condensation, cutting fluid mist, and airborne metallic particles common in machining environments.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the shock and vibration profiles of press lines, stamping equipment, and mobile industrial platforms. The board’s operating temperature range spans 0 °C to +55 °C ambient, with short-term excursions to +70 °C tolerated during peak load cycles — relevant for poorly ventilated drive cabinets in summer production environments.

Humidity tolerance is rated to 95% RH non-condensing. The conformal coating is the primary defense here; units that have been stored in humid warehouses without original packaging should be inspected for corrosion on the edge connector fingers before installation. All units we ship are stored in sealed anti-static bags with silica gel desiccant and a humidity indicator card. If the card reads above 30% RH on arrival, contact us immediately — we will replace the unit.

EMI immunity is inherent to the SIMODRIVE platform design. The board’s signal traces are impedance-controlled and shielded at the PCB layer stack level, reducing susceptibility to the high-frequency switching noise generated by adjacent inverter power sections in the same drive cabinet.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — a major port city with direct DHL, FedEx, and UPS hub access. This geography gives us competitive transit times to virtually every industrial region on the planet.

Typical transit times from Xiamen:

• Southeast Asia (Thailand, Vietnam, Malaysia, Indonesia): 2–3 business days via DHL Express
• India & South Asia: 3–4 business days via FedEx International Priority
• Europe (Germany, Italy, Poland, Turkey): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–5 business days via FedEx International Priority
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via DHL Express
• Australia & New Zealand: 3–5 business days via DHL Express

Our logistics process:

1. Order confirmed → module pulled from shelf and inspected (same day).
2. Anti-static packaging: board wrapped in ESD bag, placed in foam-lined carton, outer carton double-walled.
3. Commercial invoice and packing list prepared with accurate HS code (8537.10) for smooth customs clearance.
4. Shipment booked with DHL or FedEx; tracking number sent to buyer within 2 hours of pickup.
5. Real-time tracking link shared via email and WhatsApp.
6. For time-critical shipments, we can arrange airport-to-airport freight with local courier last-mile delivery on request.

All export documentation is handled in-house. We have experience shipping industrial electronics to over 60 countries and maintain a clean customs compliance record. Duties and import taxes are the buyer’s responsibility; we provide accurate declared values and HS codes to prevent clearance delays.
