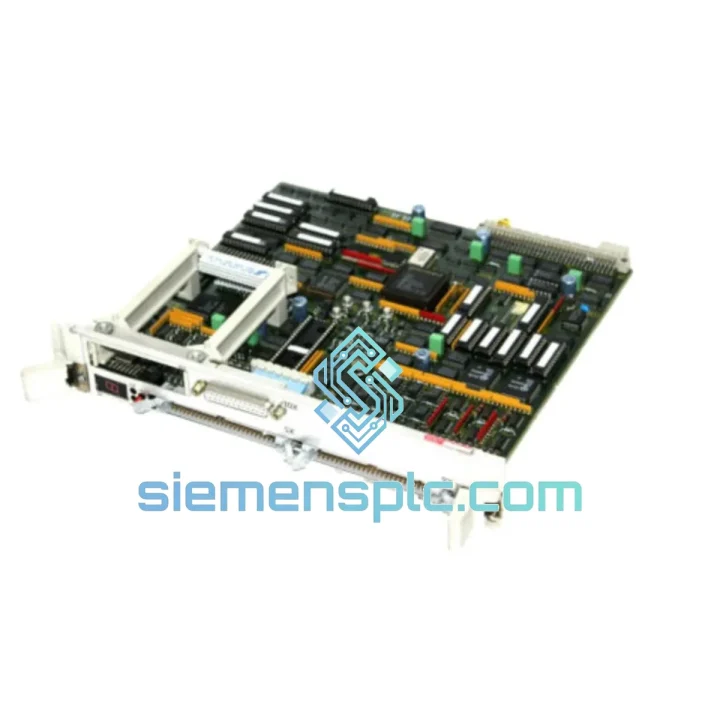

SIEMENS 6DD1606-1AA0 Processor Module – Simadyn D

SIEMENS 6DD1606-1AA0 — PT2 Processor Module: Backplane Architecture and Real-Time Control Loop Analysis

The SIEMENS 6DD1606-1AA0 is a PT2-class processor module designed for the Simadyn D platform — a rack-based, real-time control system developed by Siemens for high-demand industrial drive and power applications. Unlike general-purpose PLCs, Simadyn D was engineered from the ground up for deterministic closed-loop control, and the 6DD1606-1AA0 sits at the computational core of that architecture. This module handles the cyclic execution of control algorithms — including vector drive regulation, excitation control, and turbine governor functions — with scan times that general SIMATIC CPUs are not designed to match.

In a Simadyn D rack, the PT2 processor communicates with I/O modules, communication boards, and other processor cards via a proprietary parallel backplane bus. This bus architecture allows synchronous data exchange between modules within a single rack cycle, eliminating the latency penalties associated with serial fieldbus polling. For applications where control loop timing directly affects process stability — such as DC drive current regulation or synchronous generator excitation — this determinism is not a feature preference; it is a system requirement.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6DD1606-1AA0 operates within the Simadyn D rack as a dedicated computation node. Its hardware design reflects the engineering priorities of high-power drive control rather than general automation: the processor is optimized for repetitive, time-critical mathematical operations — specifically the trigonometric and matrix calculations inherent in field-oriented vector control and excitation regulation.

Backplane Bus Synchronization: The Simadyn D backplane uses a time-slot arbitration scheme. Each module — processor, I/O, and communication — is assigned a fixed time window within each rack cycle. The PT2 module reads input data from I/O modules, executes its control algorithm, and writes output data back to the bus within a single deterministic cycle. There is no polling overhead and no variable-latency interrupt handling for inter-module data exchange. This is architecturally distinct from PROFIBUS or PROFINET-based I/O, where network jitter introduces timing uncertainty.

EMC Design: The module PCB employs ground plane segmentation to isolate the digital processing domain from the backplane power rails. Signal traces carrying high-frequency clock signals are routed with controlled impedance and shielded by adjacent ground traces. The front panel connector is mechanically keyed and includes chassis ground bonding to the rack frame, ensuring that the module contributes to the overall rack-level EMC shielding rather than creating apertures in it. This design is consistent with EN 61000-6-2 immunity requirements for industrial environments with heavy switching equipment nearby.

Firmware Architecture: The PT2 module runs a real-time executive — not a general-purpose RTOS — that schedules control tasks in fixed priority tiers. High-priority tasks (current regulation, PWM generation) execute every 1–2 ms. Medium-priority tasks (speed regulation, flux estimation) execute every 4–10 ms. Low-priority tasks (diagnostics, communication updates) execute in background slots. This tiered structure ensures that a communication timeout or diagnostic event cannot preempt a current control cycle — a critical property in drive applications where a missed current sample can cause overcurrent trips or torque instability.

Fault Detection Logic: The module includes hardware watchdog circuitry independent of the main processor. If the processor fails to reset the watchdog within the configured timeout window, the module asserts a fault signal on the backplane, triggering a controlled system shutdown. This prevents silent failures — a scenario where a processor hangs but continues to output stale control values, which in a drive system could result in uncontrolled motor acceleration.

System Integration Benefits

• Deterministic scan cycle: Fixed-cycle execution eliminates jitter in closed-loop control, directly improving current and speed regulation accuracy in variable-speed drive applications.
• Backplane-native data exchange: Inter-module communication occurs within the rack cycle without fieldbus overhead, reducing effective loop latency compared to distributed I/O architectures.
• Tiered task scheduling: Separates time-critical control tasks from diagnostic and communication functions, preventing low-priority events from disrupting regulation cycles.
• Hardware watchdog independence: Watchdog circuitry operates outside the main processor domain, ensuring fault detection even in the event of a processor lockup — no software intervention required.
• Diagnostic transparency: The module exposes internal state variables — cycle time, fault codes, watchdog status — via the Simadyn D diagnostic interface, enabling maintenance engineers to assess module health without interrupting production.
• Drop-in replacement compatibility: The 6DD1606-1AA0 is mechanically and electrically compatible with the Simadyn D rack standard, allowing replacement without rack modification or rewiring.
• Firmware parameter retention: Application parameters are stored in non-volatile flash memory. A module swap does not require full re-parameterization if the replacement unit carries the same firmware version — reducing commissioning time during emergency replacement.
• Multi-processor rack support: Simadyn D racks support multiple PT-class processor modules operating in parallel, each handling a dedicated control function. The 6DD1606-1AA0 can be deployed as a primary controller, a co-processor for auxiliary functions, or a redundant standby processor depending on system configuration.

Quality Assurance & Global Logistics

Every 6DD1606-1AA0 unit supplied by siemensplc.com is a genuine SIEMENS-manufactured component. We do not supply clones, re-labeled substitutes, or third-party compatible alternatives. Our procurement process traces each unit to its supply chain origin before acceptance into stock.

Inspection Protocol: Each unit undergoes visual inspection for label authenticity, date code consistency, connector pin condition, and PCB integrity. Where test fixtures are available, functional power-on verification is performed. Units that do not pass inspection are quarantined and not shipped.

Customs Compliance — Xiamen Operations: All export shipments are processed through Xiamen Customs with full commercial documentation: commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10 / 8471.49 as applicable). Our export team is experienced with dual-use goods classification and can provide ECCN documentation for customers in regulated markets.

Logistics from Xiamen: Xiamen is a Category 1 international port with direct air freight connections to major hubs in Europe, North America, Southeast Asia, and the Middle East. Standard export shipments via DHL Express or FedEx International Priority reach Western Europe in 3–5 business days and North America in 4–6 business days. For bulk orders, LCL and FCL sea freight options are available with competitive transit times to major ports. All shipments include real-time tracking and are covered by cargo insurance upon request.

Payment Terms: T/T (bank transfer), PayPal, Western Union, and major credit cards accepted. For established B2B accounts, net payment terms are available upon application.

12-Month Warranty: siemensplc.com provides a 12-month supplier warranty from the date of dispatch. This covers functional failure under normal operating conditions as defined in the SIEMENS product datasheet. Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement or full refund options are available at the customer’s discretion.
