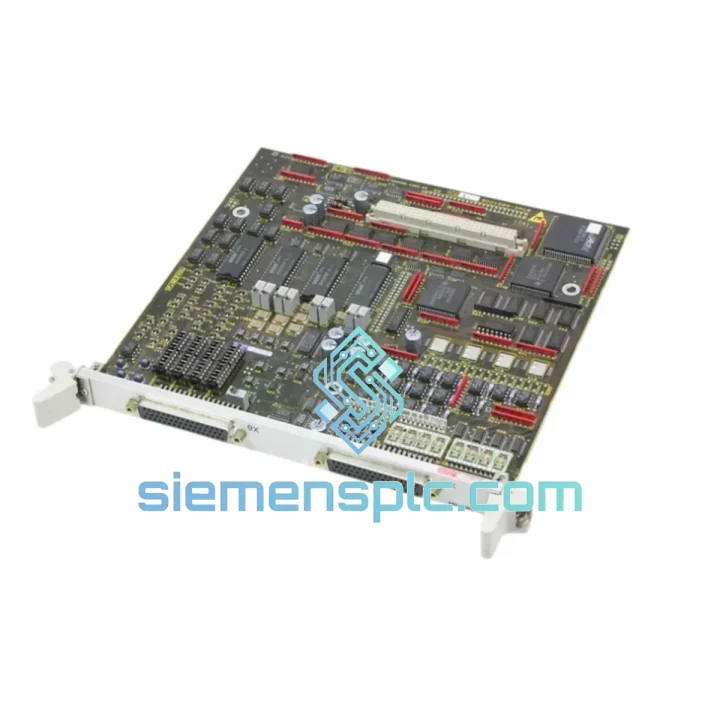

Siemens 6DD1606-2AC0 PT20G: Central Processor Module for SIMADYN D High-Performance Drive Control

The Siemens 6DD1606-2AC0, designated PT20G, is the central processing unit of the SIMADYN D modular control system — a platform engineered specifically for high-dynamic, multi-axis drive control and complex process automation. Within the SIMADYN D rack architecture, the PT20G functions as the sole computational authority: it executes all closed-loop control algorithms, manages inter-module communication across the internal system bus, and coordinates the deterministic timing that multi-axis synchronization demands. Without a functioning PT20G, the entire SIMADYN D rack is inoperable. Its role is not peripheral — it is the architectural keystone of the control system.

SIMADYN D installations remain active across heavy industry globally — steel rolling mills, paper machine drive lines, cement kiln drives, and large-scale crane systems. These are environments where a processor module failure translates directly into unplanned production downtime measured in hours, not minutes. The 6DD1606-2AC0 is among the most critically sourced legacy processor modules in the industrial MRO market precisely because its installed base is vast and its original production has long since ceased. Securing a verified, functional spare is a risk-management decision, not a procurement formality.

This listing covers the Siemens 6DD1606-2AC0 PT20G held in stock at our Xiamen, China facility. Units are inspected, verified for physical and functional integrity, and dispatched with full export documentation. Inquiries are handled by engineers with direct SIMADYN D system experience.

📧 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PT20G processor module is built around a dedicated real-time processing core optimized for deterministic control cycle execution. Unlike general-purpose computing architectures, the 6DD1606-2AC0 is designed to guarantee fixed-interval task scheduling — a non-negotiable requirement in closed-loop drive control where cycle jitter directly degrades speed regulation accuracy and torque response.

Backplane Bus Architecture: The PT20G communicates with I/O modules, communication cards, and function modules via the SIMADYN D internal system bus (ISB). This parallel bus architecture provides low-latency, deterministic data exchange between the processor and peripheral modules without the arbitration overhead inherent in serial fieldbus topologies. The ISB operates at fixed clock rates synchronized to the processor’s control cycle, ensuring that analog input samples and digital output commands are time-stamped and aligned to the same execution frame.

EMC Design: The module’s PCB layout follows Siemens’ industrial EMC design rules for rack-mounted control electronics. Ground planes are segmented to isolate analog signal paths from digital switching noise. Decoupling capacitors are distributed at the component level across the logic supply rails to suppress high-frequency transients generated by the processor’s switching activity. The Eurocard form factor, combined with the SIMADYN D rack’s shielded enclosure and backplane grounding scheme, provides a Faraday cage effect that attenuates externally coupled electromagnetic interference — a critical design consideration in drive cabinets where IGBT switching generates broadband EMI in the 1 MHz to 100 MHz range.

Memory Architecture: The PT20G carries onboard program memory (EPROM/Flash) for the operating system firmware and RAM for real-time data buffers, setpoint tables, and control variable storage. The memory subsystem is organized to minimize access latency for the innermost control loop variables, with slower-access storage reserved for configuration parameters and diagnostic logs that are read infrequently during normal operation.

Watchdog and Fault Supervision: An independent hardware watchdog timer monitors the processor’s execution cycle. If the control program fails to service the watchdog within the defined interval — due to software fault, memory corruption, or hardware failure — the watchdog asserts a system fault signal that drives the rack into a safe state. This fail-safe mechanism operates independently of the main processor, ensuring that a CPU fault does not result in uncontrolled drive behavior.

System Integration Benefits

• Direct Rack Compatibility: The 6DD1606-2AC0 is a form-fit-function replacement within any SIMADYN D rack assembly. No hardware modifications, adapter boards, or firmware re-flashing of peripheral modules are required. The replacement procedure follows standard Siemens hot-swap protocols for the SIMADYN D platform.
• Deterministic Real-Time Response: The PT20G’s fixed-cycle execution architecture guarantees that closed-loop control tasks — speed regulation, torque control, position synchronization — complete within their allocated time windows. This determinism is the foundation of stable multi-axis coordination in rolling mill and paper machine applications.
• Diagnostic Transparency: The module exposes fault codes and status registers accessible via the SIMADYN D diagnostic interface. Engineers can read processor load, cycle time overruns, memory status, and communication fault counters without interrupting production — enabling predictive maintenance decisions based on objective data rather than observation.
• Extended System Lifecycle: Replacing a failed PT20G restores full SIMADYN D functionality without requiring migration to a successor platform. This preserves the existing application software, I/O wiring, and operator interface investment — deferring a full system upgrade until it is planned and budgeted, not forced by hardware failure.
• Multi-Axis Synchronization Integrity: In multi-rack SIMADYN D configurations, the PT20G manages inter-rack synchronization via the system bus. A replacement module restores the timing master/slave relationships that coordinate axis motion across the installation, eliminating the phase drift and synchronization errors that occur when a processor module degrades before complete failure.
• Application Software Retention: SIMADYN D application programs are stored in the rack’s program memory structure. A PT20G replacement does not erase application data held in other memory locations within the rack. Commissioning after replacement focuses on processor initialization and parameter verification, not full application re-engineering.
• Compatibility with Siemens Drive Systems: The 6DD1606-2AC0 interfaces natively with SIMOREG DC Master converters and SIMOVERT drive units via the SIMADYN D communication modules. This integration layer allows the processor to issue torque and speed references directly to the drive’s inner control loop, achieving response times that external fieldbus-based control cannot match.
• Reduced Commissioning Risk: Because the PT20G is a verified Siemens original module — not a third-party substitute — it carries the same firmware baseline and hardware revision as the original installation. This eliminates the compatibility uncertainty that arises when non-OEM replacements are used in safety-relevant or precision-critical drive applications.

Quality Assurance & Global Logistics

Every 6DD1606-2AC0 unit dispatched from our Xiamen facility passes through a structured inspection protocol before shipment. Physical inspection covers PCB condition, component integrity, connector pin alignment, and label authenticity. Functional verification is performed against known-good SIMADYN D reference configurations where test infrastructure permits. Units that do not meet our acceptance criteria are quarantined and not offered for sale.

Sourcing traceability is maintained for every unit. We do not accept modules from unverified secondary market channels. Supply chain documentation — including source records and inspection reports — is available to customers upon request for critical applications where procurement audit trails are required.

Packaging follows ESD-safe handling standards: anti-static bags, foam cushioning, and rigid outer cartons rated for international air freight handling. Each shipment includes a commercial invoice, packing list, and certificate of origin. DHL Express, FedEx International Priority, and UPS Express Worldwide are our primary carriers. Transit times to Europe, the Middle East, Southeast Asia, and the Americas are typically 3 to 7 business days from dispatch. In-stock units ship within 1 to 2 business days of purchase order confirmation.

A 12-month warranty applies to all units from the date of dispatch, covering defects in materials and workmanship under normal operating conditions. Warranty claims are handled directly by our engineering team — no third-party intermediaries.
