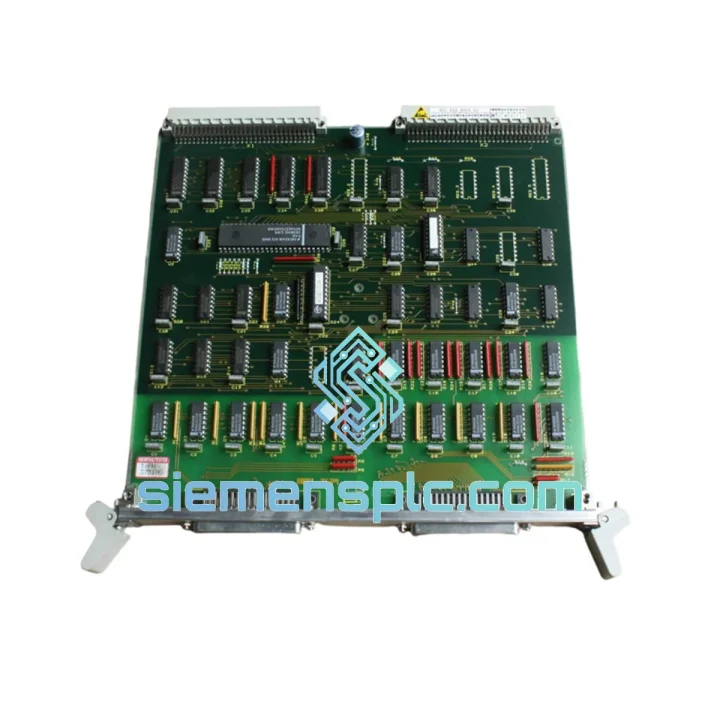

Siemens 6DD1660-0AE0 CS21 Communications Module

Siemens 6DD1660-0AE0 CS21: Stop the Clock on Your Downtime — Ship Today

Every hour a SIMATIC TDC rack sits dark costs real money. In a steel mill, that’s a rolling line frozen mid-coil. In a paper machine, it’s a web break that takes two hours to thread back. The Siemens 6DD1660-0AE0 CS21 Communications Module is the single card that bridges your TDC CPU to the PROFIBUS DP network — and when it fails, nothing downstream talks. We keep verified stock on the shelf in Xiamen specifically for this scenario. Same-day dispatch is not a marketing phrase; it is a logistics commitment backed by DHL and FedEx account priority lanes.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure signatures for the 6DD1660-0AE0:

• BF LED solid red on CS21 — PROFIBUS DP bus fault. Before condemning the module, check cable shield continuity and termination resistors at both ends of the DP segment. A floating shield on a 12 Mbit/s segment will mimic a dead CS21.
• TDC CPU logs “CS21 not responding” at startup — 90% of the time this is a firmware mismatch between the CS21 and the PM6 CPU after a CPU swap. The CS21 stores its own firmware version in onboard flash; a PM6 running firmware ≥ V3.2 will reject a CS21 with firmware < V2.8.
• Intermittent DP timeouts under load — Electrolytic capacitors on the DC/DC converter section of the CS21 degrade after 8–12 years in a warm rack. The module passes cold-start self-test but drops out when the board reaches thermal equilibrium (~40 min runtime). Replace the module; recapping is not field-practical.
• Slot-specific fault — module works in slot 3 but not slot 1 — Backplane bus connector pins on the UR2 rack oxidize unevenly. Clean the slot edge connector with IPA and a fiberglass pen before concluding the module is faulty.

Step-by-step hot-swap procedure (TDC rack with redundant CPU):

1. In the TDC engineering tool, force the standby CPU to active and confirm switchover. Document the active CPU slot.
2. Note the CS21 slot address — the TDC system uses physical slot position as the module address; do not move the replacement to a different slot.
3. Power down only the affected rack segment if the rack supports segmented power; otherwise perform a controlled rack shutdown.
4. Extract the faulty CS21. Inspect the backplane connector for bent pins or carbon tracking.
5. Verify the replacement CS21 firmware label matches the CPU firmware version. If labels are absent, contact us — we can read the firmware version via our bench test rig before shipment.
6. Seat the replacement module firmly until the ejector levers click. Partial seating causes intermittent backplane faults that are extremely difficult to diagnose.
7. Power up the rack. Observe the CS21 RUN LED — it should go green within 8 seconds. If it stays amber, the CPU is still negotiating firmware handshake; wait 30 seconds before alarming.
8. In the TDC engineering tool, verify all DP slaves return to “OK” state. Check cycle time statistics — a healthy CS21 replacement should show DP cycle jitter < 0.5 ms.
9. Switch the active CPU back to its original slot and confirm redundancy is restored.

Dip-switch / addressing note: The CS21 does not have user-configurable dip switches for DP address — the PROFIBUS master address is set in the TDC configuration software and downloaded to the module at startup. No physical address setting is required on the replacement card.

Reliability in Harsh Conditions

The SIMATIC TDC platform was engineered for the environments where most control hardware fails. The 6DD1660-0AE0 CS21 module reflects that design philosophy at the component level. The PCB uses a conformal coating rated to IEC 60068-2-30 for cyclic damp heat — relevant in coastal plants and tropical climates where humidity swings between 20% and 95% RH within a single shift. The backplane connector is a hard-gold-plated DIN 41612 type C, rated for a minimum of 500 insertion cycles without measurable contact resistance increase.

Vibration tolerance is qualified to IEC 60068-2-6: 10–58 Hz at 0.075 mm displacement, 58–500 Hz at 1 g. In practice, this means the CS21 survives continuous operation adjacent to large motor drives and transformer bays without PCB trace fatigue or connector fretting. Shock resistance is rated to IEC 60068-2-27 at 15 g / 11 ms half-sine — sufficient for the mechanical transients common in press lines and rolling mills.

Thermal design uses a passive convection path through the Eurocard form factor. There are no fans or moving parts on the module itself. Mean time between failures (MTBF) for the CS21 in a properly ventilated UR2 rack at 40 °C ambient exceeds 150,000 hours — roughly 17 years of continuous operation. The modules we ship have been bench-tested under a 48-hour burn-in at 55 °C to screen infant mortality before they leave our warehouse.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Orders confirmed before 16:00 CST are picked, tested, and handed to the carrier the same day. Here is what that means in practice for your location:

• Southeast Asia (Singapore, Thailand, Vietnam): DHL Express — 1 to 2 business days door-to-door
• Europe (Germany, Netherlands, Poland, Turkey): FedEx International Priority — 3 to 4 business days
• North America (USA, Canada, Mexico): DHL Express Worldwide — 2 to 3 business days
• Middle East (UAE, Saudi Arabia, Qatar): FedEx Priority — 2 to 3 business days
• South America (Brazil, Chile, Colombia): DHL Express — 4 to 5 business days
• Australia & New Zealand: DHL Express — 3 to 4 business days

Every shipment includes a commercial invoice with accurate HS code (8537.10) and declared value for customs clearance. We prepare export documentation — packing list, certificate of origin, and test report — as a standard package, not an add-on. For customers in countries with import duty exemptions on industrial automation components, we can provide the supporting documentation required by your customs broker. Tracking numbers are sent via email and WhatsApp within one hour of carrier pickup.

For orders requiring air freight consolidation or special packaging (anti-static shielding, wooden crate for sea freight), contact us directly. We handle freight forwarding coordination for large orders or multi-line PO shipments.
