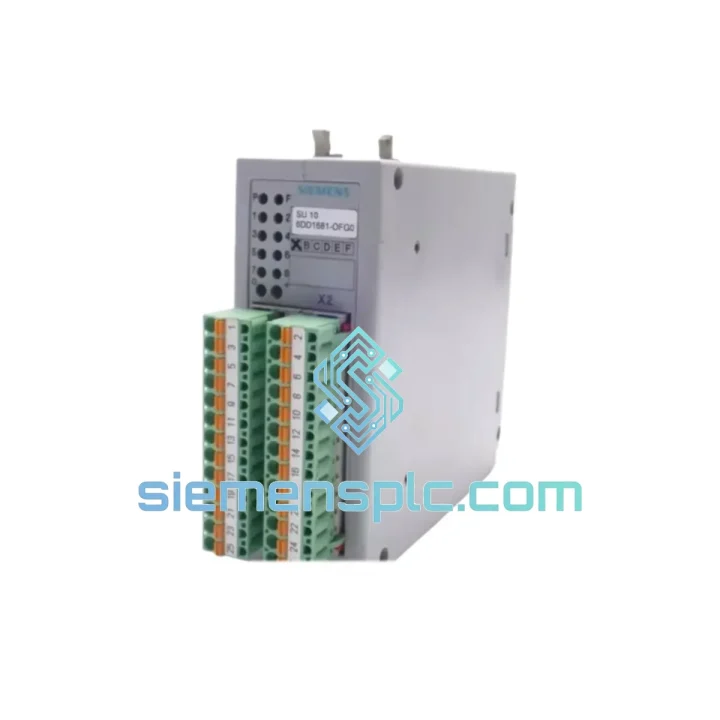

Siemens 6DD1681-0FG0 Digital I/O Module – SIMADYN D

Siemens 6DD1681-0FG0 — Digital I/O Interface Module in SIMADYN D Distributed Control Architecture

The Siemens 6DD1681-0FG0 is a digital input/output module engineered for the SIMADYN D distributed control system platform. SIMADYN D was developed by Siemens AG as a high-determinism, rack-based DCS targeting power generation, heavy-drive coordination, and process-critical automation. Within that architecture, the 6DD1681-0FG0 occupies the field-interface tier: it conditions, isolates, and routes discrete binary signals between field instrumentation and the central processing rack, maintaining signal integrity across electrically noisy industrial environments.

The module operates on a 24 V DC field supply and presents multiple configurable digital channels. Each channel is galvanically isolated via optocoupler barriers, which decouple the field-side ground potential from the backplane logic ground. This isolation topology prevents ground-loop currents — a common failure mode in large plant installations where cable runs exceed 100 m and potential differences between earthing points can reach several volts. The optocoupler response time is fast enough to capture transient events at the millisecond level, which is essential for turbine trip logic and fast-acting interlock sequences.

On the backplane side, the 6DD1681-0FG0 communicates over the SIMADYN D internal bus, a synchronous parallel bus that operates under a deterministic time-slice scheduler. The CPU module polls I/O modules at fixed cycle intervals — typically 1 ms to 10 ms depending on task class assignment — ensuring that digital state changes are captured within a bounded latency window. This determinism is a hard requirement in power plant excitation control and rolling mill drive coordination, where a missed or delayed signal can trigger uncontrolled process deviations.

The module’s front connector accepts standard 24 V DC field signals from proximity switches, relay contacts, solenoid feedback, and position limit switches. Output channels are capable of driving relay coils and indicator lamps within their rated current envelope. The module’s housing conforms to the SIMADYN D rack form factor, with a locking front connector that prevents accidental disconnection during vibration — a relevant consideration in compressor hall and turbine building installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6DD1681-0FG0 implements a channel-level optocoupler isolation architecture rather than a group-isolation scheme. In group-isolated designs, a single isolation barrier protects a bank of 8 or 16 channels sharing a common reference — a cost-effective approach that introduces a vulnerability: a single field-side fault can corrupt the entire channel group. The per-channel isolation in the 6DD1681-0FG0 eliminates this failure propagation path. Each channel’s optocoupler presents a minimum isolation voltage of 500 V DC between field side and logic side, which satisfies IEC 61131-2 requirements for Type 1 and Type 3 digital inputs.

The module’s EMC design follows Siemens’ internal shielding guidelines for SIMADYN D hardware. The PCB layout routes high-frequency switching signals on inner copper layers, with ground planes on outer layers acting as Faraday shields. Decoupling capacitors are placed at each optocoupler’s power supply pin to suppress high-frequency noise injected from the backplane bus during simultaneous switching of multiple output channels — a phenomenon known as simultaneous switching noise (SSN) that can cause false triggering in adjacent input channels if not properly managed.

The front connector’s cable shield termination point connects directly to the rack’s protective earth (PE) rail, providing a low-impedance path for capacitively coupled interference currents. This is particularly relevant in installations near variable-frequency drives (VFDs), where common-mode noise on cable shields can reach amplitudes sufficient to trigger false input transitions on unshielded or poorly grounded I/O modules. The 6DD1681-0FG0’s PE termination architecture reduces this susceptibility to within IEC 61000-4-4 Level 3 burst immunity requirements.

Output channels incorporate current-limiting circuitry to protect against short-circuit conditions on the field side. The current limit is set to prevent thermal damage to the output driver transistor while maintaining sufficient drive current for standard 24 V DC relay coils (typically 50 mA to 100 mA). A diagnostic bit in the module’s status register flags overcurrent conditions, allowing the SIMADYN D CPU to log the fault and initiate a controlled shutdown sequence rather than experiencing an undetected output failure.

System Integration Benefits

• Deterministic I/O Scan Cycle: The module participates in the SIMADYN D time-slice scheduler, guaranteeing that digital state changes are captured within the configured task class cycle time (1 ms to 10 ms), which is a hard requirement for turbine protection and fast interlock logic.
• Per-Channel Fault Isolation: Individual optocoupler barriers prevent a single field-side wiring fault from corrupting adjacent channels or propagating into the backplane logic domain, reducing unplanned downtime and simplifying fault diagnosis.
• Integrated Diagnostic Transparency: The module exposes channel-level status bits — including overcurrent flags and signal-level diagnostics — directly to the SIMADYN D CPU, enabling the control program to distinguish between process faults and hardware faults without additional field instrumentation.
• Hot-Swap Compatible Rack Design: SIMADYN D rack architecture supports module replacement under power in maintenance configurations, reducing mean time to repair (MTTR) in continuous-process plants where scheduled shutdowns are infrequent.
• Standardized Front Connector: The locking front connector accepts standard 1.5 mm² field wiring and includes a mechanical coding key to prevent incorrect module substitution during maintenance — a critical safeguard in multi-module racks where adjacent modules may share similar form factors.
• EMC-Hardened Signal Path: The combination of per-channel optocoupler isolation, PCB ground-plane shielding, and PE-connected cable shield termination provides robust immunity to conducted and radiated interference from VFDs, contactors, and high-current bus bars common in heavy industrial environments.
• Backplane Bus Synchronization: The module’s internal logic synchronizes to the SIMADYN D backplane clock, eliminating metastability errors that can occur when asynchronous field signals are sampled by a synchronous digital system without proper synchronization registers.
• Long-Term Spare Parts Availability: siemensplc.com maintains verified stock of genuine 6DD1681-0FG0 units to support ongoing maintenance of SIMADYN D installations, providing a reliable supply chain alternative for plants operating beyond the platform’s standard lifecycle support window.

Quality Assurance & Global Logistics

Every 6DD1681-0FG0 unit supplied by siemensplc.com is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol. Visual inspection confirms that the module’s PCB, front connector, and housing are free from physical damage, corrosion, and evidence of prior repair. Functional verification checks the module’s identification data against Siemens’ part number database to confirm authenticity and revision level.

Units are shipped from our warehouse in Xiamen, China, using export-grade packaging that includes anti-static bags, foam cushioning, and moisture-barrier outer cartons. Xiamen’s port infrastructure supports DHL Express, FedEx International Priority, and sea freight consolidation, with typical air freight transit times of 3–7 business days to Europe, North America, and Southeast Asia. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed through direct communication with our technical team, who can arrange return shipping, replacement dispatch, or credit note issuance depending on the nature of the fault. Traceability records are maintained for each shipment, enabling rapid identification of batch-level issues if they arise.
