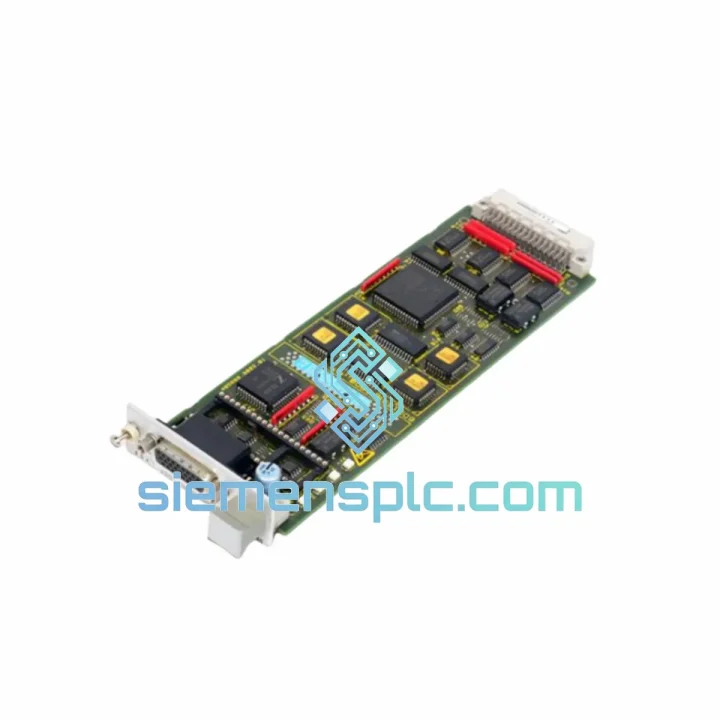

Siemens 6DD1688-0AE0 Communication Submodule

6DD1688-0AE0 In Stock — Every Hour of Downtime Has a Price Tag

Your SIMADYN D rack just threw a communication fault. The line is down. Maintenance is standing by. Every minute the system stays offline, you’re bleeding production cost — and the clock doesn’t care about lead times from the OEM distributor. That’s exactly the scenario the Siemens 6DD1688-0AE0 communication submodule was built to resolve, and it’s exactly why we keep verified stock on the shelf in Xiamen, ready to move the same day you call.

The 6DD1688-0AE0 is the dedicated communication interface submodule for the SIMADYN D modular control platform — Siemens’ long-running, high-reliability architecture deployed across steel mills, paper machines, power generation turbines, and heavy-process industries worldwide. This module sits at the heart of the rack’s data exchange layer, managing cycle-synchronous communication between the central processor and field-level drive or I/O devices. When it fails, nothing downstream talks. Replacing it with anything other than the correct OEM part risks firmware mismatches, rack faults, and extended commissioning time you cannot afford.

We stock the 6DD1688-0AE0 because SIMADYN D installations are still running — and Siemens stopped making them. That gap between installed base and OEM availability is where we operate. Our units are sourced through verified industrial channels, inspected on receipt, and dispatched with full tracking via DHL Express or FedEx International Priority. From our Xiamen warehouse to your plant floor, typically 3–5 business days anywhere in the world.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to a failed 6DD1688-0AE0:

• SIMADYN D CPU logs “Communication error — submodule slot x” or equivalent rack fault code at startup or during operation.
• Drive system loses synchronization with the controller; SIMOVERT or MASTERDRIVES units trip on external fault with no process-side cause.
• Rack self-test passes on CPU and I/O modules but fails specifically on the communication submodule slot — confirmed via the SIMADYN D diagnostic LED pattern (typically a steady red on the submodule faceplate).
• Intermittent communication dropouts under thermal load — a classic sign of aging solder joints or capacitor degradation on the submodule PCB.

Replacement procedure — field-tested sequence:

1. Document current configuration before power-down. Use the SIMADYN D engineering tool (STRUC G or equivalent) to export the current rack configuration and parameter set. Do not skip this — some submodule slots carry address assignments that are not automatically recovered.
2. De-energize the rack. SIMADYN D racks do not support hot-swap on communication submodule slots. Full rack power-down is mandatory. Confirm with a meter — do not rely on indicator LEDs alone.
3. Note the slot address and any DIP switch settings on the outgoing module. The 6DD1688-0AE0 may carry hardware address switches depending on the rack revision. Photograph the switch positions before extraction.
4. Extract the module using the ejector levers. Apply even pressure — forced extraction damages the rack connector. If the module is seized, check for retaining screws on the faceplate.
5. Set DIP switches on the replacement unit to match the documented positions before insertion. Mismatched addressing causes the CPU to log a configuration mismatch fault on first boot and may prevent the rack from entering RUN mode.
6. Seat the replacement module firmly until both ejector levers click. A partially seated submodule will pass visual inspection but fail electrically — the most common cause of “replaced the module but still getting faults.”
7. Power up and observe the diagnostic LEDs. The submodule should cycle through its self-test sequence (typically green flash → steady green within 30 seconds). A steady red after self-test indicates a firmware version mismatch between the submodule and the host CPU — check the hardware revision suffix on both units.
8. Reload the parameter set from your backup and perform a communication test cycle before returning the system to production.

Firmware compatibility note: SIMADYN D submodules carry hardware revision identifiers in their firmware. If your replacement unit is from a different production batch than the original, verify the revision suffix (e.g., -0AE0 vs. -0AE1) against your CPU’s compatibility matrix. When in doubt, contact us — we can cross-reference batch data before dispatch.

Reliability in Harsh Conditions

SIMADYN D was engineered for environments that would destroy consumer-grade electronics in hours. The 6DD1688-0AE0 inherits that design philosophy. The PCB substrate is rated for continuous operation at elevated ambient temperatures typical of enclosed drive cabinets — up to 55 °C without derating. Conformal coating on production variants provides a barrier against condensation, airborne particulates, and the corrosive atmospheres found in chemical processing and coastal industrial facilities.

Mechanical robustness is built into the submodule’s form factor. The rack-mount connector system uses a high-cycle-rated edge connector with gold-plated contacts, maintaining reliable signal integrity even in installations subject to continuous vibration — rolling mill drives, compressor skids, and marine propulsion systems where structural vibration is a constant. The module’s faceplate and PCB assembly are designed to withstand the shock loads associated with industrial cabinet doors slamming and forklift traffic in the vicinity of control panels.

Electromagnetic compatibility is non-negotiable in SIMADYN D environments. The module’s shielding and filtering design meets the EMC requirements of industrial automation installations where high-power drives, transformers, and switching equipment generate significant conducted and radiated interference. Field experience across steel and paper industry installations confirms stable communication performance even in electrically noisy environments where lesser modules introduce cyclic errors or require repeated resets.

Global Express Logistics

Stock is held at our Xiamen facility — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Orders confirmed before 14:00 CST are processed for same-day dispatch. Here’s how the logistics chain works from the moment you confirm your order:

• Order confirmation → warehouse pick: Within 2 hours of payment confirmation, the unit is pulled from shelf stock, inspected against the order specification, and staged for packing.
• Export documentation: Commercial invoice, packing list, and any required certificates of origin are prepared in parallel with packing. HS code 8537.10 applies to most destinations — we handle customs documentation as standard.
• Anti-static packing: The module is wrapped in anti-static poly, placed in foam-lined inner packaging, and boxed in a double-wall carton rated for international air freight handling. No shortcuts — damaged-in-transit claims cost everyone time.
• Carrier handoff: DHL Express or FedEx International Priority pickup from our facility. Tracking number issued to you within 4 hours of dispatch.
• Transit times (typical): Southeast Asia 1–2 days | Europe 3–4 days | Americas 3–5 days | Middle East / Africa 4–6 days.
• Customs clearance support: For destinations with complex import requirements (India, Brazil, Russia), we provide pre-shipment documentation packages to minimize customs hold time.

Emergency freight options — including overnight courier to most major industrial hubs — are available on request. If your plant is down and every hour counts, tell us when you contact us and we will prioritize accordingly.
