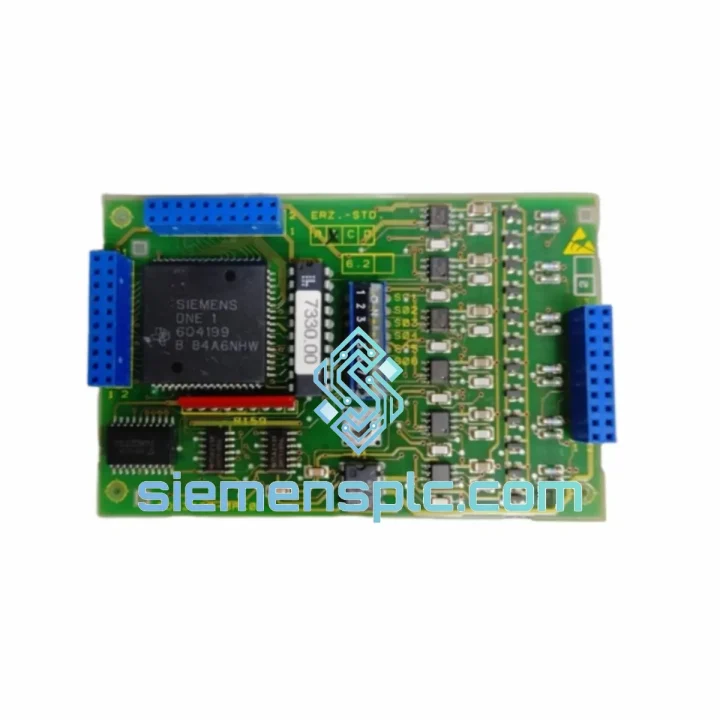

SIEMENS 6DD3460-0AC0 Pulse Sensor Board – SIMADYN D

SIEMENS 6DD3460-0AC0 Pulse Sensor Board: Signal Acquisition Architecture in SIMADYN D Closed-Loop Drive Control

Within a SIMADYN D drive control system, the integrity of speed and position feedback determines the quality of every closed-loop response. The SIEMENS 6DD3460-0AC0 is the hardware interface that bridges the physical encoder output and the digital control processor — a function that sounds straightforward until you examine what it actually demands at the signal level: microsecond-accurate pulse counting, differential line reception under industrial EMC conditions, and seamless handoff to the SIMADYN D backplane without introducing latency jitter that would corrupt the current or speed regulator.

The 6DD3460-0AC0 is a dedicated pulse sensor board designed for integration within the SIMADYN D modular control rack. SIMADYN D was SIEMENS’ high-performance digital drive and process control platform, deployed extensively in steel mills, paper machines, rolling lines, marine propulsion systems, and large-scale power generation installations from the late 1980s through the 2000s. The platform’s architecture separated signal conditioning, computation, and I/O into discrete board-level modules — a design philosophy that maximized serviceability and allowed individual hardware layers to be replaced without disturbing the broader control configuration. The 6DD3460-0AC0 occupies the signal conditioning layer: it receives raw encoder pulses, conditions them to logic-compatible levels, and presents clean digital signals to the SIMADYN D processor boards for position and velocity computation.

For maintenance engineers managing legacy SIMADYN D installations, the 6DD3460-0AC0 is a critical spare. Its failure mode is typically abrupt — a failed differential receiver or a damaged input protection stage produces immediate loss of speed feedback, which in a closed-loop drive manifests as runaway or emergency trip. There is no graceful degradation. This makes sourcing a verified, functional replacement unit a time-sensitive procurement event, not a routine purchase.

At siemensplc.com, we maintain dedicated inventory of SIMADYN D components including the 6DD3460-0AC0, sourced through verified industrial channels and inspected prior to dispatch. Our technical team can confirm compatibility with your specific SIMADYN D rack revision and encoder configuration before shipment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6DD3460-0AC0’s design reflects the engineering constraints of high-performance drive control: the board must deliver pulse data to the processor with deterministic timing while operating in an electrical environment dominated by PWM switching noise, motor cable capacitance, and ground potential differences between the encoder and the control cabinet.

Differential Input Reception and Line Termination. The board’s primary input stage uses RS-422 differential line receivers for TTL encoder signals. Differential reception rejects common-mode noise — the dominant interference mechanism in drive cabinets where motor cables run parallel to signal cables. The receiver’s common-mode rejection ratio (CMRR) suppresses noise voltages that would corrupt single-ended inputs, allowing reliable pulse acquisition even when encoder cable runs exceed 50 meters. On-board line termination resistors (typically 120 Ω, matched to cable characteristic impedance) prevent signal reflections at the input that would otherwise cause false edge counts at high pulse frequencies.

Input Protection Architecture. Before the differential receivers, the input stage incorporates transient voltage suppression (TVS) diodes and series current-limiting resistors. This protection layer absorbs electrostatic discharge events and inductive transients from encoder cable disconnection under power — a common field occurrence during maintenance. Without this stage, a single cable swap event could destroy the receiver IC and render the board non-functional.

Optical Isolation Barrier. The conditioned pulse signals cross an optical isolation barrier before entering the SIMADYN D backplane logic domain. This galvanic break eliminates ground loop currents between the encoder’s mechanical ground reference (typically the motor frame) and the control rack’s signal ground. In large drive systems where motor frames may float at tens of volts relative to control cabinet ground, this isolation is not optional — it is the difference between reliable operation and chronic noise-induced faults.

Quadrature Decode Logic. The board implements hardware quadrature decoding of the A and B encoder channels, producing direction-qualified pulse counts that the SIMADYN D processor reads via the backplane. Hardware decoding offloads this function from the processor, ensuring that no pulses are missed during processor interrupt latency peaks — a critical requirement in high-speed applications where encoder frequencies approach the 500 kHz input limit.

Zero-Pulse (Z-Channel) Handling. The index or zero-pulse channel is processed through a dedicated input path with edge-detection logic. This channel is used for absolute position referencing on startup and for periodic position error correction in high-precision applications. The dedicated path ensures the Z-pulse is captured with the same timing accuracy as the incremental channels, without being masked by A/B channel processing activity.

EMC Compliance by Design. The PCB layout follows SIEMENS’ internal EMC design rules for industrial control boards: ground planes are continuous beneath high-frequency signal traces, decoupling capacitors are placed at each IC power pin, and the board edge connectors include filtered ground connections that bond the module to the rack’s shielding structure. These measures ensure the board meets EN 61800-3 Category C2 conducted and radiated emission limits when installed in a compliant SIMADYN D cabinet.

System Integration Benefits

• Deterministic Feedback Latency: Hardware quadrature decoding and direct backplane data transfer eliminate software polling delays, delivering encoder data to the speed regulator within a fixed, predictable time window — typically one sample period of the SIMADYN D processor cycle (1–4 ms depending on configuration).
• High-Resolution Velocity Estimation: By counting encoder pulses over a fixed sample interval, the SIMADYN D processor derives velocity with a resolution proportional to encoder line count. The 6DD3460-0AC0’s 500 kHz input bandwidth supports high-line-count encoders (1024–4096 PPR) without pulse loss, enabling smooth low-speed torque control.
• Noise-Immune Signal Path: The differential input and optical isolation stages provide a signal path that maintains BER (bit error rate) below measurable thresholds in standard industrial EMC environments, eliminating spurious speed spikes that would otherwise trigger drive faults or degrade regulator performance.
• Plug-In Serviceability: The board’s single-slot form factor allows hot-swap replacement in racks equipped with the appropriate backplane connectors, minimizing downtime during corrective maintenance. No re-parameterization of the drive is required — the replacement board assumes the same hardware function immediately upon insertion.
• Multi-Encoder Type Compatibility: Support for both TTL (5 V differential) and HTL (10–30 V) encoder standards from a single board type reduces spare-parts inventory complexity. One 6DD3460-0AC0 can interface with the majority of incremental encoders used in industrial drive applications.
• Diagnostic Transparency: The SIMADYN D system can detect encoder signal loss (missing A/B channels) and wire-break conditions through the board’s input monitoring logic, generating specific fault codes that maintenance personnel can use to distinguish between encoder failure, cable fault, and board failure — reducing mean time to repair (MTTR).
• Position Reference Integrity: Accurate Z-pulse capture ensures that homing and referencing cycles in position-controlled applications complete correctly on every power cycle, preventing cumulative position errors that would otherwise require manual correction.
• Legacy System Life Extension: Availability of verified 6DD3460-0AC0 units through siemensplc.com allows plant operators to extend the operational life of SIMADYN D-based drive systems without committing to a full platform migration — deferring capital expenditure while maintaining production continuity.
