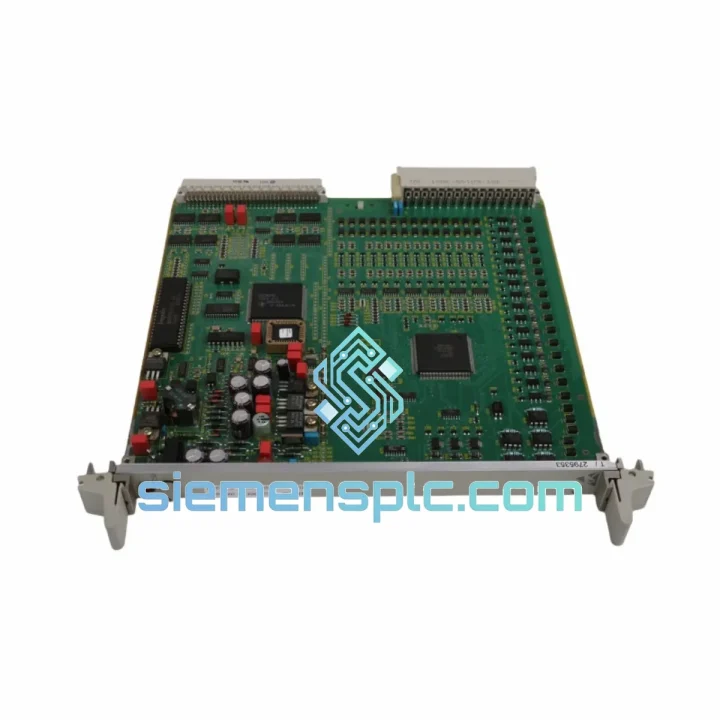

Siemens 6DD7050-0AA50 Measuring Processor Module – SIMATIC TDC

Siemens 6DD7050-0AA50 — Measuring Processor Module for SIMATIC TDC High-Speed Closed-Loop Control

The Siemens 6DD7050-0AA50 is a dedicated Measuring Processor Module engineered for the SIMATIC TDC (Technology and Drive Control) platform — Siemens’ purpose-built architecture for high-performance drive coordination, precision measurement, and deterministic closed-loop control in heavy industrial environments. Unlike general-purpose I/O modules, the 6DD7050-0AA50 is architected around a co-processor model: it offloads time-critical measurement tasks from the central CPU, enabling the TDC rack to sustain sub-millisecond cycle times across multiple control loops simultaneously without jitter accumulation.

This module occupies a single slot in the SIMATIC TDC standard rack and interfaces directly with the TDC backplane bus, exchanging process data with the CPU module (6DD1607 series) at deterministic intervals governed by the rack’s global synchronization clock. Its onboard signal conditioning circuitry accepts encoder feedback, analog measurement inputs, and pulse-train signals, converting raw field data into engineering-unit values that the CFC (Continuous Function Chart) program can consume within the same scan cycle. The hardware revision suffix -0AA50 identifies a specific production generation with updated ASIC firmware and improved EMC shielding compared to earlier -0AA40 and -0AA30 variants.

Applications span steel rolling mill speed regulation, paper machine draw control, cement kiln drive synchronization, turbine governor loops, and any process where measurement latency directly translates to product quality deviation or mechanical stress. The module ships from Xiamen, China with a 12-month warranty and full ESD-compliant packaging.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6DD7050-0AA50 implements a co-processor offload architecture that is architecturally distinct from passive I/O modules. At its core sits a dedicated signal-processing ASIC that handles encoder decoding, pulse counting, and analog-to-digital conversion independently of the TDC CPU’s main scan cycle. This separation is deliberate: it prevents measurement jitter caused by CPU load fluctuations — a critical requirement in drive synchronization where a 50 µs timing error at a rolling mill can translate to strip thickness deviation exceeding tolerance bands.

Backplane Bus Arbitration: The module participates in the TDC rack’s time-division multiplexed backplane protocol. Each module is assigned a fixed time slot within the global synchronization frame, ensuring that data exchange between the measuring processor and the CPU occurs at a deterministic offset — not on a best-effort basis. This is fundamentally different from PROFIBUS or PROFINET field communication, where network load affects latency. The backplane operates at a fixed clock rate, and the 6DD7050-0AA50’s onboard buffer logic pre-stages measurement results so they are available at the exact moment the CPU’s data acquisition window opens.

EMC Design: The -0AA50 hardware revision incorporates a multi-layer PCB with dedicated ground planes separating the analog front-end from the digital processing section. Ferrite bead filtering is applied at all signal entry points, and the module’s front connector shield is bonded to the rack’s PE rail through the module’s mechanical latch — providing a low-impedance path for high-frequency interference currents without routing them through the signal ground. This design allows the module to maintain measurement accuracy in environments with variable-frequency drive (VFD) switching noise up to the levels specified in EN 61000-6-2.

Encoder Interface Logic: The incremental encoder input stage uses differential line receiver ICs (RS-422 compatible) with hardware quadrature decoding. The ASIC counts encoder pulses at the hardware clock rate — not in software — eliminating the count-loss risk that software-based pulse counting faces at high encoder frequencies. For absolute encoders, the module supports SSI (Synchronous Serial Interface) protocol with configurable bit-length and clock rate, handled entirely in hardware.

Thermal Management: The module’s power dissipation is concentrated in the ASIC and the analog conditioning section. The PCB layout routes high-dissipation components toward the module’s top edge, where convective airflow in a standard TDC rack cabinet is highest. No active cooling fan is required within the module itself; the rack’s forced-air system is sufficient for the rated 0–55 °C ambient range.

System Integration Benefits

• Deterministic Measurement Latency: Hardware-level encoder decoding and fixed backplane time-slot assignment guarantee that measurement data reaches the CPU within a bounded, repeatable delay — essential for cascade control loops where inner-loop bandwidth determines outer-loop stability margins.
• CPU Load Decoupling: By executing signal conditioning and unit conversion on its own ASIC, the module prevents measurement tasks from consuming CPU scan time. This allows the TDC CPU to maintain its configured cycle time even as the number of measured variables increases.
• Diagnostic Transparency: The module exposes hardware-level diagnostic bits — encoder wire-break detection, signal amplitude monitoring, and overflow flags — directly into the TDC process image. CFC programs can read these flags without additional diagnostic function blocks, reducing engineering effort and improving fault response time.
• Scalable Multi-Axis Measurement: Multiple 6DD7050-0AA50 modules can be installed in the same TDC rack, each handling a separate measurement channel group. The backplane arbitration protocol scales linearly; adding modules does not degrade the timing performance of existing modules.
• Firmware Revision Traceability: The -0AA50 suffix identifies a specific ASIC firmware generation. This allows maintenance teams to document the exact hardware configuration of a control system and reproduce it precisely during spare-parts replacement — critical for systems operating under functional safety documentation requirements.
• Seamless CFC Integration: The module’s process data appears as standard CFC function block inputs and outputs. No custom driver code or special library is required; the TDC engineering tool automatically generates the I/O mapping based on the module’s slot position and hardware configuration parameters.
• Compatibility with Redundant TDC Configurations: In hot-standby TDC rack configurations, the measuring processor module participates in the rack’s redundancy switchover protocol. Measurement data is mirrored to the standby CPU at each synchronization cycle, ensuring bumpless transfer when the active CPU fails.
• Long-Term Spare Parts Availability: Siemens maintains the SIMATIC TDC platform for installed-base customers with extended product lifecycle commitments. The 6DD7050-0AA50 is available through authorized distributors and specialist industrial suppliers, with siemensplc.com maintaining stock for rapid dispatch to minimize plant downtime.

Quality Assurance & Global Logistics

Every Siemens 6DD7050-0AA50 unit dispatched from siemensplc.com is sourced as genuine Siemens OEM hardware. Units undergo incoming inspection that includes visual examination of the PCB, connector pin integrity check, and a functional power-on test against known-good reference signals before being cleared for stock. Refurbished units additionally undergo a 48-hour burn-in cycle at elevated temperature to screen for early-life component failures.

Packaging follows IEC 61340-5-1 ESD protection requirements: each module is sealed in a conductive poly bag, placed in anti-static foam, and boxed in double-wall corrugated carton with corner protection. Shipments from our Xiamen, China warehouse are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited depending on destination and urgency. Standard transit times are 3–5 business days to Europe and North America, 2–4 business days to Southeast Asia and the Middle East.

Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment. For customers requiring DDP (Delivered Duty Paid) terms, we coordinate customs clearance and duty payment in advance, eliminating import delays at the destination port. HS Code 8537.10 applies to this module for most jurisdictions; buyers should verify with their local customs authority.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as defined in the Siemens product documentation. Warranty claims are processed with a target replacement dispatch of 5 business days from confirmed fault diagnosis. Test reports and batch traceability documentation are available upon request for customers operating under ISO 9001 or IEC 61511 quality management frameworks.
