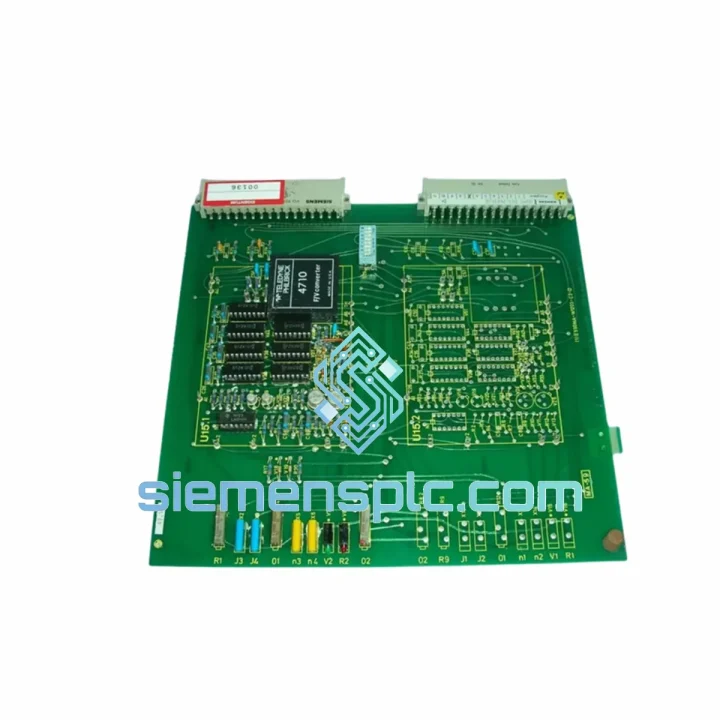

SIEMENS 6DM1001-7WA14-0 Modulpac Control Module

SIEMENS 6DM1001-7WA14-0 Modulpac S5 Control Module – Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. A failed 6DM1001-7WA14-0 in a SIMATIC S5 Modulpac rack doesn’t just halt one machine — it can cascade into a full process shutdown across your entire plant. We stock this module in Xiamen and ship globally within 24 hours of order confirmation. No waiting weeks for OEM lead times. No compromising on authenticity. You get the exact module, tested and ready to drop in.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on SIMATIC S5 Modulpac systems, here’s what actually goes wrong with the 6DM1001-7WA14-0 and what you need to watch before you swap it out:

Common Failure Signatures

• SF (System Fault) LED solid red on CPU rack — often the first sign the Regelsystem module has lost communication with the backplane. Don’t assume it’s the CPU; isolate the 6DM1001 slot first.
• Oscillating or unstable PID output — if your control loop was tuned and suddenly goes erratic without setpoint changes, suspect the analog output section of this module. Check for capacitor degradation on older units.
• Module not recognized after power cycle — SIMATIC S5 Modulpac uses a slot-based addressing scheme. If the rack doesn’t enumerate the module on boot, verify the slot address DIP switches on the module edge match your original configuration before condemning the hardware.
• Intermittent BASP (block all pulses) faults — common in high-vibration environments where the edge connector develops micro-fretting. Clean the gold fingers with IPA before seating the replacement.

Pre-Replacement Checklist

• 📋 Document the existing DIP switch positions on the failed module before removal — photograph both sides.
• 📋 Note the slot number in the Modulpac rack; the 6DM1001-7WA14-0 is slot-position sensitive in multi-module configurations.
• 📋 Verify firmware revision compatibility if your rack runs mixed-generation Modulpac modules. Mismatched firmware revisions between the Regelsystem module and the CPU can cause initialization hangs.
• 📋 Power down the rack fully before extraction — hot-swap is not supported on this module family.
• 📋 After seating the replacement, perform a cold restart (STOP → RUN) and monitor the SF LED for the first 60 seconds. A clean boot with SF extinguishing within 10 seconds confirms successful enumeration.
• 📋 Re-validate your PID loop tuning parameters after replacement — even identical hardware revisions can have minor analog offset differences requiring a trim.

STEP 5 Configuration Note

The 6DM1001-7WA14-0 is configured via SIEMENS STEP 5 software using the COM REGELSYSTEM tool. If your replacement module has a different hardware revision suffix, re-run the module parameterization block (DB assignment) to ensure the control parameters are correctly loaded. Do not assume the existing DB is compatible without verification.

Reliability in Harsh Conditions

The SIMATIC S5 Modulpac platform was engineered for environments that would destroy consumer-grade electronics. The 6DM1001-7WA14-0 is built to the same industrial-grade specification:

• Vibration resistance — Designed to IEC 60068-2-6 sinusoidal vibration profiles. The module’s conformal-coated PCB and mechanically secured edge connector maintain signal integrity in pump stations, compressor rooms, and rolling mill control cabinets where vibration is constant.
• Thermal cycling tolerance — Rated for 0–60 °C continuous operation. The power regulation circuitry is designed to handle the thermal cycling typical of batch-process plants where the control cabinet heats up during production and cools overnight.
• Humidity and contamination — The conformal coating on the PCB provides protection against condensation and airborne particulates common in paper mills, chemical plants, and coastal installations. Rated to 95% RH non-condensing.
• EMC immunity — Compliant with EN 61000 series EMC requirements. The module maintains stable operation in environments with significant electrical noise from variable-frequency drives, contactors, and high-current switching equipment sharing the same cabinet.
• Long-term component stability — SIEMENS selected industrial-grade passive components with extended temperature ratings and long MTBF specifications. This is why 6DM1001 series modules from the 1990s are still running in active production today.

Every unit we ship from Xiamen is inspected for physical integrity — connector pins, PCB condition, and component seating — before it leaves our warehouse. Refurbished units undergo functional power-on verification and are packed in anti-static ESD bags with foam cushioning.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for fast international dispatch. Here’s how your order moves from our shelf to your plant floor:

• Order confirmation → same-day pick & pack — Orders confirmed before 14:00 CST are picked, inspected, and packed the same business day.
• DHL Express / FedEx International Priority — We ship via DHL Express or FedEx IP depending on destination. Both services provide door-to-door tracking and customs clearance support.
• Transit times — Southeast Asia: 1–2 business days. Europe: 3–5 business days. North America: 3–5 business days. Middle East & Africa: 4–6 business days.
• Export documentation — Commercial invoice, packing list, and country-of-origin certificate provided as standard. For regulated destinations, we can prepare additional customs documentation on request.
• Customs HS code — Shipped under HS 8537.10 (boards, panels, consoles for electric control). We have experience clearing this product category through major customs jurisdictions without delays.
• Tracking notification — AWB number sent to your email within 2 hours of dispatch. Real-time tracking link provided.

If your plant is facing an active shutdown, contact us directly on WhatsApp for priority processing. We have expedited same-day dispatch available for confirmed emergency orders.
