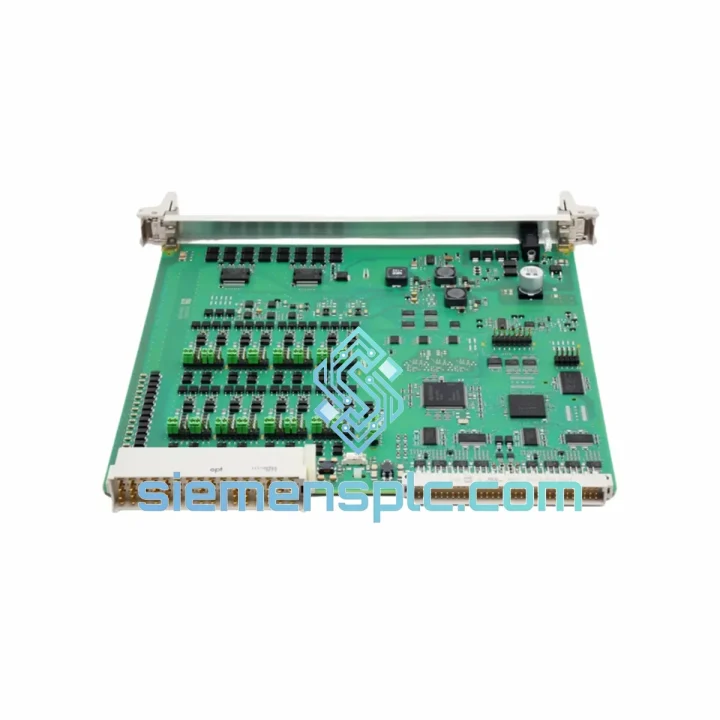

Siemens 6DP1230-7AA Analog Encoder Module

Siemens 6DP1230-7AA — Stop the Clock on Your Downtime

Every minute your line sits idle costs real money. A failed encoder preparation module in a SIMATIC TDC system doesn’t just halt one axis — it can bring down an entire synchronized drive train. The Siemens 6DP1230-7AA is in stock at our Xiamen warehouse right now. Same-day dispatch available. While your competitors wait 8–12 weeks for factory lead time, your line is back running.

This is not a grey-market substitute. This is 100% original Siemens hardware, sourced through verified industrial channels, inspected on arrival, and ready to drop into your TDC subrack the moment it lands on your dock.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 6DP1230-7AA sits at the front end of your encoder feedback chain. When it fails, the symptoms are rarely subtle — you’ll typically see one or more of the following before the module gives up entirely:

• F-alarm on drive: encoder signal fault — The TDC CPU loses the sinusoidal 1 Vpp signal. Check the module’s front-panel LED status first. A solid red or no LED at all points directly at the module, not the encoder cable.
• Oscillating position actual value — Intermittent contact on the backplane connector. Before condemning the module, reseat it firmly. If the fault clears momentarily and returns, the module’s edge connector is worn. Replace.
• Axis drifts at standstill — The interpolation circuit inside the 6DP1230-7AA is degrading. This is a classic end-of-life failure mode on units with 10+ years of continuous operation in high-vibration environments.
• Commissioning after swap — critical steps:
  1. Power down the TDC rack completely before removing the old module. Hot-swap is not supported on this slot type.
  2. Note the slot address before removal. The 6DP1230-7AA uses rack-based addressing — the replacement must go back into the exact same slot number, or you will need to update the hardware configuration in STEP 7 / TDC engineering software.
  3. After insertion, perform a cold restart of the TDC CPU. Do not rely on a warm restart — the encoder module initialization sequence requires a full power cycle.
  4. Verify encoder signal amplitude via the TDC diagnostic screen before enabling the drive. Target: 1 Vpp ±10%. Anything outside this range indicates a cable or encoder issue, not the module.
  5. If the system uses firmware version matching, confirm the TDC CPU firmware is compatible with the replacement module hardware revision. Check the module’s nameplate revision letter against your project documentation.

Replacement time for an experienced technician: approximately 20–35 minutes including power-down, swap, cold restart, and signal verification. Budget an additional 30–60 minutes if a STEP 7 hardware config update is required.

Reliability in Harsh Conditions

The SIMATIC TDC platform was engineered for the most demanding continuous-process industries — steel mills, paper machines, and heavy-drive applications where ambient conditions would destroy consumer-grade electronics within weeks. The 6DP1230-7AA reflects that design philosophy.

The module’s analog signal conditioning circuitry is housed in a fully enclosed metal carrier that provides both EMI shielding and mechanical protection. In rolling mill environments where airborne metallic dust is a constant threat, this enclosure prevents conductive contamination from reaching the signal processing components. The backplane connector uses gold-plated contacts rated for thousands of insertion cycles — a detail that matters when the module is pulled for inspection during scheduled maintenance shutdowns.

Thermal performance is equally robust. The module is rated for continuous operation across the full industrial temperature range. In practice, units installed in poorly ventilated control cabinets adjacent to drive heat sinks routinely outlast their rated service life when the rack fan units are maintained. The failure mode we see most often in thermally stressed units is capacitor degradation in the power supply section — a slow drift in signal conditioning accuracy that shows up as subtle position errors before becoming a hard fault.

Vibration resistance meets IEC 60068-2-6 test profiles. For crane and hoist applications where the control cabinet itself is mounted on the moving structure, this is not a theoretical specification — it is the difference between a module that survives a 10-year service life and one that develops intermittent faults within 18 months.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items ordered before 15:00 CST. Here is exactly what happens after you confirm your order:

• Day 0 (Order Confirmed): Module pulled from shelf, inspected, photographed, and packed in anti-static foam with outer carton. Export documentation prepared — commercial invoice, packing list, and certificate of origin issued same day.
• Day 1 (Dispatch): Shipment handed to DHL Express or FedEx International Priority, depending on destination and your preference. Tracking number issued within 2 hours of pickup scan.
• Day 2–4 (Transit): Direct routing from Xiamen Gaoqi International Airport. No consolidation hubs, no unnecessary transshipment. DHL Express typically delivers to major industrial hubs in Europe in 3 business days; Southeast Asia in 2; North America in 4–5.
• Customs Clearance: We pre-declare HS code and provide all required documentation to minimize customs hold risk. For EU importers, we can provide EUR.1 movement certificates where applicable. For US importers, we include all data required for formal entry.
• Emergency Freight: For genuine production-down situations, contact us directly on WhatsApp. We have arranged next-flight-out courier shipments for customers facing critical downtime — this is not a standard service, but we understand that sometimes the cost of one more day offline exceeds the cost of premium freight by an order of magnitude.

We ship to over 60 countries. If you have a freight forwarder or preferred carrier account, we can ship on your account number — just provide the details at order confirmation.
