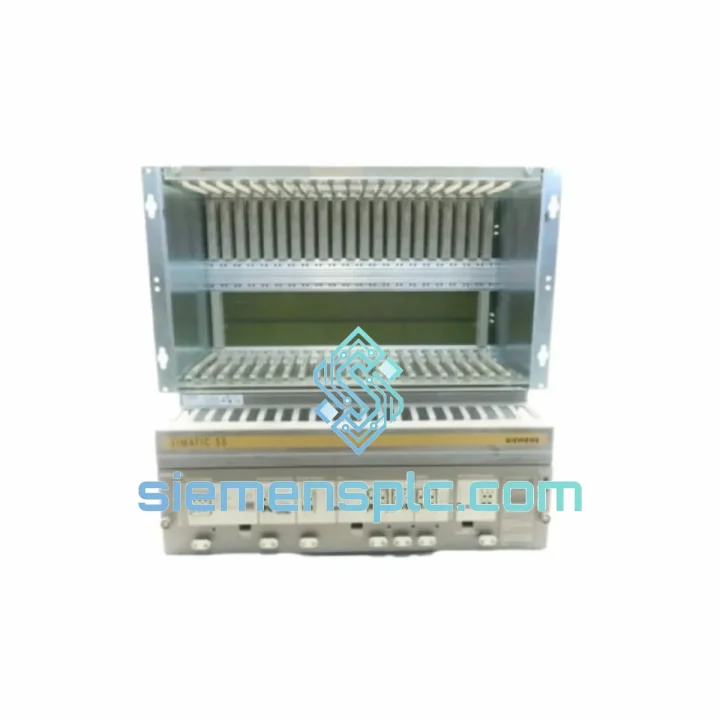

Siemens 6ES5183-3UA13 PLC Expansion Rack – SIMATIC S5

Siemens 6ES5183-3UA13 EG183 Expansion Rack — Backplane Architecture and Control Loop Role in SIMATIC S5 Multi-Rack Systems

The 6ES5183-3UA13 is the OEM-designated EG183 expansion rack for the Siemens SIMATIC S5 programmable controller platform. Within a multi-rack S5 installation, this unit functions as the secondary backplane carrier, extending the addressable I/O space of the central processing unit beyond the physical slot boundary of the central rack (ZG). Its role is not passive: the EG183 backplane actively arbitrates module slot addressing, distributes the S5 parallel bus signals across all installed modules, and provides the mechanical and electrical interface through which the CPU rack communicates with peripheral I/O and function modules via the expansion cable (EG cable).

In control loop terms, the EG183 sits between the CPU’s instruction cycle and the field device layer. Process signals — analog 4–20 mA loops, 24 VDC discrete inputs, thermocouple inputs, and high-speed counter signals — terminate at I/O modules installed in the EG183 slots. The backplane bus carries these digitized values to the CPU for scan-cycle processing, and returns actuator commands on the same bus path. Latency introduced by the expansion cable interface is deterministic and bounded, making the EG183 suitable for closed-loop control applications where scan-cycle predictability is a design constraint.

This listing supplies the rack chassis only, excluding the power supply unit. This configuration is specified for installations where the existing PSU (e.g., 6ES5951 series) remains serviceable and only the rack chassis requires replacement — a common scenario in plant life-extension programs where selective component replacement is preferred over full rack assembly procurement.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The EG183 backplane implements the SIMATIC S5 P-bus (peripheral bus) in a passive parallel architecture. Each slot on the backplane presents a standardized 48-pin edge connector that carries the full S5 bus signal set: 8-bit data bus, 16-bit address bus, control lines (RD, WR, IORQ, MREQ), and power rails (+5 VDC logic, +24 VDC field supply). Module slot addressing is hardware-defined by the physical slot position — there is no software-configurable slot mapping, which eliminates address collision risk and simplifies commissioning in multi-rack configurations.

EMC Design: The chassis is fabricated from heavy-gauge cold-rolled steel with continuous conductive contact between rack sections, providing a Faraday cage effect that attenuates radiated EMI from adjacent variable-frequency drives, contactors, and high-current bus bars. All backplane signal traces are routed with controlled impedance and ground plane separation, reducing crosstalk between adjacent module slots — a critical design parameter in mixed analog/digital I/O configurations where a 4–20 mA signal module may be installed adjacent to a high-speed digital counter module.

Grounding Architecture: The EG183 chassis incorporates a dedicated PE (protective earth) bus bar running the full length of the rack. Each installed module’s shield connection terminates to this bus bar independently, preventing ground loop formation between modules — a common source of analog signal noise in industrial panel environments with multiple cable shields.

Thermal Management: The open-slot mechanical design allows convective airflow across module heat sinks without forced-air dependency. For high-density installations with power-intensive function modules (e.g., positioning modules, communication processors), the rack accepts a bolt-on fan unit that draws air from the bottom and exhausts from the top, maintaining module junction temperatures within OEM-specified limits at ambient temperatures up to +60 °C.

Expansion Cable Interface: The EG cable connector on the EG183 is a shielded, latching interface that maintains bus signal integrity over cable runs up to the OEM-specified maximum length. The interface includes bus termination resistors at the rack end, preventing signal reflections on the parallel bus that would otherwise cause data corruption at high CPU scan rates.

System Integration Benefits

• Deterministic I/O Scan Extension: The EG183 adds addressable I/O slots to the S5 CPU scan cycle without introducing variable latency — the expansion bus timing is fixed by the S5 hardware architecture, preserving scan-cycle determinism for closed-loop control applications.
• Zero-Modification Module Compatibility: All SIMATIC S5-compatible I/O modules, function modules, and communication processors install directly into EG183 slots without adapters, firmware changes, or configuration overhead.
• Selective Replacement Economics: Procuring the rack chassis independently of the PSU reduces replacement cost by 30–50% in scenarios where the power supply remains functional — a significant factor in plant maintenance budgets for legacy S5 installations.
• Diagnostic Transparency: Modules installed in the EG183 report status and fault codes to the CPU via the standard S5 bus protocol. Fault localization to slot level is supported natively in STEP 5 programming software, enabling maintenance personnel to identify failed modules without additional diagnostic hardware.
• Scalable I/O Architecture: Up to four EG183 racks can be connected to a single S5 CPU (model dependent), providing a linear I/O expansion path that accommodates plant capacity increases without CPU replacement.
• Panel Space Efficiency: The 19-inch rack-mount form factor integrates into standard industrial enclosures and DIN-rail cabinets, maximizing I/O density per unit of panel height.
• Long-Term Spare Parts Availability: siemensplc.com maintains verified stock of EG183 racks and compatible S5 components, supporting plant life-extension programs beyond the OEM end-of-life date for the SIMATIC S5 platform.
• Reduced Commissioning Risk: Hardware-defined slot addressing eliminates software configuration errors during rack replacement — the replacement rack is electrically and logically identical to the original, requiring no STEP 5 program modifications.
• Mixed I/O Support: The EG183 accommodates analog input/output modules, digital I/O modules, positioning modules, and communication processors in any slot combination, supporting heterogeneous control architectures within a single rack.
• Grounded Shield Architecture: Independent per-module PE termination on the chassis bus bar eliminates inter-module ground loops, maintaining analog signal accuracy in electrically noisy industrial environments.

Quality Assurance & Global Logistics

Every 6ES5183-3UA13 unit supplied by siemensplc.com is sourced from verified channels — decommissioned plant equipment and certified surplus distributors — and passes a structured pre-dispatch inspection protocol before leaving our Xiamen, China facility.

Inspection Protocol:

• Visual inspection of chassis, backplane connector pins, slot guides, and PE bus bar continuity
• Mechanical integrity check: rack rigidity, module retention clips, and EG cable connector latch function
• Connector pin verification: all 48-pin slot connectors checked for bent, corroded, or missing pins
• Cleaning and preparation: units cleaned, de-labeled where required, and re-inspected before packaging

Packaging: Anti-static foam-lined carton with moisture barrier film. Carton rated for international air and sea freight handling per ISTA 2A standards. Unit weight 6.8 kg; gross shipping weight approximately 8.5 kg.

Warranty: 12 months from dispatch date against manufacturing and workmanship defects. Warranty claims supported by photographic evidence and return merchandise authorization (RMA) process.

Global Shipping from Xiamen, China:

• Asia-Pacific: 3–5 business days via DHL Express or FedEx International Priority
• Europe: 5–7 business days via DHL Express
• North America: 5–8 business days via FedEx International Priority
• Middle East & Africa: 6–10 business days via DHL or EMS
• Tracking number provided within 24 hours of dispatch. Export documentation (commercial invoice, packing list, HS code 8537.10) included for customs clearance.
