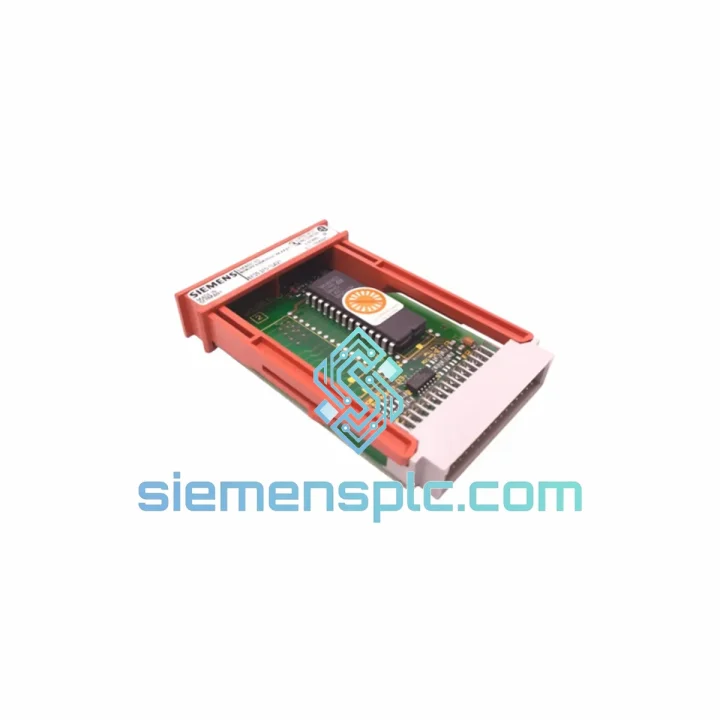

Siemens 6ES5375-1LA21 EPROM Memory Module – SIMATIC S5

Siemens 6ES5375-1LA21 – 64 KB EPROM Program Memory for SIMATIC S5 Control Architecture

The 6ES5375-1LA21 is a 64 KB UV-erasable EPROM memory module engineered for the Siemens SIMATIC S5 programmable controller family. Within the S5 control architecture, this module occupies the program memory slot of the central processing unit rack, serving as the sole authoritative source of executable user code during every scan cycle. Unlike battery-backed RAM configurations, the EPROM substrate retains its charge state without any auxiliary power path, making it the preferred storage medium in installations where maintenance intervals are long, ambient temperatures fluctuate, or battery replacement logistics are operationally impractical.

The module interfaces directly with the S5 CPU backplane bus via a 48-pin DIP socket, presenting its memory array to the CPU address decoder as a contiguous, read-only address space. During cold start, the CPU’s bootstrap loader maps this address space to the program execution pointer, eliminating the RAM-load phase that characterizes battery-backed configurations. This architectural distinction reduces cold-start latency and removes one class of potential startup failure — corrupted RAM content following a battery depletion event.

In process industries where SIMATIC S5 systems remain embedded in certified safety loops or legacy DCS hybrid architectures, the 6ES5375-1LA21 provides a deterministic, tamper-resistant program store. The UV-erasure mechanism requires deliberate physical intervention — exposure to a 253.7 nm UV source for 15 to 30 minutes — ensuring that field personnel cannot inadvertently overwrite control logic through software commands alone. This characteristic is valued in regulated environments where program integrity audits are mandatory.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES5375-1LA21 is built on a floating-gate NMOS EPROM cell array. Each storage cell consists of a floating-gate transistor whose threshold voltage is shifted by injecting charge through Fowler-Nordheim tunneling during the programming cycle. The charge is retained by the silicon dioxide insulation surrounding the floating gate, with a calculated retention half-life exceeding 10 years at 25°C under zero-bias conditions. This physical storage mechanism is fundamentally different from SRAM or DRAM — there is no refresh cycle, no charge pump, and no dependency on an external power rail to maintain data integrity.

EMC Design Characteristics: The module’s passive read-only architecture contributes directly to its electromagnetic compatibility profile. Because the EPROM array generates no switching noise during normal read operations — the address and data lines are driven by the CPU, not the module — the 6ES5375-1LA21 does not introduce additional conducted or radiated emissions into the S5 backplane. In environments with high electromagnetic interference (arc welding stations, variable-frequency drives, high-voltage switchgear), this passive characteristic reduces the risk of data corruption events that can affect active memory technologies.

Address Decoding and Bus Arbitration: Within the S5 CPU rack, the memory module responds to a fixed address range decoded by the CPU’s internal memory management logic. The 6ES5375-1LA21 presents a 64 KB window to the CPU’s program memory address space. The CPU’s bootstrap sequence maps this window to the instruction fetch pointer at power-on, and the scan cycle executes directly from the EPROM array without staging to RAM. This eliminates the RAM-load verification step and reduces the number of memory transactions required per scan cycle, contributing to deterministic cycle time behavior.

UV Erase Window and Program Integrity: The ceramic package incorporates a quartz glass window positioned directly above the die. This window transmits UV radiation at 253.7 nm with sufficient intensity to photo-ionize the trapped charge on the floating gates, returning all cells to a logic ‘1’ state (erased condition). The erase process is uniform across the entire array — partial erasure is not possible, which enforces a complete program replacement discipline. This characteristic prevents incremental, untracked modifications to control logic, supporting change management requirements in ISO 9001 and IEC 62443 compliant facilities.

System Integration Benefits

• Battery-Independent Program Retention: Eliminates the battery maintenance schedule associated with SRAM-backed memory modules. In remote installations — offshore platforms, unmanned pump stations, mountain-top relay stations — this removes a recurring maintenance task and the associated risk of program loss following battery depletion.
• Deterministic Cold-Start Behavior: The CPU executes directly from the EPROM address space at power-on. There is no RAM-load phase, no checksum verification delay, and no dependency on a secondary storage device. Cold-start time is bounded and repeatable, which is critical in applications where the control system must reach operational state within a defined window after power restoration.
• Tamper-Evident Program Storage: Physical UV erasure is required to modify the stored program. Software commands cannot overwrite EPROM content. This provides a hardware-enforced barrier against unauthorized program modification, supporting cybersecurity requirements in IEC 62443-3-3 compliant architectures.
• Reduced Scan Cycle Jitter: Direct execution from the EPROM array eliminates the memory arbitration overhead associated with shared-bus RAM configurations. The CPU’s instruction fetch latency is fixed at the EPROM access time (≤200 ns), contributing to lower scan cycle jitter in time-critical control loops.
• Simplified Spare Parts Management: A single 6ES5375-1LA21 module, stored in anti-static packaging, constitutes a complete program backup for an S5 installation. No separate backup device, no battery, no periodic verification procedure. The module can be installed in a replacement CPU and the system is operational immediately.
• Long-Term Availability for Legacy S5 Fleets: SIMATIC S5 systems remain in service across petrochemical, power generation, and heavy manufacturing facilities with planned operational lifetimes extending to 2030 and beyond. Maintaining a verified supply of 6ES5375-1LA21 modules supports MRO strategies for these long-lifecycle assets without requiring a full control system migration.
• Compatibility Across S5 CPU Variants: The module is compatible with the S5-115U, S5-135U, and S5-155U CPU families, covering the majority of mid-range and high-end SIMATIC S5 installations. A single module type serves multiple system configurations, simplifying spare parts inventory management for multi-site operators.
• Diagnostic Transparency: The EPROM module’s fixed, read-only content provides a stable reference for program integrity diagnostics. If the CPU reports a program memory error, the fault is unambiguously localized to the module or the backplane interface — not to a software state or battery condition. This reduces mean time to diagnose (MTTD) in fault scenarios.
