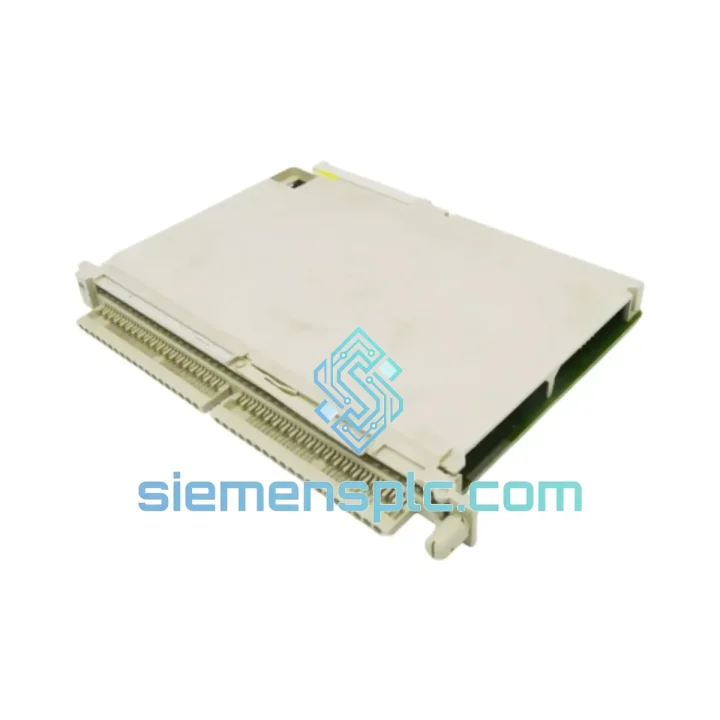

Siemens 6ES5420-4UA13 — 32-Channel Transistor Output Module for SIMATIC S5 Control Systems

The 6ES5420-4UA13 occupies a well-defined position in the SIMATIC S5 I/O architecture: it is the field-side termination point for discrete control signals originating from the S5-115U, S5-135U, and S5-155U central processing units. Each of its 32 channels drives a PNP transistor switch rated at 24 VDC / 0.5 A, sourcing current to actuators, solenoid valves, motor contactors, and indicator lamps. The aggregate output capacity of 16 A per module allows dense field wiring without intermediate relay amplifiers in the majority of industrial load profiles.

Within a control loop, this module sits between the CPU’s output image register and the physical process. On every scan cycle, the CPU writes a 32-bit output word to the module’s internal latch via the S5 parallel I/O bus. The latch drives the gate of each transistor through an optocoupler stage, maintaining galvanic separation between the 5 VDC backplane logic domain and the 24 VDC field domain. This boundary is not merely a protection measure — it is the architectural guarantee that a field-side wiring fault, a load short, or a ground potential difference cannot corrupt the CPU’s internal state or the backplane communication integrity.

For procurement engineers managing brownfield S5 installations, the 6ES5420-4UA13 is a direct slot-compatible replacement for earlier 4UA1x variants. No STEP 5 hardware configuration change is required; the module occupies the same slot address and presents an identical register map to the CPU. This characteristic makes it the lowest-risk spare-parts choice for facilities where unplanned downtime carries significant production cost.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The internal signal path of the 6ES5420-4UA13 follows a three-stage architecture: bus interface logic → optocoupler array → transistor output stage.

Bus Interface and Latch Logic: The module decodes its slot address from the S5 parallel I/O bus and latches the 32-bit output word written by the CPU. The latch holds the last valid output state independently of bus activity, which means a momentary bus arbitration delay does not cause output glitching. This is a critical property in motion-control and valve-sequencing applications where output state stability between scan cycles is mandatory.

Optocoupler Isolation Stage: Each of the 32 channels passes through a dedicated optocoupler. The LED side is driven by the 5 VDC logic domain; the phototransistor side operates in the 24 VDC field domain. The isolation barrier is rated at 500 VAC, which exceeds the common-mode voltage differentials encountered in industrial panel wiring. This design eliminates ground loop currents that would otherwise introduce noise into the CPU’s analog input channels sharing the same cabinet ground reference.

EMC Design Considerations: The module’s PCB layout routes the 24 VDC field supply and return traces with controlled impedance and physical separation from the 5 VDC logic traces. Decoupling capacitors at each transistor driver suppress the inductive kickback generated when inductive loads (solenoids, relay coils) are de-energized. Without this suppression, the resulting voltage spikes — which can reach several hundred volts in microsecond timescales — would degrade the optocoupler LED junctions over time, increasing propagation delay and eventually causing intermittent output faults.

Thermal Management: At full load (32 channels × 0.5 A = 16 A field current), the transistor array dissipates approximately 8–12 W depending on load characteristics. The module’s aluminum heat-spreader plate conducts this heat to the rack’s forced-air cooling path. Operating the module above 40 °C ambient requires derating the per-channel current to maintain junction temperatures within the transistor’s safe operating area. This derating curve is documented in the Siemens S5 hardware manual (6ES5998-3UB21).

Redundancy Compatibility: In S5-135U and S5-155U redundant CPU configurations, the output modules are not duplicated at the hardware level. Instead, the active CPU holds exclusive write access to the output image, and a switchover event transfers write authority to the standby CPU within one scan cycle. The 6ES5420-4UA13’s latch-hold behavior ensures that outputs remain in their last commanded state during the switchover interval, preventing spurious actuator transitions.

System Integration Benefits

• Deterministic Output Latency: The latch-and-hold architecture decouples output state from bus arbitration timing, delivering consistent ≤0.5 ms ON-delay across all 32 channels regardless of rack load.
• Per-Channel Electronic Short-Circuit Protection: Each transistor driver includes current-limiting circuitry that clamps fault current without blowing a fuse, allowing the CPU to detect the fault via the diagnostic status byte and log it without requiring a panel door opening for fuse replacement.
• Galvanic Isolation Preserves Signal Integrity: The 500 VAC optocoupler barrier prevents field-side ground potential differences from injecting common-mode noise into the backplane, protecting analog I/O modules sharing the same rack from measurement errors.
• Slot-Compatible Backward Replacement: The 6ES5420-4UA13 replaces 4UA11 and 4UA12 variants without any STEP 5 hardware configuration modification, reducing the engineering effort and risk associated with spare-parts substitution in certified installations.
• High Channel Density Reduces Rack Footprint: 32 outputs in a single slot versus 16-channel alternatives halves the number of modules, connectors, and cable entries required for equivalent I/O counts, directly reducing panel assembly labor and wiring error probability.
• Diagnostic LED Array Accelerates Fault Isolation: Individual status LEDs for each of the 32 channels allow a technician to identify a failed output channel visually within seconds, without connecting a programming device or interpreting a diagnostic buffer.
• Inductive Load Suppression Extends Field Device Life: Integrated flyback suppression on each output channel limits de-energization voltage spikes to safe levels, reducing contact erosion in relay coils and extending solenoid valve service intervals.
• Broad Operating Temperature Range Supports Harsh Environments: The 0 °C to +60 °C operating range covers outdoor panel enclosures in temperate climates and non-air-conditioned machine rooms in tropical industrial facilities without additional thermal management hardware.
• Standardized S5 Bus Protocol Ensures Interoperability: The module communicates exclusively over the documented S5 parallel I/O bus protocol, ensuring full interoperability with all S5-compatible CPUs, expansion racks, and bus extenders without firmware dependencies.
• Supports Centralized and Distributed Rack Configurations: The module operates identically in central racks and in remote I/O racks connected via the S5 bus extender (6ES5700 series), providing architectural flexibility for geographically distributed process cells.
