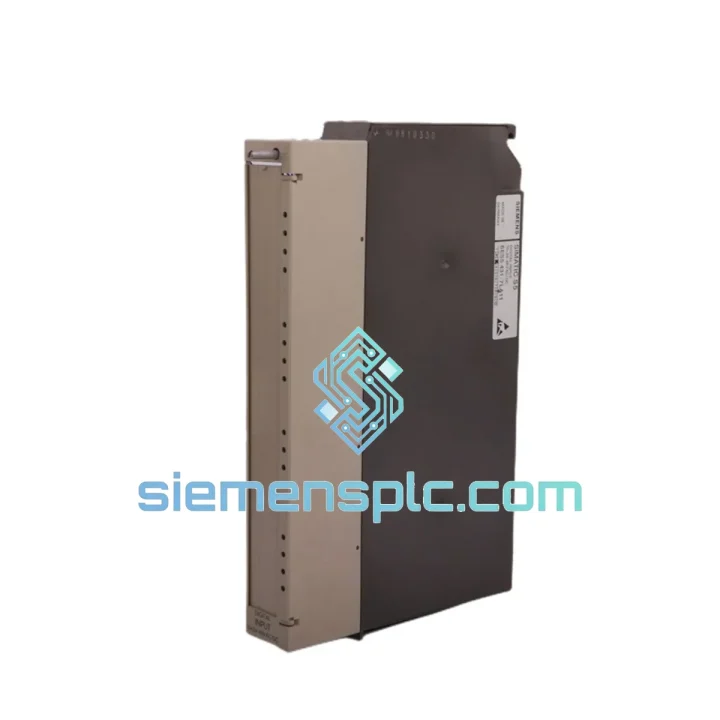

Siemens 6ES5431-7LA11 Digital Input Module

Siemens 6ES5431-7LA11: Stop the Bleeding — Get Your Line Back Up in 48 Hours

Every minute your S5 rack sits dark, you’re burning money. A failed 6ES5431-7LA11 digital input module doesn’t just kill one machine — it can cascade into a full production halt when your CPU loses its 32-channel field signal window. We stock this module in Xiamen, tested and ready to pull from the shelf. No waiting on factory lead times. No grey-market gambles. You call, we ship — DHL or FedEx express, door to door, anywhere on the planet.

This is not a catalog page. This is a field engineer’s sourcing lifeline.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

You’ve already pulled the module. Here’s what to check before you slot the replacement in — skipping these steps is how a second module dies on the bench.

Step 1 — Confirm the fault is the module, not the field wiring. A shorted field device can kill a fresh DI card in under a minute. Before inserting the new 6ES5431-7LA11, disconnect the 40-pin field connector and power up the rack. If the CPU comes online clean and the SF LED on the new card stays green, your field wiring is the culprit. Megger each input channel to ground before reconnecting.

Step 2 — Check the slot address assignment. The S5 system uses fixed slot addressing — the physical rack slot determines the I/O byte address. The 6ES5431-7LA11 occupies two consecutive input bytes (e.g., IB0/IB1 in slot 0). Verify your STEP 5 program’s I/O configuration matches the physical slot. A module swapped to a different slot without updating the software will cause silent data corruption, not an obvious fault.

Step 3 — Inspect the backplane connector pins. S5 racks accumulate oxidation on the gold-plated backplane edge connector over decades of service. Use isopropyl alcohol and a lint-free swab. Bent or recessed pins on the rack side require rack replacement — do not force the module.

Step 4 — Hardware revision check. The 6ES5431-7LA11 (revision A) and 7LA12 (revision B) are functionally identical in most installations. However, certain early S5-115U CPU firmware versions below V6.x may flag a hardware mismatch diagnostic. If your CPU throws a system fault immediately after insertion, check the CPU firmware version via STEP 5 → PLC → Module Information.

Common fault codes associated with this module:

• SF LED solid red on module: Internal module fault or backplane communication error. Reseat first; replace if fault persists after reseating in a known-good slot.
• CPU stops with OB85 call: I/O access error — the CPU cannot read the module. Verify slot addressing in your hardware configuration matches physical installation.
• Intermittent input signals (flickering in STEP 5 status display): Field wiring noise or loose terminal connection. Check cable shielding and terminal torque (0.5–0.6 Nm on Phoenix-style terminals).
• All 32 inputs read as 0 with field devices energized: Blown internal fuse on the module or missing 24 V DC field supply. Measure voltage at pin 1 and pin 20 of the field connector before condemning the module.

No DIP switches or jumpers to configure — the 6ES5431-7LA11 is fully slot-addressed. No firmware upload required. Power cycle the CPU after insertion and run a full I/O force test before handing back to operations.

Reliability in Harsh Conditions

The SIMATIC S5 platform was engineered in an era when industrial hardware had to survive without air conditioning, clean power, or vibration isolation. The 6ES5431-7LA11 reflects that design philosophy.

The optocoupler isolation stage between field inputs and the backplane bus provides galvanic separation rated to withstand transient spikes common in motor-heavy environments — inductive kickback from contactors, VFD switching noise, and ground loops that would corrupt unprotected logic inputs. Each of the 32 channels is independently isolated, meaning a field fault on one channel does not propagate to adjacent channels or the backplane.

The module’s conformal-coated PCB resists moisture ingress in humid foundry and coastal environments. Operating humidity up to 95 % RH non-condensing is not a marketing figure — it reflects real-world deployment in paper mills, chemical plants, and port facilities where ambient conditions are uncontrolled.

Vibration resistance meets IEC 68-2-6 (sinusoidal, 10–57 Hz, 0.075 mm amplitude; 57–150 Hz, 1 g). In practice, this covers most pump skid and compressor installations where rack-mounted PLCs experience continuous low-frequency vibration. The module’s card-guide retention and backplane locking mechanism prevent micro-movement that causes intermittent contact faults — a failure mode common in cheaper third-party alternatives.

Thermal performance is equally robust. The module dissipates heat passively through the card frame into the rack’s forced-air cooling path. In installations where rack cooling fans have degraded, the 6ES5431-7LA11 typically survives longer than adjacent analog modules because its digital circuitry tolerates wider thermal margins before logic errors appear.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the country’s primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental: it means your emergency order moves from our shelf to an international carrier within hours, not days.

Standard emergency dispatch process:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority.
• Order confirmed after 14:00 CST: Next business day dispatch — still faster than most competitors’ same-day processing.
• Transit times (DHL/FedEx express): Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 2–3 days | Australia 3–4 days.
• Documentation: Commercial invoice, packing list, and certificate of origin provided with every shipment. ATA Carnet and end-user certificates available on request for regulated destinations.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via email and WhatsApp.
• Customs clearance: HS Code 8537.10 declared. We pre-fill customs documentation accurately to prevent clearance delays — a common failure point with inexperienced suppliers.

For orders exceeding 10 units or requiring sea freight consolidation, contact us directly for freight cost optimization. We work with freight forwarders across all major trade lanes and can arrange door-to-door delivery with full insurance coverage.
