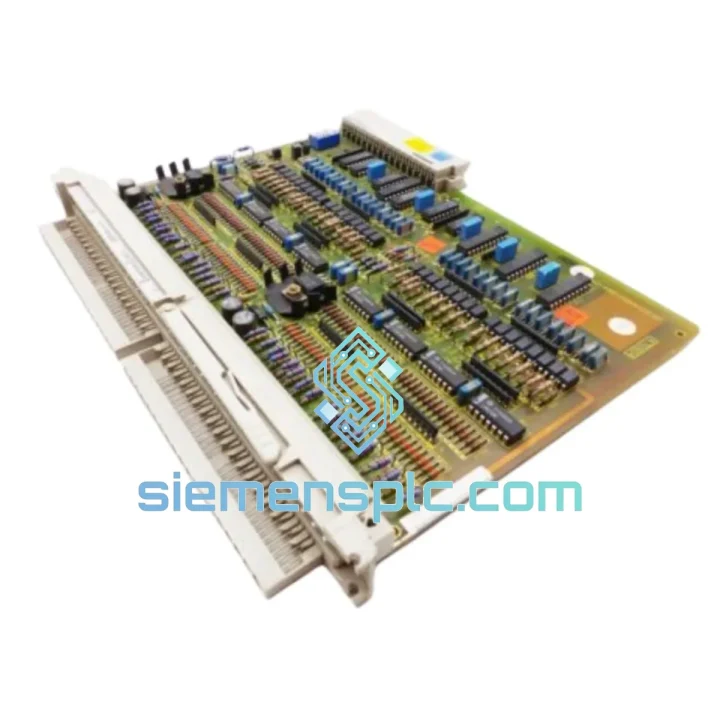

Siemens 6ES5434-4UA11 Digital Input Module – SIMATIC S5

Siemens 6ES5434-4UA11: 32-Channel Digital Input Module for SIMATIC S5 Control Architecture

The Siemens 6ES5434-4UA11 is a 32-channel parallel-bus digital input module engineered for the SIMATIC S5 programmable controller family. Within a discrete control loop, this module occupies the signal acquisition layer — converting field-level binary states from sensors, limit switches, pushbuttons, and relay contacts into logic-level data words that the S5 CPU processes via its parallel backplane bus. Each of the 32 input channels is individually optocoupler-isolated, establishing a galvanic barrier between field wiring and the controller’s internal logic domain. This architecture is not incidental; it is a deliberate design decision that prevents ground-loop currents, transient spikes from inductive field devices, and common-mode noise from propagating into the CPU’s address/data bus — a failure mode that causes non-deterministic program execution in high-noise industrial environments.

The module interfaces directly with the SIMATIC S5 subrack backplane, occupying one slot and presenting its 32 input bits as two consecutive 16-bit data words to the CPU. The S5 parallel bus operates at TTL logic levels with a cycle time determined by the CPU’s OB1 scan cycle — typically 1–50 ms depending on program length and CPU variant. The 6ES5434-4UA11 introduces no additional latency beyond the optocoupler propagation delay (typically <1 ms), making it suitable for high-frequency discrete event capture in machine tool, conveyor, and process interlock applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES5434-4UA11 implements a grouped optocoupler isolation topology. The 32 input channels are organized into groups of 8, each group sharing a common reference potential on the field side while maintaining full isolation from the backplane logic side. This grouping strategy reduces component count and PCB real estate without compromising the primary isolation objective — it is a standard practice in industrial I/O design where field wiring is typically segmented by machine zone or cabinet section anyway.

Each optocoupler operates in the linear region of its transfer characteristic at 24 V DC nominal input, with the LED drive current set by a series resistor calculated to maintain adequate current margin across the full 13–33 V input range. At 13 V (minimum logic-1 threshold), the LED current remains above the optocoupler’s minimum trigger threshold with a defined margin, preventing false-zero readings during voltage sag events on long cable runs. At 33 V (maximum logic-1 input), the series resistor limits LED current to prevent thermal stress — a failure mode that degrades optocoupler CTR (current transfer ratio) over time and causes intermittent input misreads in aged modules.

The module’s EMC performance derives from its PCB layout discipline: input signal traces are routed away from backplane bus lines, decoupling capacitors are placed at each optocoupler’s output stage, and the backplane connector pins are arranged to minimize crosstalk between adjacent data lines. The result is a module that maintains correct input state representation even in environments with conducted emissions from variable-frequency drives, contactors, and welding equipment — all common co-inhabitants of S5-based control panels.

The 6ES5434-4UA11 does not implement hardware debounce filtering. Input state changes are captured at the raw optocoupler output and presented to the CPU at the next backplane read cycle. This is intentional for applications requiring fast event detection. For applications with mechanically bouncing contacts (e.g., cam switches, reed relays), debounce logic must be implemented in the STEP 5 program using timer function blocks — a standard practice documented in Siemens application notes for S5 discrete input handling.

System Integration Benefits

• Direct S5 Backplane Compatibility: The module slots into any SIMATIC S5-115U, S5-135U, or S5-155U subrack without adapter hardware, preserving the deterministic parallel bus timing that S5 CPUs rely on for scan-cycle consistency.
• Galvanic Isolation Eliminates Ground Loops: The optocoupler barrier between field wiring and backplane logic prevents ground-loop currents — a primary cause of spurious input transitions in multi-cabinet installations where field devices share different earth reference potentials.
• Wide Input Voltage Window Tolerates Field Wiring Losses: The 13–33 V logic-1 acceptance range accommodates voltage drops across long cable runs (up to several hundred meters at 1.5 mm² cross-section) without requiring field-side signal conditioning or relay interposing.
• 32-Channel Density Reduces Rack Slot Consumption: Consolidating 32 inputs into a single slot lowers the total module count in the subrack, reducing backplane bus loading and leaving slots available for CPU, power supply, and communication modules.
• Transparent Diagnostics via STEP 5: Input states are directly addressable as I-area bits in the STEP 5 program (e.g., I 0.0 through I 3.7 depending on slot assignment), enabling straightforward ladder logic, FBD, or STL diagnostic routines without additional driver software.
• No Active Components in Field Circuit: The input circuit is passive on the field side — no active amplifiers or signal conditioners that can fail independently. Field-side failures manifest as open-circuit (logic 0) conditions, which are detectable by the CPU program.
• Thermal Stability Across Industrial Temperature Range: Rated operation from 0 °C to +60 °C covers the full range of enclosed control cabinet environments, including those without active cooling in moderate climates.
• Legacy System Continuity: For plants running SIMATIC S5 infrastructure with remaining service life of 5–15 years, the 6ES5434-4UA11 provides a direct replacement path that avoids the engineering cost and risk of migrating to S7 or TIA Portal — a migration that requires full I/O remapping, program rewriting, and recommissioning.

Quality Assurance & Global Logistics

Every Siemens 6ES5434-4UA11 unit dispatched from our Xiamen, China facility is a genuine Siemens OEM component. We do not sell rebranded, counterfeit, or refurbished-as-new hardware. Units are sourced from authorized industrial surplus channels, verified OEM decommissions, and bonded warehouse stock — each traceable to its original supply chain documentation.

Pre-shipment verification covers physical label authentication against Siemens reference markings, connector and housing integrity inspection, and functional bench testing across all 32 input channels using calibrated 24 V DC test signals. Units that fail any stage of this process are quarantined and not offered for sale.

Shipping from Xiamen is handled via DHL Express, FedEx International Priority, and SF Express for domestic China destinations. Standard international transit times are 3–7 business days to Europe, 4–8 business days to the Americas, and 2–5 business days to Southeast Asia and the Middle East. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international shipment. HS Code 8537.10 applies to this product category for customs classification purposes. All units are anti-static packaged in ESD-safe bags with foam cushioning to prevent mechanical and electrostatic damage in transit. A 12-month warranty from shipment date covers manufacturing defects and functional failures under normal operating conditions.
