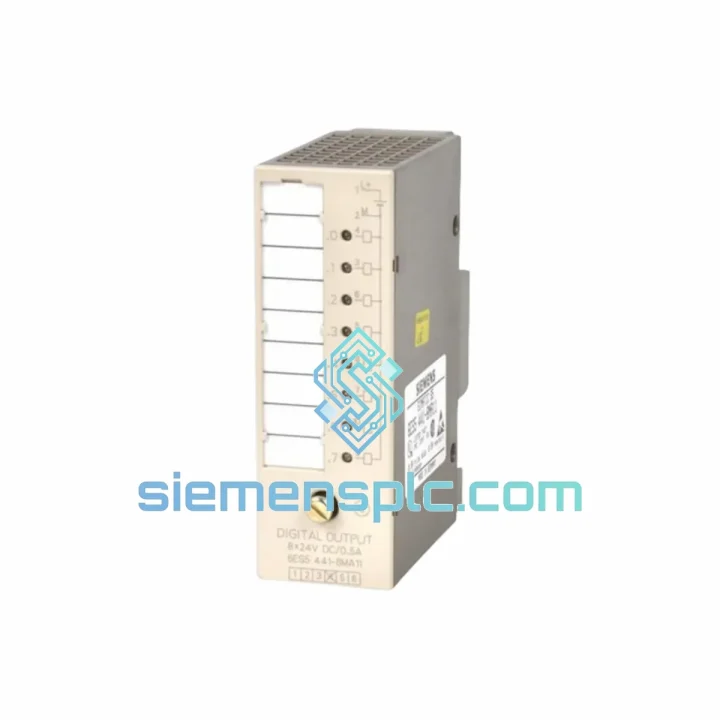

Siemens 6ES5441-8MA11 Digital Output Module

6ES5441-8MA11 — Every Hour of Downtime Costs You. We Ship Today.

Your S5 rack just threw a fault. The line is stopped. Maintenance is standing by. You’ve already pulled the 6ES5441-8MA11 and confirmed it’s dead — shorted output driver, blown optocoupler, or a silent failure that took out half your DO channels. You don’t need a lecture on the module’s history. You need a replacement on a truck today.

We stock the Siemens 6ES5441-8MA11 in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and land on your dock within 3–5 business days. For plant shutdowns and production emergencies, contact us directly — we handle urgent freight daily.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures on the 6ES5441-8MA11:

• Partial channel loss (8 or 16 channels dead): The 32 outputs are internally grouped into two 16-channel banks, each driven by a separate output IC. A single failed driver IC kills exactly half the channels. If your fault pattern is clean 16-channel blocks, the driver IC is the culprit — module replacement is the only field fix.
• All outputs stuck LOW, SF LED solid: Typically a blown optocoupler array or a failed 5 V logic supply rail on the card. Check backplane voltage at the slot first. If backplane is healthy, the module is gone.
• Intermittent output chatter under load: Inductive loads (solenoids, relay coils) without freewheeling diodes will back-EMF spike the transistor outputs over time. Inspect field wiring for missing suppression diodes before installing the replacement — otherwise you’ll kill the new card within weeks.
• SF LED flashing, outputs functional: Often a watchdog timeout from the CPU losing communication with the module. Check the backplane connector pins for oxidation or mechanical damage before condemning the module itself.

Replacement procedure — field checklist:

1. Power down the S5 rack or isolate the slot (check your plant’s LOTO procedure — some S5 installations allow hot-swap at the rack level, but this is not recommended for output modules driving live field devices).
2. Document the slot address. The 6ES5441-8MA11 uses the S5 parallel bus addressing scheme — the slot position determines the I/O address block assigned in the CPU’s hardware configuration. No DIP switches on this module; addressing is purely positional.
3. Disconnect the 40-pin front connector. Label the connector if multiple similar modules are in the rack — field wiring mistakes during reassembly are a common source of post-repair faults.
4. Seat the replacement module firmly. The S5 card guide rails require deliberate pressure — a partially seated card will cause intermittent bus errors that are difficult to diagnose.
5. Reconnect the front connector. Verify the locking tabs engage.
6. Power up and observe the module’s LED array. All 32 channel LEDs should reflect the CPU’s current output image. If the CPU is in STOP, all outputs will be de-energized — this is normal.
7. No firmware download required. The 6ES5441-8MA11 contains no user-programmable firmware. The CPU’s existing hardware configuration recognizes the module by slot position alone.
8. Perform a functional output test from the CPU’s diagnostic interface or via a force table in your programming software (STEP 5 / S5 for Windows). Verify all 32 channels switch correctly under load.

Configuration notes: Unlike newer S7/S7-1500 modules, the 6ES5441-8MA11 requires no GSD file import, no device configuration download, and no firmware matching. If your CPU’s hardware config was built for this slot, the replacement module is immediately operational after physical installation. The only exception is if a previous engineer had configured the slot for a different module type — in that case, verify the hardware config in STEP 5 matches the 6ES5441-8MA11 module identifier.
