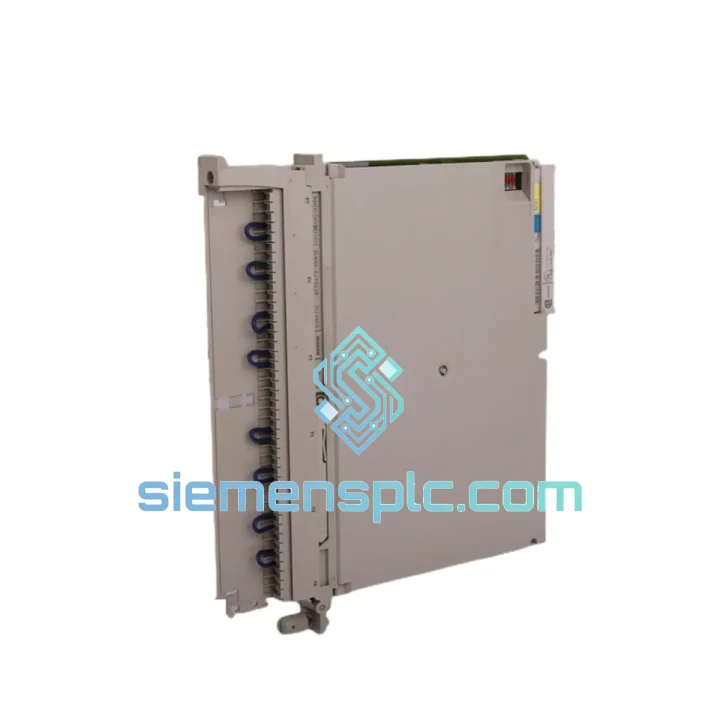

Siemens 6ES5470-4UA12 Analog Output Module

Siemens 6ES5470-4UA12: Stop the Bleed — Every Minute of Downtime Has a Price Tag

Your analog output loop just died. The control valve is stuck. The drive won’t respond. The batch is ruined. You’ve already called your local distributor — they quoted you 6 to 10 weeks. That’s not a lead time, that’s a production catastrophe. The Siemens 6ES5470-4UA12 is on our shelf in Xiamen right now. We’ve shipped this exact module to plants in Germany, Malaysia, Saudi Arabia, and Brazil — all on emergency orders, all delivered within 72 hours door-to-door. We know what’s at stake when an S5 analog output card fails, and we built our entire operation around getting you back online fast.

The 6ES5470-4UA12 is an 8-channel analog output module for the Siemens SIMATIC S5 platform. It converts digital setpoints from the S5 CPU into precision analog signals — typically 0–10 V or 4–20 mA — that drive actuators, control valves, variable-frequency drives, and positioners in closed-loop process control. When this card fails, every downstream actuator it controls goes blind. There is no workaround. You need the card.

Siemens discontinued the S5 series years ago, but the installed base is enormous. Refineries, power stations, water treatment plants, and automotive body shops are still running S5 racks daily. Replacement modules are not available from Siemens anymore — which means your only options are the secondary market and specialists like us. We stock tested, verified units and ship them globally with full export documentation.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How do you know the 6ES5470-4UA12 is the failed component? In the field, analog output module failure on S5 typically presents as one or more of the following: the SF (System Fault) LED on the CPU illuminates; the STEP 5 diagnostic buffer logs an I/O access error at the module’s slot address; one or more output channels read 0 mA / 0 V when the program is commanding a non-zero setpoint; or the module’s own fault LED (if equipped) is lit solid or flashing.

Before you pull the card:

• Note the exact slot position in the rack — the S5 uses slot-based addressing. The 6ES5470-4UA12 must be reinstalled in the same slot, or the CPU’s I/O configuration must be updated in STEP 5 to reflect the new address.
• Check the backplane connector for bent pins or corrosion. A failed connector can mimic a failed module. Clean with contact cleaner before condemning the card.
• Verify the power supply rail voltage at the rack. S5 analog modules are sensitive to supply voltage sag — a weak PSU can cause intermittent AO faults that look like module failure.
• If the system uses a IM (Interface Module) for rack expansion, confirm the IM link is healthy before assuming the AO card is at fault.

Replacement procedure (field-tested sequence):

• Power down the rack or use the S5 hot-swap procedure if your CPU revision supports it — most S5 CPUs do NOT support true hot-swap on analog modules. Default to full rack power-off.
• Label and photograph all field wiring on the module’s terminal block before disconnecting. The 6ES5470-4UA12 uses a removable terminal block — pull it as a unit to preserve wiring.
• Seat the replacement module firmly into the same slot. The S5 backplane connector requires deliberate pressure — a partially seated card will cause intermittent faults worse than the original failure.
• There are no DIP switches or jumpers on the 6ES5470-4UA12 that require field configuration for basic operation — the module address is determined by slot position only. However, if your application uses parameterization via the CPU’s DB (Data Block), verify the output range parameters in the DB match the replacement module’s hardware revision. Revision mismatches between 4UA12 and adjacent variants (4UA13, 4UB12) can cause range offset errors.
• After power-up, force each output channel to a known value from STEP 5 and verify at the field terminal with a calibrated meter before returning the loop to automatic.

Common fault codes associated with this module: STEP 5 OB 23 (I/O module not responding), OB 24 (I/O access error), and process image update errors in the diagnostic buffer. If OB 23 fires immediately after replacement, recheck slot seating and backplane connector integrity.

Reliability in Harsh Conditions

The SIMATIC S5 hardware generation was engineered for industrial environments that would destroy consumer-grade electronics. The 6ES5470-4UA12 was designed and manufactured to Siemens’ industrial-grade specifications, which means it was built to operate continuously in conditions that most electronics cannot tolerate.

Vibration is a constant in heavy industry — compressor rooms, press shops, and pump stations generate mechanical shock and continuous vibration that fatigues PCB solder joints and connector contacts over time. The S5 module’s conformal-coated PCB and robust backplane connector were designed with this in mind. Units we supply are inspected for solder joint integrity and connector wear before dispatch.

Thermal cycling is the silent killer of industrial electronics. A module that runs at 55°C during production and cools to ambient overnight experiences thousands of thermal cycles over its service life. The 6ES5470-4UA12’s component selection and PCB layout account for this — but it also means that when you’re sourcing a replacement, you want a unit that has been stored properly, not one that has been sitting in a damp warehouse for a decade. Our inventory is stored in climate-controlled conditions and rotated regularly.

Humidity and condensation are particularly destructive to analog circuitry, where even minor leakage currents can corrupt precision output signals. Every unit we ship is inspected for corrosion on the PCB, terminal block contacts, and backplane connector. Units showing any sign of moisture ingress are rejected — we do not refurbish and resell compromised boards.

EMI immunity is non-negotiable in environments with large drives, welding equipment, or high-current switching. The S5 platform’s shielded backplane and module design provide inherent EMI rejection. Ensure your replacement installation maintains proper cable shielding and grounding practices — a correctly installed 6ES5470-4UA12 in a properly grounded cabinet will reject interference that would corrupt an unshielded analog signal.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-connected cities in Asia, with direct access to DHL, FedEx, and UPS international express networks. When you place an urgent order, here is exactly what happens:

• Same-day processing: Orders confirmed before 15:00 CST are packed and handed to the carrier the same business day. We do not batch shipments — every urgent order is treated as a priority consignment.
• Export documentation: We prepare the commercial invoice, packing list, and any required export declarations in-house. For destinations requiring specific certifications or import permits, we advise you in advance — no surprises at customs.
• Carrier selection: DHL Express is our primary carrier for Europe, the Middle East, and Southeast Asia. FedEx International Priority is used for North America. UPS Worldwide Express is available on request. All shipments include door-to-door tracking from our warehouse to your receiving dock.
• Typical transit times: Europe 2–3 business days; Middle East 2–4 business days; Southeast Asia 1–2 business days; North America 3–5 business days; Australia/NZ 3–4 business days. These are carrier-quoted times — actual delivery depends on customs clearance at destination.
• Customs value declaration: We declare accurate commercial values on all shipments. We do not under-declare for customs purposes — this protects you from import compliance risk and ensures your insurance coverage is valid.
• Insurance: All express shipments include carrier liability coverage. Additional cargo insurance is available on request for high-value orders.

If your plant is down and every hour matters, tell us when you contact us. We will confirm stock, issue a proforma invoice, and have the module moving within hours of payment confirmation.
