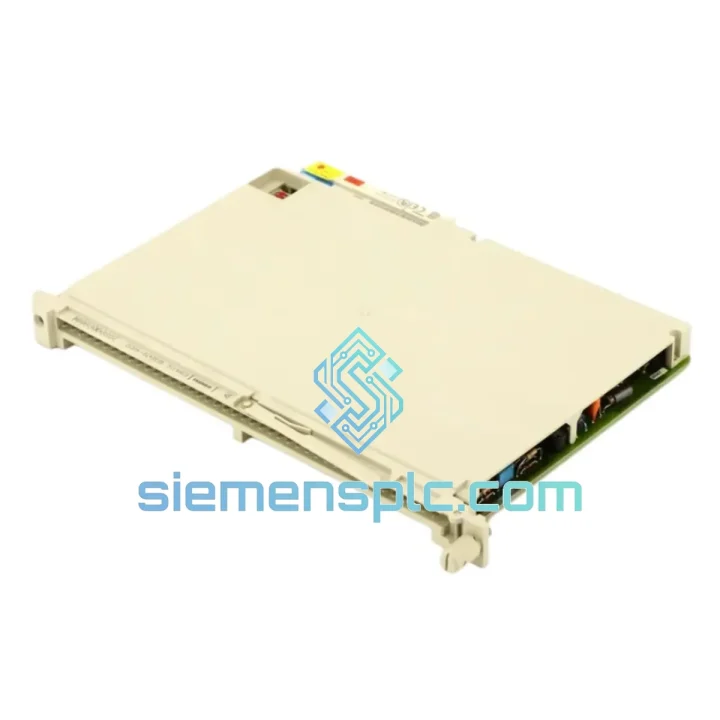

Siemens 6ES5470-4UC12 Analog Output Module

6ES5470-4UC12 Analog Output Module: Stop the Clock on Your Downtime

Every minute your line sits idle costs real money. When a SIMATIC S5 analog output module fails, you don’t have time for a three-week lead time from a catalog distributor. The Siemens 6ES5470-4UC12 is on our shelf in Xiamen right now — inspected, tested, and ready to leave the warehouse within 24 hours of your order confirmation. We’ve shipped this exact module to plants in Germany, Australia, Saudi Arabia, and Brazil on emergency calls. We know what’s at stake.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 6ES5470-4UC12 fails in predictable ways. Here’s what I see most often on site and how to handle the swap without creating new problems:

Fault 1 — Output frozen at last value (no response to CPU setpoint changes): Nine times out of ten this is a failed DAC chip on channel 2 or 3, triggered by a transient on the field wiring. Before you pull the module, check the CPU’s OB1 cycle time — if it’s spiking, the issue may be upstream. If the cycle time is normal and the output is locked, the module is done. Pull it.

Fault 2 — BADF or SF LED lit, CPU in STOP: The S5 CPU will halt if it detects a module hardware fault during the cyclic I/O scan. Note the slot address from the CPU diagnostic buffer (DB1 in STEP 5). Confirm the slot matches the 6ES5470-4UC12 before ordering — don’t assume it’s the only analog output card in the rack.

Fault 3 — Output drift, ±2–5% error on one channel: This is a calibration trim failure, common on modules that have been in service for 15+ years. The other channels may still be within spec. If your process can tolerate it short-term, you can compensate in software, but plan the replacement within the next maintenance window.

Replacement procedure — key steps:

• Power down the rack completely. The S5 backplane does not support hot-swap on analog modules.
• Note the DIP switch settings on the old module before removal. The 6ES5470-4UC12 uses DIP switches SW1 and SW2 to configure output range per channel. Photograph them before you pull the card.
• The replacement module ships with all switches in the OFF position (voltage mode, 0–10 V). Reconfigure to match your original settings before inserting.
• After insertion, perform a CPU STOP → RUN cycle and monitor the first 10 scan cycles via your PG/PC. Confirm all four channel outputs match the CPU setpoints within ±0.5%.
• If you’re replacing into an S5-135U or S5-155U with a central controller, verify the module address assignment in your hardware configuration — the S5 uses slot-based addressing, not auto-discovery. A mismatch will cause an immediate SF fault.

Reliability in Harsh Conditions

The SIMATIC S5 platform was engineered for the factory floor, not the server room. The 6ES5470-4UC12 reflects that design philosophy. Its backplane connector uses gold-plated contacts rated for 500+ insertion cycles — relevant when you’re swapping modules under pressure in a dirty environment. The module’s internal power supply filtering is designed to reject common-mode noise up to 60 V, which matters in plants where VFDs and contactors share the same cabinet.

Vibration resistance meets IEC 68-2-6 (10–57 Hz, 0.075 mm amplitude; 57–150 Hz, 1 g). In cement plants and steel mills where the floor never stops shaking, this spec is not academic — it’s the difference between a module that lasts a decade and one that fails in 18 months. The conformal coating on the PCB provides protection against condensation and airborne contaminants, which is why you’ll find this module still running in coastal chemical plants where humidity regularly exceeds 90% RH.

Units we ship have been stored in climate-controlled conditions. We do not sell modules that have been sitting in uncontrolled outdoor storage or flood-damaged facilities. Every unit is visually inspected for corrosion on the edge connector and backplane pins before it leaves our warehouse.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s how a typical emergency order moves:

• Hour 0: You contact us via email or WhatsApp with your part number and delivery address.
• Hour 1–2: We confirm stock, issue a proforma invoice, and reserve the unit under your name.
• Hour 4–8: Payment confirmed (T/T, PayPal, or card). Module pulled from shelf, tested, packed in anti-static ESD bag with foam insert.
• Hour 24: Shipment handed to DHL Express or FedEx International Priority. Tracking number sent to your email.
• Day 2–4: Delivery to most of Europe, Southeast Asia, Middle East, and Australia. North America typically Day 3–5 depending on customs clearance.

We prepare full export documentation: commercial invoice, packing list, and certificate of origin. HS Code 8537.10 is pre-declared. For customers in the EU, we can provide an EUR.1 movement certificate on request. Customs delays are rare on this commodity — if your shipment is held, we respond to customs queries within 2 hours during business hours.
