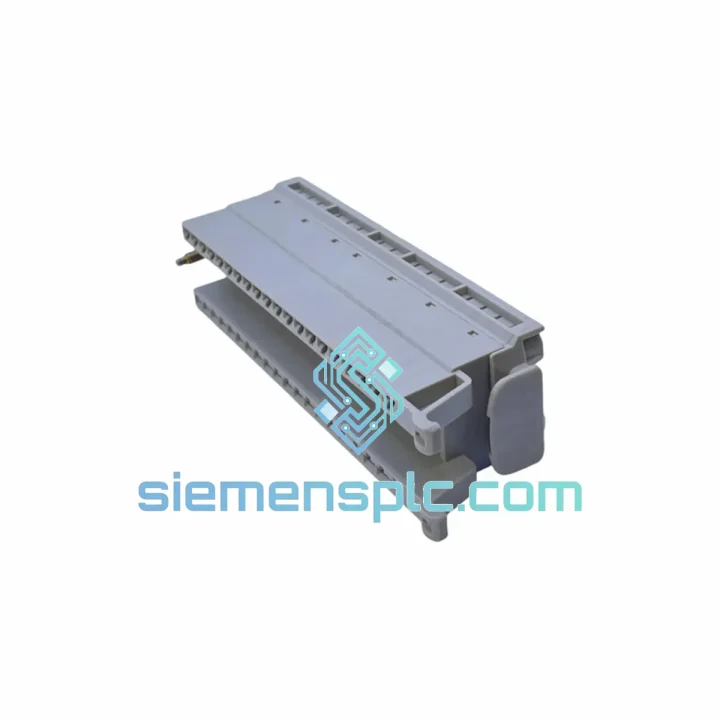

Siemens 6ES5490-8FB11 Front Connector

6ES5490-8FB11 Front Connector: Every Minute of Downtime Costs You Money — We Ship Today

Your S5 rack is down. The field wiring is intact but the front connector is cracked, a terminal has stripped, or the latch won’t seat. You’ve already lost two hours tracking the part number. Stop. The Siemens 6ES5490-8FB11 — 40-pin screw-type front connector for SIMATIC S5 I/O modules — is on our shelf in Xiamen right now. We process same-day. DHL Express is at our door every afternoon. Your line can be back up before the next shift.

This is not a catalog listing. This is a live inventory position. If you’re reading this at 2 AM during a breakdown, send a WhatsApp now: +86 18359268345. We respond around the clock for urgent requirements.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes for the 6ES5490-8FB11 in the field:

1. Stripped terminal screw (most frequent). After years of maintenance cycles, M2.5 captive screws lose thread engagement. Symptom: intermittent I/O faults on specific channels, often misdiagnosed as module failure. Before condemning the module, torque-test every terminal on the connector. A stripped screw on a 24 VDC input channel will generate sporadic SF LED flashes and false process alarms. Replacement of the connector alone resolves this in under 10 minutes.

2. Broken latch mechanism. The plastic latch that locks the connector to the module face fractures under repeated plug/unplug cycles or mechanical shock. A connector with a failed latch will vibrate loose in high-vibration environments (compressor rooms, press lines). Do not tape or cable-tie a broken latch — the contact resistance will drift. Replace the connector.

3. Oxidized contacts on analog channels. In humid or chemically aggressive environments, the pin contacts on analog I/O channels (4–20 mA, ±10 V) develop oxide layers that increase contact resistance. Symptom: analog readings drift or freeze at last-good value. Clean contacts with isopropyl alcohol and a fine brush as a temporary measure; schedule connector replacement at next planned shutdown.

Replacement procedure (zero-rewiring method):

Step 1 — With the module powered down and the rack isolated per your site LOTO procedure, release the connector latch by pressing the orange tab (or equivalent on your revision) and pull the connector body straight out from the module face. Do not tug on the cable bundle. Step 2 — Transfer the connector to the bench. Photograph the terminal labeling strip before touching any wires. Step 3 — On the new 6ES5490-8FB11, loosen all 40 terminal screws two full turns. Step 4 — Transfer wires one-by-one from the old connector to the new, matching terminal numbers exactly. Torque each screw to 0.5–0.6 Nm — finger-tight plus a quarter turn with a 0.6×3.5 mm flat blade. Step 5 — Slide the new connector onto the module until the latch clicks. Step 6 — Power up and verify all channel LEDs match pre-fault state. Total elapsed time for an experienced technician: 8–12 minutes.

Configuration note: The 6ES5490-8FB11 is a passive wiring interface — it carries no firmware, no DIP switches, and no address settings. There is no module addressing required on the connector itself. Address assignment is handled by the module’s slot position in the S5 rack and the CPU’s I/O configuration. If you are replacing a module alongside the connector, verify the module’s slot address matches the original CPU configuration in STEP 5 or COM 115U before powering up.

Reliability in Harsh Conditions

The 6ES5490-8FB11 was engineered to Siemens’ SIMATIC S5 industrial specification — a standard that was deliberately over-engineered for the process industries of the 1980s and has outlasted most of the equipment it was designed to control. The screw-terminal design was chosen over spring-cage specifically for vibration resistance: under sustained mechanical vibration (IEC 60068-2-6, 10–57 Hz, 0.075 mm amplitude), captive screw terminals maintain clamping force where spring contacts can fatigue and relax over time.

The housing is rated to IP20 when mated, providing protection against finger contact and solid particle ingress in standard cabinet installations. In environments with condensation risk — coastal facilities, paper mills, food processing — the connector should be installed in a sealed cabinet with desiccant packs and inspected annually for contact oxidation. Operating temperature ceiling of +60 °C covers the vast majority of industrial cabinet environments, including those without forced-air cooling in moderate climates.

Units in our inventory are stored in anti-static bags inside climate-controlled warehousing. Each connector is inspected for housing cracks, terminal thread integrity, and latch function before dispatch. We do not ship connectors with cosmetic damage, regardless of functional status — because a cracked housing in a wet environment is a liability, not a spare part.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL Express and FedEx International Priority access. Orders confirmed before 15:00 CST are processed for same-day handover to the carrier. Typical transit times from Xiamen:

DHL Express / FedEx International Priority: Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 2–3 days | Australia 3–4 days | South America 5–7 days.

We prepare all export documentation in-house: commercial invoice, packing list, and HS code declaration (HS 8538.90 for PLC connector components). For customers in regulated industries requiring a certificate of conformity or material declaration, request this at time of order — we include it at no additional charge. Customs clearance delays are rare for this commodity code, but we advise customers in Brazil and India to allow an additional 2–3 business days for local customs processing.

For multi-unit orders or mixed-SKU shipments, we consolidate into a single carton to minimize freight cost. We provide a tracking number within 2 hours of carrier pickup. If your shipment is time-critical, tell us at the time of order and we will select the fastest available service and confirm the estimated delivery date before invoicing.
