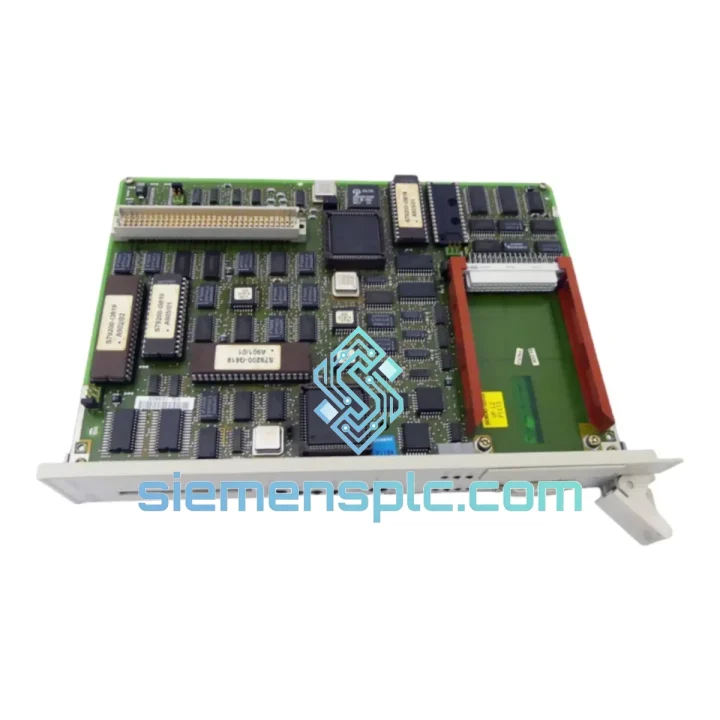

Siemens 6ES5948-3UR22 PLC CPU Module

6ES5948-3UR22 Down? Every Minute Costs Money — Ship Today from Xiamen

Your S5-948 CPU just dropped offline. The line is cold. Maintenance is on the phone. You’ve already pulled the module and confirmed the fault — now you need a verified replacement in hand, not a two-week lead time from a catalog distributor. The Siemens 6ES5948-3UR22 is in stock at our Xiamen warehouse. We cut the paperwork, pull the unit, and hand it to DHL the same day you confirm. That’s the only promise that matters when you’re staring at a stopped conveyor.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on S5 systems teach you the same lesson every time: the 6ES5948-3UR22 fails in predictable ways. Know them before you pull the module.

Common fault signatures:

• BASP LED solid red / SF LED flashing: Typically a corrupted user program in RAM. Before condemning the CPU, swap the memory cartridge first — the module itself may be fine. If the fault follows the cartridge, you’ve saved yourself a replacement cycle.
• CPU in STOP mode with no apparent cause: Check the mode selector switch (RUN / STOP / MRES). A worn or vibration-loosened switch can intermittently command STOP. Confirm switch position mechanically before assuming CPU failure.
• Bus fault / rack communication error: Reseat the module firmly. The S5 backplane edge connector oxidizes in humid environments. Clean with isopropyl alcohol and a firm-bristle brush before inserting the replacement unit.
• Watchdog timeout (WD fault): Caused by cycle time overrun — often triggered after a program upload to a replacement CPU with a different firmware revision. Verify OB1 cycle time settings match your original configuration.

Replacement procedure — field checklist:

1. Set the rack power supply to OFF. Do not hot-swap S5 CPU modules — the backplane is not designed for it.
2. Note the position of the mode selector switch before removal. Photograph it.
3. Remove the memory cartridge from the outgoing CPU and retain it. Your program lives there.
4. Seat the 6ES5948-3UR22 replacement into the same slot. Confirm the module locks flush — a partially seated card causes intermittent bus errors that are extremely difficult to diagnose.
5. Insert the original memory cartridge into the new CPU.
6. Power on with the mode selector in STOP. Observe LED sequence: BASP should extinguish within 3 seconds, RUN LED should be ready to accept a RUN command.
7. Switch to RUN. Monitor for the first 5 scan cycles via STEP 5 online monitoring before declaring the repair complete.
8. If the CPU was ordered as a blank unit (no pre-loaded firmware), you will need to download the program block-by-block via STEP 5 PG interface. Confirm DB, FB, OB, and SB blocks are all transferred.

Firmware note: The -3UR22 hardware revision carries a specific firmware version. If your STEP 5 project was compiled on a newer PG, verify that the OB and system block assignments are compatible. Mismatched firmware can cause silent data handling errors that only surface under specific process conditions — the worst kind.

Reliability in Harsh Conditions

The SIMATIC S5 platform was engineered for the factory floor, not the server room. The 6ES5948-3UR22 is built to IEC 61131-2 environmental standards and has been deployed in some of the most demanding industrial environments on record — steel mills, offshore platforms, chemical batch reactors, and automotive body shops.

Vibration resistance is rated to 10–57 Hz at 0.075 mm amplitude and 57–150 Hz at 1 g, per IEC 60068-2-6. In practice, this means the module survives continuous operation on press lines and compressor skids where lesser hardware fails within months. The conformal coating on the PCB provides a barrier against airborne contaminants — cutting fluid mist, hydraulic oil vapor, and conductive dust — that are standard in machining and metalworking environments.

Thermal cycling is where many counterfeit or refurbished modules expose themselves. Genuine Siemens components use military-grade solder joints and ceramic capacitors rated for 100,000+ thermal cycles. A module that passes a bench test at room temperature but fails after two hours at 55 °C ambient is a module that was never genuine to begin with. Every unit we ship has been stored in climate-controlled conditions and verified against Siemens’ original part markings before it leaves Xiamen.

Global Express Logistics

Our Xiamen warehouse sits 40 minutes from Xiamen Gaoqi International Airport (XMN), one of the primary cargo hubs for DHL and FedEx operations in Southeast China. That proximity is not incidental — it is the operational backbone of our same-day dispatch commitment.

Standard shipping flow:

• Order confirmed before 14:00 CST: Module is picked, inspected, packed in anti-static foam, and handed to DHL/FedEx courier the same business day.
• DHL Express Worldwide: Europe 2–3 business days, North America 3–4 business days, Southeast Asia 1–2 business days, Middle East / Africa 3–5 business days.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage.
• Documentation included: Commercial invoice, packing list, certificate of origin, and HS code declaration (8537.10) — everything your customs broker needs, prepared before the shipment leaves our dock.
• Tracking: AWB number sent via email and WhatsApp within 2 hours of pickup confirmation.

For critical plant shutdowns requiring air freight consolidation or hand-carry courier arrangements, contact us directly. We have handled emergency shipments to refineries in the Middle East and automotive plants in Eastern Europe on 24-hour turnaround. If the situation is urgent, tell us — we will find a way.
