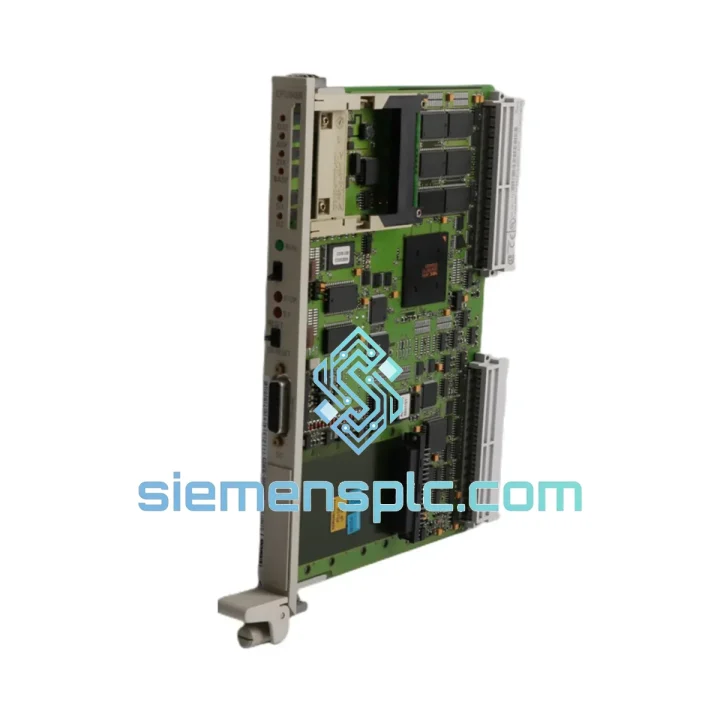

SIEMENS 6ES5948-3UR23 CPU Module

SIEMENS 6ES5948-3UR23 CPU Module — Stop the Clock on Your S5 Downtime

Every hour a SIMATIC S5-948 line sits idle costs real money. The 6ES5948-3UR23 is the high-end CPU of the S5-948 family — a double-width module that carries the entire execution context of your legacy control system. When it fails, there is no software workaround. You need a verified, drop-in replacement on your bench within 48 hours, not a two-week procurement cycle.

We stock the 6ES5948-3UR23 in Xiamen, China, with DHL Express pre-arranged for same-day dispatch on confirmed orders. Every unit passes a bench power-on test in a live S5 rack before it leaves our facility. No refurbished units. No remarked boards. No exceptions.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 6ES5948-3UR23:

• STOP LED locked on, RUN LED dark after power cycle: Most frequently caused by corrupted EPROM submodule (6ES5374 series) or failed battery-backed RAM. Before condemning the CPU, reseat the memory submodule and check the backup battery voltage — it must be above 2.8 V DC. If the CPU still fails to enter RUN after a cold start with a known-good program, the CPU itself is the fault source.
• Intermittent BASP (bus disable) faults: The S5-948 CPU monitors backplane bus integrity continuously. Intermittent BASP errors that clear on power cycle typically indicate a failing backplane connector or a marginal CPU bus driver IC. Swap the CPU first — it is the fastest field test.
• SF (System Fault) LED with no diagnostic buffer entry: This pattern on the 6ES5948-3UR23 often points to an internal watchdog timeout caused by a failing oscillator circuit on the CPU board. Not recoverable by firmware reload — physical replacement required.
• Multiprocessor coordination loss: If one CPU in a multi-CPU rack drops out of synchronization (visible as asymmetric RUN/STOP states across CPUs), isolate by removing CPUs one at a time. The 6ES5948-3UR23 uses a hardware arbitration line on the backplane — a failed arbitration driver on one CPU will pull the entire multiprocessor group into STOP.

Replacement procedure — critical configuration steps:

• Step 1 — Document the existing configuration: Before removing the failed CPU, use STEP 5 (S5 for Windows or PG 740/760) to upload and save the complete program, including OB, PB, FB, DB, and SB blocks. Verify the upload against your last known-good backup. Do not assume the failed CPU’s memory is intact.
• Step 2 — Note the MPI/slot address and mode selector position: The 6ES5948-3UR23 has a physical mode selector switch (RUN-P / RUN / STOP / MRES). Record its position. In multiprocessor installations, also note which slot each CPU occupies — the S5-948 rack assigns CPU priority by physical slot position, not software configuration.
• Step 3 — Transfer the memory submodule: If your program resides on an EPROM submodule (6ES5374-1FH21 or similar), transfer it directly to the replacement CPU. If the program is in battery-backed RAM on the failed CPU and the CPU is completely dead, you will need to reload from your STEP 5 backup.
• Step 4 — Cold restart sequence: After installing the replacement CPU, set the mode selector to MRES (memory reset) for 3 seconds, then return to STOP, then to RUN-P. Observe the RUN LED — it should illuminate within 5 seconds of a valid program load. If the SF LED activates, connect STEP 5 and read the diagnostic buffer immediately.
• Step 5 — Verify I/O addressing: Confirm that the replacement CPU’s hardware configuration matches the original — particularly the I/O base addresses assigned to each module slot. Mismatched addressing will cause the CPU to enter STOP with an I/O configuration fault (OB 85 or OB 86 call).

Reliability in Harsh Conditions

The S5-948 platform was engineered for continuous-duty industrial environments, and the 6ES5948-3UR23 reflects that design philosophy at the component level. The CPU board uses through-hole and mixed-technology construction with conformal coating on production variants — a deliberate choice for vibration resistance that surface-mount-only designs cannot match at the same board area.

Thermal management is passive: the CPU relies on convective airflow through the S5 rack’s ventilation slots rather than active cooling, eliminating fan failure as a reliability variable. The operating range of 0 °C to +60 °C covers the majority of industrial panel environments without derating. In practice, S5-948 installations in steel mills and foundries have logged 15–20 years of continuous operation in ambient temperatures regularly reaching 50 °C.

EMC performance is governed by the S5 rack’s backplane shielding and the CPU’s onboard filtering on all bus lines. The module meets EN 61000-4-4 (electrical fast transient / burst) at 2 kV on power supply lines and EN 61000-4-5 (surge) at 1 kV — adequate for most industrial environments without additional external filtering. In high-noise environments (large VFD installations, arc furnaces), the standard recommendation is to ensure the rack’s PE connection is bonded to the cabinet ground plane with a conductor of at least 6 mm² cross-section.

Humidity tolerance is rated to 95% RH non-condensing. Units stored in our Xiamen facility are maintained in climate-controlled conditions at 40–60% RH with desiccant packaging for long-term stock. Every unit shipped receives a fresh desiccant sachet and moisture-barrier bag seal.

Global Express Logistics

Our dispatch process is built around one objective: your replacement module arrives before your next production shift.

• Order cutoff: Orders confirmed with payment by 15:00 CST (UTC+8) ship same business day via DHL Express or FedEx International Priority.
• Packaging: Anti-static ESD bag → 30 mm foam-lined inner box → double-wall corrugated outer carton with fragile/shock-watch indicator. The 6ES5948-3UR23 is a double-width module with exposed edge connectors — we apply custom foam inserts to protect the backplane connector pins during transit.
• Transit times from Xiamen: Southeast Asia 1–3 days | Middle East 3–5 days | Europe 3–5 days | North America 3–6 days | Australia 3–5 days.
• Tracking: AWB number sent via email within 2 hours of dispatch. DHL/FedEx live tracking link included.
• Customs documentation: Commercial invoice, packing list, COO declaration, and HS Code 8537.10 classification provided with every shipment. For destinations requiring import licenses or end-user declarations, contact us before ordering.
• Emergency freight: For critical shutdowns requiring overnight delivery, contact us directly on WhatsApp for real-time freight options including charter courier where DHL/FedEx standard services cannot meet your deadline.
