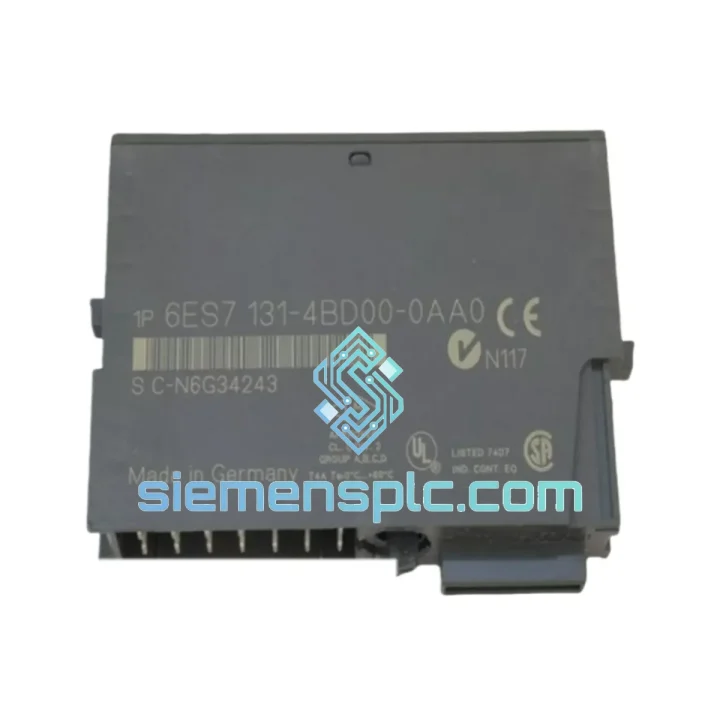

Siemens 6ES7131-4BD00-0AA0 Digital Input Module

6ES7131-4BD00-0AA0 — Line Down? This Module Ships Today from Xiamen

Every minute your ET 200S station sits offline, the clock is running — scrap accumulates, SLA penalties tick up, and your maintenance team is under fire. The Siemens 6ES7131-4BD00-0AA0 4-channel digital input module is one of the most failure-prone cards in high-cycle ET 200S deployments, and when it goes, you need a verified replacement in hand — not in two weeks. We stock it. It ships today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on ET 200S stations, here is what actually goes wrong with the 6ES7131-4BD00-0AA0 and how to deal with it fast:

Symptom 1 — SF/BF LED solid red, no channel diagnostics in TIA Portal
Nine times out of ten this is a dead backplane bus contact or a cracked terminal module (TM-E). Before condemning the DI card, pull the module, inspect the gold fingers on the bottom edge for oxidation or mechanical damage, and reseat it. If the fault follows the card to a new slot, the module itself is gone. If it stays in the slot, replace the TM-E carrier — 6ES7193-4CA40-0AA0.

Symptom 2 — Channel 0 or Channel 1 stuck HIGH, field device confirmed OFF
This is classic optocoupler degradation from sustained over-voltage on the input line. Check field wiring for voltage spikes above 30 V DC. The internal optocoupler on the affected channel has likely latched. No repair path — replace the module. Install a 24 V DC surge suppressor on the field cable if the environment is noisy.

Symptom 3 — Module recognized in hardware config but I/O address not updating
Verify the slot address assignment in STEP 7 / TIA Portal matches the physical slot position. ET 200S uses automatic slot addressing — if you have inserted a new module in a different physical position than the failed one, the address offset shifts. Re-download the hardware configuration after confirming slot order. Do not assume the address is the same as the old card.

Replacement Procedure (field-safe, no full station shutdown required):

1. Confirm hot-swap is enabled in the IM 151-x interface module parameters (“Module replacement during operation” must be set to active in TIA Portal).
2. Isolate field-side 24 V DC supply to the affected terminal module only — do not cut power to the entire ET 200S rail.
3. Press the orange release lever on the top of the module and slide it upward off the TM-E carrier.
4. Seat the replacement 6ES7131-4BD00-0AA0 onto the same TM-E. No DIP switches or address coding required — this module is auto-addressed by the IM.
5. Restore field power. The IM will detect the new module within 2–3 seconds and resume I/O exchange. Verify channel status in TIA Portal diagnostics view.
6. If the SF LED persists after swap, force a hardware re-initialization by briefly cycling the IM power — not the entire station power.

Firmware note: The 6ES7131-4BD00-0AA0 carries no user-upgradeable firmware. Hardware revision (printed on the module label, e.g., “HW: 01”) must match or exceed the minimum revision specified in your IM 151-x compatibility matrix. Check Siemens Product Compatibility Tool (PCT) if mixing hardware revisions across a station.

Reliability in Harsh Conditions

The ET 200S platform was engineered for the factory floor, not the server room. The 6ES7131-4BD00-0AA0 is qualified to operate continuously at 60 °C ambient — relevant when your control cabinet sits next to a furnace or press. Optocoupler isolation between the field terminals and the backplane bus means a wiring fault or transient on the sensor side cannot propagate to the CPU or network.

Vibration resistance meets IEC 60068-2-6 (sinusoidal, 10–58 Hz, 0.075 mm amplitude; 58–500 Hz, 1 g). In automotive body-shop applications where the cabinet is mounted on a moving gantry, this matters. The module’s 15 mm slim profile also reduces thermal mass and mechanical stress on the DIN rail assembly during thermal cycling.

Humidity tolerance is rated to 95% RH non-condensing (IEC 60068-2-30). For food and beverage lines where washdown mist is a reality, the IP20 rating of the module itself is supplemented by the IP65/67 rating of the ET 200S enclosure — specify the correct housing for your environment. Every unit we ship is inspected for label integrity, connector condition, and correct part marking before it leaves our warehouse. Anti-static packaging with humidity indicator card is standard on all outbound shipments.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. When you place an order before 15:00 CST, the module is picked, inspected, and handed to the carrier the same business day.

Typical transit times from Xiamen:

• Southeast Asia (SG, MY, TH, VN): DHL Express — 1 to 2 business days
• Europe (DE, NL, PL, CZ): FedEx International Priority — 3 to 4 business days
• North America (US, CA, MX): DHL Express Worldwide — 3 to 5 business days
• Middle East (AE, SA, QA): FedEx International Priority — 2 to 3 business days
• Australia / New Zealand: DHL Express — 3 to 4 business days

All shipments include a commercial invoice, packing list, and certificate of origin for customs clearance. HS Code: 8537.10. We handle export documentation in full — your procurement team receives tracking within 2 hours of dispatch. For emergency orders requiring same-day booking on a specific flight, contact us directly on WhatsApp and we will coordinate with the carrier manually.

Volume orders (10+ units) qualify for consolidated freight options with reduced per-unit shipping cost. Lead time for non-stock quantities is 5 to 10 business days depending on sourcing channel.
