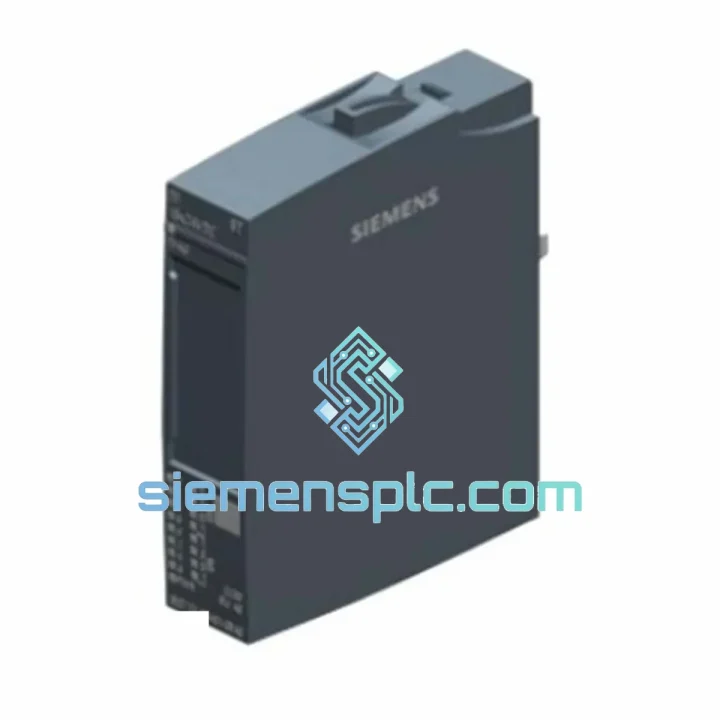

Siemens 6ES7131-6BH01-2BA0 Digital Input Module – ET 200SP

Siemens 6ES7131-6BH01-2BA0 — ET 200SP 16-Channel Digital Input Module: Signal Acquisition Architecture and Control Loop Integration

In distributed control architectures, the integrity of discrete signal acquisition at the field level determines the reliability of every upstream decision made by the controller. The Siemens 6ES7131-6BH01-2BA0 is a 16-channel, 24 VDC digital input module within the SIMATIC ET 200SP platform — a system designed from the ground up for high-density, cabinet-optimized distributed I/O in PROFINET-based automation networks. This module occupies a 15 mm slot on a compatible BaseUnit and delivers optically isolated, configurable-delay digital signal capture directly onto the ET 200SP backplane bus, feeding the Interface Module and ultimately the PROFINET controller with deterministic, low-latency process data.

Unlike general-purpose I/O expansion blocks, the ET 200SP architecture enforces a strict separation between field potential and backplane logic potential through per-channel optocoupler isolation. This design choice is not cosmetic — it directly prevents ground loop interference from propagating into the controller’s data bus, a failure mode that accounts for a disproportionate share of unexplained PLC faults in mixed-signal industrial environments. The 6ES7131-6BH01-2BA0 is the standard-density variant in the DI 16x24VDC HF/BA family, optimized for cost-effective deployments where high-speed timestamping is not required but channel count, thermal performance, and diagnostic transparency are non-negotiable.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optocoupler Isolation Architecture

Each of the 16 input channels passes through a dedicated optocoupler stage that galvanically separates the field wiring potential from the ET 200SP backplane bus. This is not a shared-isolation design — individual channel isolation means that a wiring fault or transient surge on one channel does not couple noise into adjacent channels or into the backplane data path. The isolation barrier is rated to withstand the common-mode voltage differentials typical of 24 VDC field loops in industrial cabinets, including those sharing a common rail with inductive loads such as solenoid valves and motor contactors.

Configurable Input Filter (Debounce Logic)

The six selectable input delay settings (0.05 ms to 12.8 ms) are implemented in hardware filter logic within the module’s input ASIC, not in software. This distinction matters: hardware filtering is deterministic and does not consume CPU scan time or introduce jitter dependent on controller load. The 0.05 ms setting is appropriate for high-frequency proximity sensor outputs or encoder-adjacent discrete signals. The 12.8 ms setting provides robust debouncing for mechanical contacts — pushbuttons, limit switches, and relay outputs — where contact bounce can generate false edge transitions that corrupt state machine logic in the controller program.

EMC Design and Signal Integrity

The module’s PCB layout follows Siemens’ internal EMC design rules for SIMATIC hardware, which include controlled impedance traces on the backplane bus interface, localized decoupling capacitors at each optocoupler supply rail, and a ground plane structure that minimizes return current loop area. The result is a module that meets EN 61000-4-4 (electrical fast transient/burst) and EN 61000-4-5 (surge) immunity requirements without external filtering components. In practice, this means the module maintains data integrity in cabinets where variable frequency drives, switching power supplies, and high-current contactors generate significant conducted and radiated interference.

Hot-Swap and Backplane Arbitration

The ET 200SP backplane bus implements a module presence detection protocol that allows the Interface Module to recognize insertion and removal events without interrupting communication with the PROFINET controller. When a 6ES7131-6BH01-2BA0 is removed under power, the IM reports a module fault to the controller via PROFINET alarm frames. Upon reinsertion, the IM performs automatic parameter download from its local parameter storage — no manual reconfiguration is required. This hot-swap arbitration logic is managed entirely in hardware at the backplane bus level, making it independent of the controller’s CPU load or scan cycle state.

System Integration Benefits

• Deterministic PROFINET cycle integration: The module’s backplane bus transfer completes within the ET 200SP station’s configured PROFINET update cycle (minimum 250 µs with IRT), ensuring that all 16 channel states are presented to the controller as a coherent, time-consistent data word — not a rolling scan of individual channels.
• Channel-level diagnostic transparency: Each channel reports its state and any detected fault (wire break on sourcing configurations, short-circuit on sinking configurations) as individual diagnostic bits accessible in TIA Portal’s online diagnostics view and via PROFINET alarm records, enabling maintenance personnel to isolate faults to a specific terminal without a multimeter.
• Parameterization via TIA Portal hardware catalog: The module’s GSD/GSDML file is natively integrated into TIA Portal V13 and later. Input delay, diagnostic enable/disable, and channel substitution values are configured in the device properties dialog — no manual register addressing or function block parameterization required.
• Scalable station density: A single ET 200SP station supports up to 32 I/O modules on one backplane bus segment. Multiple 6ES7131-6BH01-2BA0 modules can be combined with analog, output, and technology modules in any order, allowing engineers to match I/O mix precisely to the application without purchasing fixed-configuration I/O blocks.
• ATEX Zone 2 / IECEx compliance without external barriers: The module’s certified operating range includes potentially explosive atmospheres classified as Zone 2 (gas) and Zone 22 (dust) when installed per Siemens’ ATEX installation guidelines. This eliminates the need for Zener barriers or galvanic isolators in the field wiring path for Zone 2 applications, reducing BOM cost and cabinet complexity.
• Firmware update without module removal: Firmware updates are delivered online via TIA Portal’s firmware update function while the module remains installed and the station remains powered. The update process is managed by the IM, which coordinates the update sequence to minimize disruption to other modules in the station.
• Consistent hardware replacement across plant lifecycle: The 6ES7131-6BH01-2BA0 MLFB has remained form-factor and parameter-compatible across multiple firmware generations. Replacement modules do not require TIA Portal project modifications — the IM downloads the stored parameter set automatically upon detection of the new module.
• Reduced cabinet footprint: At 15 mm width per module, a 16-channel DI function occupies less than one-third the panel space of equivalent 8-channel DIN rail I/O blocks. In high-channel-count applications (200+ I/O points), this translates to measurable reductions in enclosure size, cable duct volume, and associated installation labor.

Quality Assurance & Global Logistics

Genuine Siemens Origin

Every 6ES7131-6BH01-2BA0 unit supplied by siemensplc.com is sourced through verified distribution channels with full traceability to Siemens’ manufacturing records. Each unit carries the original Siemens MLFB label with date code and firmware version, cross-referenced against Siemens’ product database prior to dispatch. We do not supply grey-market, relabeled, or refurbished units represented as new.

Pre-Shipment Inspection Protocol

Before packaging, each module undergoes: (1) visual inspection of housing, connector pins, and label integrity; (2) MLFB and date code verification against the order specification; (3) ESD handling compliance throughout the inspection process. Units that do not pass inspection are quarantined and not shipped.

Packaging and Export Documentation

Modules are shipped in original Siemens ESD-protective packaging or equivalent anti-static packaging with desiccant and foam cushioning. Export documentation includes commercial invoice, packing list, certificate of origin (Xiamen Customs), and HS code 8537.10 classification. Multi-currency payment is supported: USD, EUR, HKD, and CNY via T/T bank transfer or other agreed methods.

Logistics from Xiamen, China

Xiamen is a designated international logistics hub with direct air freight connections to major industrial centers in Europe, North America, Southeast Asia, and the Middle East. In-stock orders are dispatched within 2–4 business days via DHL Express or FedEx International Priority, with tracking numbers provided within 24 hours of dispatch. Estimated transit times: Europe 3–5 days, North America 4–6 days, Southeast Asia 2–3 days. Sea freight (LCL/FCL) is available for bulk orders. All shipments are covered by cargo insurance upon request.

12-Month Warranty

All units carry a 12-month warranty from the date of shipment against manufacturing defects under normal operating conditions. DOA (Dead on Arrival) claims are processed within 7 business days with replacement or full refund at the buyer’s option. Warranty claims require the original shipping documentation and a written fault description.
