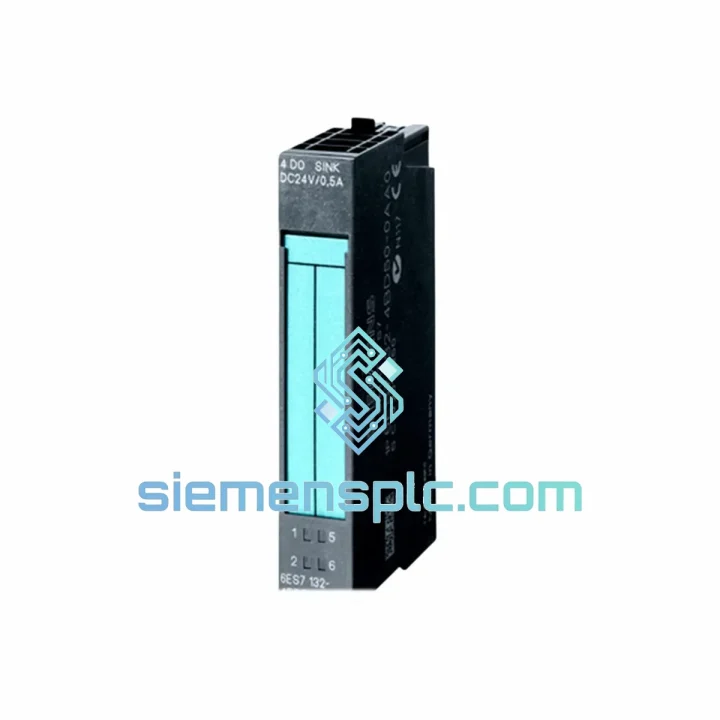

Siemens 6ES7132-4BD00-0AA0 Digital Output Module – ET 200S

Siemens 6ES7132-4BD00-0AA0 — 4-Channel DC 24V/0.5A Transistor Output Module for SIMATIC ET 200S Distributed I/O

The 6ES7132-4BD00-0AA0 is a compact, 15 mm-wide digital output module engineered for the SIMATIC ET 200S distributed I/O platform. It provides four independently driven transistor sourcing channels, each rated at DC 24 V / 0.5 A, and interfaces directly with the ET 200S backplane bus via a dedicated terminal module. In a distributed control architecture, this module occupies the final stage of the output signal chain: it receives process-image data from the CPU across the PROFIBUS DP or PROFINET IO network, converts that data into discrete switching commands, and drives field devices — solenoid valves, indicator lamps, relay coils, and small actuators — with deterministic timing governed by the interface module’s cycle.

Within a control loop, the 6ES7132-4BD00-0AA0 functions as the terminal actuator node. The CPU writes output bits to the process image output (PIO) table; the interface module (IM 151-x) transfers those bits across the internal ET 200S backplane bus to this module’s output register during each I/O update cycle. The module then drives its transistor output stages accordingly. Channel-level short-circuit and overload detection feeds diagnostic data back through the same bus path, making fault states visible in the CPU’s diagnostic buffer without additional wiring or external monitoring hardware.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7132-4BD00-0AA0 is built around a four-channel transistor output stage with individual optocoupler isolation per channel. Each output transistor is a PNP sourcing type, meaning the load is connected between the output terminal and the DC 0 V reference rail. This topology is preferred in industrial environments because a wiring fault to ground does not inadvertently energize the load — a critical safety characteristic in machinery control applications governed by IEC 62061 or ISO 13849.

Optocoupler Isolation Architecture: The galvanic barrier between the ET 200S backplane bus (DC 5 V logic domain) and the field-side output stage (DC 24 V power domain) is implemented via high-speed optocouplers. This isolation eliminates ground loop currents that would otherwise corrupt the 5 V logic signals on the backplane bus when field-side transients occur. The isolation withstand voltage is rated at 500 V AC (1 min), sufficient to absorb the common-mode noise generated by variable-frequency drives and contactor switching in the same cabinet.

Electronic Short-Circuit Protection: Each channel incorporates a current-limiting circuit that clamps output current during a short-circuit event and simultaneously sets a diagnostic bit in the module’s status register. The protection circuit responds within microseconds, preventing thermal damage to the output transistor. Once the fault is cleared, the channel can be reset via the CPU program without cycling power to the station — a significant advantage over fuse-based protection schemes that require physical intervention.

EMC Design: The module’s PCB layout follows Siemens’ internal EMC design rules for SIMATIC hardware, including ground plane segmentation between the logic and field domains, ferrite bead filtering on the backplane bus interface lines, and transient voltage suppression (TVS) diodes on all field-side terminals. These measures ensure compliance with IEC 61000-4-4 (electrical fast transient/burst, 2 kV) and IEC 61000-4-5 (surge, 1 kV line-to-line) without external filtering components.

Backplane Bus Interface: The module communicates with the ET 200S interface module via the internal backplane bus, a proprietary parallel bus embedded in the terminal module rail. Data transfer is synchronous with the interface module’s I/O update cycle. The output register is double-buffered: the CPU writes to a shadow register, and the interface module transfers the shadow register contents to the output latch at the start of each output update phase. This prevents partial output states during register writes, which is essential for coordinated multi-channel switching in motion control and valve sequencing applications.

Hot-Swap Capability: The module supports hot insertion and removal while the ET 200S station remains powered. The terminal module retains field wiring during module replacement, and the interface module detects the module’s absence and presence via the backplane bus, reporting the event to the CPU’s diagnostic buffer. This design reduces mean time to repair (MTTR) in production environments where unplanned downtime carries measurable financial cost.

System Integration Benefits

• Deterministic Output Latency: The module’s output update is synchronized with the ET 200S interface module’s I/O cycle, which is in turn synchronized with the PROFIBUS DP or PROFINET IO bus cycle. This chain of synchronization ensures that output switching latency is bounded and predictable — a prerequisite for time-critical sequences such as injection molding clamp control or press brake stroke coordination.
• Channel-Level Diagnostics: Each of the four output channels reports its status (short-circuit, wire break on supported configurations, overload) independently. Diagnostic data is transmitted to the CPU via the standard DP/PN diagnostic mechanism, accessible in STEP 7 via SFB 52 or in TIA Portal via the hardware diagnostic view, without any additional programming overhead.
• Modular Scalability: The 15 mm module width allows up to 63 I/O modules per ET 200S station (subject to interface module limits), enabling high-density I/O configurations in compact control cabinets. Mixed DO, DI, AI, and AO modules can be combined on the same rail, reducing the number of distributed stations required for a given I/O count.
• Plug-In Terminal Wiring Retention: Field wiring connects to the terminal module, not the I/O module itself. When the 6ES7132-4BD00-0AA0 is replaced, all field wiring remains intact and correctly connected. This eliminates rewiring errors during maintenance — a common source of commissioning delays in multi-channel output stations.
• Consistent Process Image Integration: The module maps directly into the CPU’s process image output (PIO) table. Output states are written using standard STEP 7 or TIA Portal output instructions (Q-bits), with no special function blocks required. This simplifies program structure and reduces the risk of addressing errors in large I/O configurations.
• ATEX Zone 2 Certification: The module carries ATEX certification for use in Zone 2 hazardous areas (Group IIC, Temperature Class T4), making it suitable for deployment in petrochemical, offshore, and pharmaceutical environments where explosive atmospheres may be present intermittently.
• Reduced Cabinet Thermal Load: With a maximum power dissipation of approximately 1.5 W per module under full load, the 6ES7132-4BD00-0AA0 contributes minimally to cabinet heat accumulation. In high-density installations with 20+ output modules, this characteristic reduces the required cabinet cooling capacity compared to relay-based output solutions.
• TIA Portal Integration: Full hardware configuration support in TIA Portal V13 and above, including automatic parameter assignment, online diagnostics, and firmware update capability via the PROFINET interface. The module’s GSD/GSDML file is included in the TIA Portal hardware catalog, eliminating manual configuration entry.
