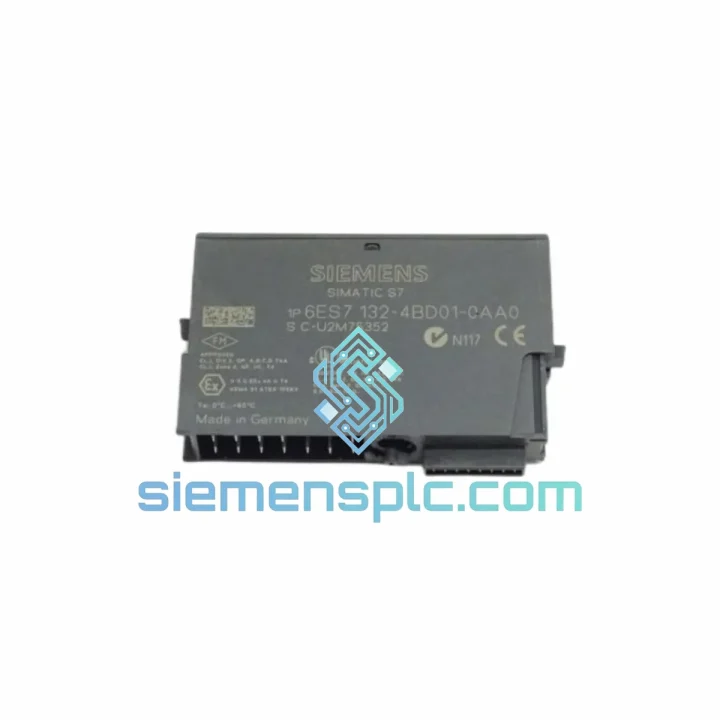

Siemens 6ES7132-4BD01-0AA0 Digital Output Module

6ES7132-4BD01-0AA0 In Stock Now — Every Hour of Downtime Costs You Money

Your ET 200S rack is dead. The line is stopped. Maintenance is standing by. You already know the part number — 6ES7132-4BD01-0AA0 — and you need it on a plane today, not in three weeks. We stock this module in Xiamen, verified, tested, and boxed. One call or email and it ships within hours via DHL Express or FedEx Priority. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that swapping a 6ES7132-4BD01-0AA0 is rarely just a plug-and-play exercise. Here’s what actually trips people up on-site:

1. Terminal Module Must Stay — or Be Replaced Correctly
The 6ES7132-4BD01-0AA0 plugs into a TM-E15S24-01 terminal module (6ES7193-4CA30-0AA0). If the terminal module is damaged — burnt contacts, cracked housing — replace it too. Reusing a damaged TM is the number-one cause of repeat failures. The wiring stays on the TM, so field rewiring is not required when only the electronic module is swapped.

2. No DIP Switches, No Address Setting — But Check the Slot
Unlike older S7-300 SM modules, the ET 200S uses automatic slot-based addressing. The IM assigns I/O addresses based on physical slot position from left to right. If you’re inserting the replacement into the same slot, the address is inherited automatically. If the slot changed for any reason, update the hardware configuration in STEP 7 or TIA Portal and download to the IM — otherwise the CPU will throw a configuration mismatch fault (BF LED on IM).

3. Firmware Compatibility
The 6ES7132-4BD01-0AA0 (revision -01) is compatible with all IM 151-x firmware versions. If you’re replacing with the successor -4BD02-0AA0, no firmware update is required on the IM. However, if your GSD file is very old (pre-2005), regenerate the hardware config after swapping to avoid ghost diagnostics.

4. Common Fault Codes to Diagnose Before Ordering

• SF (Group Fault) LED on IM, channel LED off: Output transistor failed — module replacement confirmed.
• SF LED on, all channel LEDs flashing: Supply voltage missing on PM-E power module. Check the PM-E first before condemning the DO module.
• BF LED on IM: Bus fault — check PROFIBUS connector, termination resistors, and cable continuity before assuming module failure.
• Output stuck ON after module swap: Check PLC program — output may be forced ON in the CPU. Clear force table before testing.
• Intermittent output dropout under load: Verify load current does not exceed 0.5 A per channel. Inductive loads (solenoids, relays) require freewheeling diodes — missing suppression diodes cause transistor degradation over time.

5. Replacement Procedure (Field-Tested Sequence)

1. Set CPU to STOP mode or isolate the affected ET 200S station via PROFIBUS/PROFINET.
2. De-energize the PM-E power module supplying the DO module (24 VDC load supply).
3. Press the orange release lever on the electronic module and pull it straight out of the terminal module.
4. Insert the replacement 6ES7132-4BD01-0AA0 until it clicks firmly into the TM.
5. Re-energize PM-E, set CPU to RUN. Verify channel LEDs respond to PLC outputs.
6. Clear any pending diagnostics in the CPU diagnostic buffer.

Reliability in Harsh Conditions

Industrial environments don’t care about your schedule. The 6ES7132-4BD01-0AA0 is engineered to operate continuously in conditions that would kill consumer-grade electronics within weeks.

Vibration & Mechanical Shock: Designed to IEC 60068-2-6 (sinusoidal vibration) and IEC 60068-2-27 (shock) standards. The plug-in module design with positive-locking retention means it won’t work loose on machinery with high-cycle vibration — conveyor drives, presses, and compressor skids included.

Thermal Cycling: Rated 0 °C to +60 °C operating, −40 °C to +70 °C storage. The transistor output stage is thermally derated at high ambient temperatures, but within the rated envelope, the module handles continuous duty without heatsinking. In cabinet installations above 45 °C ambient, ensure adequate forced-air ventilation per Siemens installation guidelines.

Humidity & Condensation: Rated to 95% relative humidity (non-condensing) per IEC 60068-2-78. The conformal coating on the PCB provides a baseline barrier against moisture ingress. For installations in coastal or high-humidity environments (paper mills, food processing, offshore platforms), ensure the cabinet maintains positive pressure with filtered, dehumidified air.

EMC Immunity: Compliant with EN 61000-6-2 (industrial immunity). The module withstands fast transients (EFT), surge, and conducted RF interference at levels typical of motor drive environments. Proper cable segregation — keeping 24 VDC I/O cables away from VFD output cables — remains the engineer’s responsibility and is not a module limitation.

ATEX Zone 2 Certification: The module carries Ex nA IIC T4 Gc classification, permitting installation in Zone 2 hazardous areas where flammable gases may be present under abnormal conditions. This is a genuine hardware certification, not a marketing claim — the module has been independently tested and certified.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental: it was chosen specifically to minimize transit time to Southeast Asia, Europe, the Middle East, and the Americas.

Standard Express Routing:

• Southeast Asia (SG, MY, TH, VN, ID): DHL Express / FedEx International Priority — 1 to 2 business days door-to-door.
• Europe (DE, NL, PL, IT, ES, UK): DHL Express — 3 to 4 business days. FedEx International Priority available as alternative.
• Middle East (AE, SA, QA, KW): DHL Express — 2 to 3 business days.
• North America (US, CA, MX): FedEx International Priority — 3 to 5 business days depending on customs clearance.
• Australia & New Zealand: DHL Express — 3 to 4 business days.

Order Cut-Off: Orders confirmed and paid before 14:00 CST are processed and handed to the courier the same business day. You receive a tracking number within 2 hours of dispatch.

Export Documentation: We prepare commercial invoice, packing list, and certificate of origin as standard. For customers requiring HS code 8537.10 classification, FORM E (ASEAN-China FTA), or specific customs declarations, notify us at order placement. We handle export customs clearance from our end — your freight arrives clean.

Packaging: Each 6ES7132-4BD01-0AA0 is packed in anti-static foam insert inside a double-wall corrugated carton. Fragile labels and orientation arrows applied. For multi-unit orders, modules are individually bagged and separated to prevent contact damage in transit.

Insurance & Claims: All express shipments include carrier liability coverage. For high-value orders, we recommend declared-value insurance — request at checkout or via email. In the event of transit damage, we initiate the claim on your behalf and ship a replacement unit immediately to keep your line moving.
