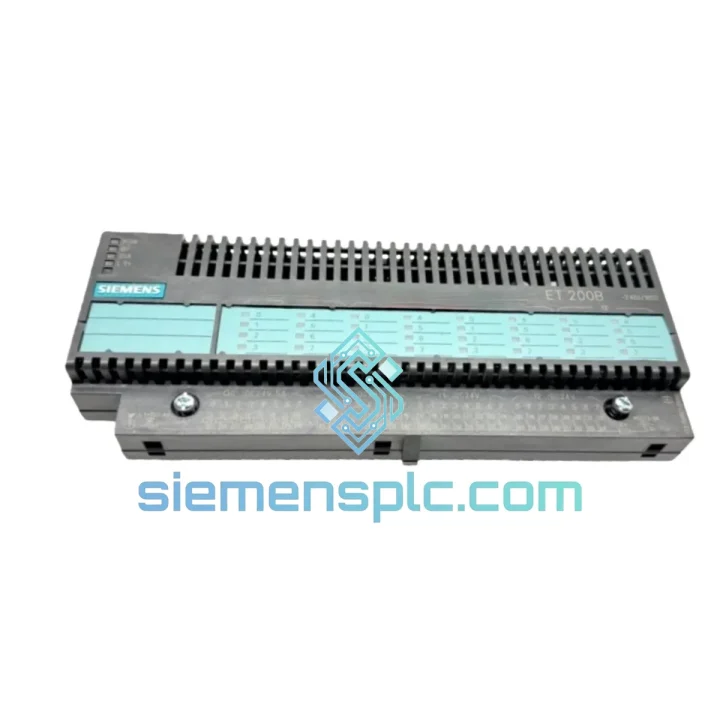

Siemens 6ES7133-0BN01-0XB0 Electronic Module – SIMATIC ET 200B

Siemens 6ES7133-0BN01-0XB0 — ET 200B Electronic Module in SIMATIC Distributed I/O Architecture

The 6ES7133-0BN01-0XB0 is the signal-processing electronic module for the SIMATIC ET 200B distributed I/O station, operating as the active interface between the PROFIBUS-DP field bus and the physical terminal block carrying field-level 24 V DC digital signals. Within an ET 200B station, the electronic module is mechanically and electrically separated from the terminal block (6ES7193-x series), enabling hot-swap replacement of the active electronics without disturbing field wiring — a design principle that directly reduces mean time to repair (MTTR) in live production environments.

The ET 200B family was engineered for compact DIN-rail deployment in IP20 control cabinets, targeting applications where a full ET 200M rack would be over-specified. The 6ES7133-0BN01-0XB0 carries 16 digital inputs at 24 V DC, with each channel individually protected and optically isolated from the backplane logic. The module communicates upstream via the ET 200B bus interface module (6ES7141-x series), which handles the PROFIBUS-DP slave protocol stack, GSD file parameterization, and watchdog supervision. The electronic module itself is responsible for signal conditioning, channel diagnostics, and data word assembly before handoff to the bus interface.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7133-0BN01-0XB0 implements a two-stage signal path. At the field terminal, each of the 16 input channels passes through a passive RC filter network that suppresses transient noise below the 1.2 ms hardware filter threshold — this is the first line of defense against contact bounce and inductive switching spikes common in relay-heavy panels. The filtered signal then drives an optocoupler whose LED side is referenced to the field 24 V DC supply, while the phototransistor side is referenced to the module’s internal 5 V logic rail. This galvanic barrier sustains a 500 V AC withstand voltage between field and logic domains, which is the primary mechanism for breaking ground loops in multi-cabinet installations.

Channel data is assembled into a 16-bit process image word by the module’s internal logic and written to the ET 200B internal parallel bus. The bus interface module (6ES7141-x) reads this word at each PROFIBUS-DP cycle and maps it into the DP slave input data frame. Because the internal bus operates synchronously with the electronic module’s scan cycle — not asynchronously with PROFIBUS — there is no additional jitter introduced at the module level. The determinism of the input data is therefore bounded by the PROFIBUS-DP cycle time configured in the master (S7-300/400 CPU or CP 342-5), not by the electronic module itself.

The module’s EMC design follows EN 61000-6-2 class requirements. The PCB layout uses a split ground plane strategy: the field-side ground (M24V) is physically separated from the logic-side ground (MBUS) with the optocoupler barrier spanning the gap. Decoupling capacitors are placed at each power entry point with X2-class film capacitors handling differential-mode suppression and Y2-class ceramics handling common-mode paths to the DIN rail PE conductor. This architecture allows the module to operate without degradation in environments with conducted disturbances up to 10 V (IEC 61000-4-6) and radiated fields up to 10 V/m (IEC 61000-4-3).

The mechanical separation between electronic module and terminal block is not merely a serviceability feature — it also functions as a thermal management strategy. The terminal block, which carries the higher-current field wiring, dissipates its resistive heating independently from the electronic module’s PCB. This prevents thermal coupling from field-side load currents from elevating the junction temperature of the optocouplers and logic ICs, extending component service life in high-ambient-temperature cabinet installations.

System Integration Benefits

• Zero-rewiring hot-swap: The electronic module separates from the terminal block without disturbing field wiring, reducing replacement time to under 5 minutes and eliminating the risk of miswiring during maintenance.
• GSD-based parameterization: The ET 200B station is configured entirely via the GSD file in STEP 7 HW Config or TIA Portal, with no DIP switch settings on the electronic module itself — configuration is stored in the DP master and downloaded at startup, preventing parameter drift after module replacement.
• Deterministic cycle integration: Input data is available to the S7 CPU’s process image at every OB1 or OB35 scan cycle with latency bounded by the PROFIBUS-DP cycle time, supporting time-critical interlock logic without additional software buffering.
• Channel-level diagnostics: The bus interface module reports wire-break and short-circuit faults per channel group to the DP master, which surfaces them as diagnostic interrupts (OB82) in the S7 CPU — enabling fault localization without a handheld tester on the cabinet floor.
• Scalable station density: Multiple electronic modules can be stacked on a single ET 200B bus interface, allowing I/O expansion within the same PROFIBUS address without adding a new DP slave node — preserving bus bandwidth and simplifying network topology.
• Consistent process image mapping: The 16-bit input word maps directly to a contiguous byte pair in the CPU’s peripheral input area (PIW), simplifying address management in structured control programs and reducing the risk of addressing errors during commissioning.
• Wide supply voltage tolerance: The 20.4–28.8 V DC input range accommodates voltage drops across long cable runs and tolerates the ripple output of unregulated 24 V DC power supplies, reducing nuisance faults in installations with marginal power distribution design.
• Proven ecosystem longevity: The ET 200B platform has been in continuous production and support for over two decades. Spare parts availability, GSD file archives, and STEP 7 library support are maintained by Siemens, protecting the capital investment in existing installations.

Quality Assurance & Global Logistics

Every unit of the 6ES7133-0BN01-0XB0 dispatched from our Xiamen, China facility is sourced from verified Siemens-authorized supply channels. Each module undergoes incoming inspection covering label authenticity, date code cross-reference, connector pin integrity, and housing condition before entering our bonded stock. Units are stored in ESD-controlled, climate-regulated warehouse conditions consistent with Siemens storage guidelines (–40 °C to +70 °C, <95 % RH non-condensing).

Outbound packaging uses anti-static PE foam inserts within double-wall corrugated cartons, with desiccant sachets included for sea freight consignments. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every shipment. Air freight via DHL Express, FedEx International Priority, or UPS Worldwide Express is available for urgent requirements, with transit times of 3–5 business days to Europe, North America, and Southeast Asia. Sea freight consolidation is available for bulk orders. All shipments are tracked end-to-end with AWB or B/L numbers provided at time of dispatch.

A 12-month warranty covers manufacturing defects under normal operating conditions as defined in the Siemens product documentation. Warranty claims are processed with photographic evidence and, where required, return of the defective unit for inspection. Replacement units are dispatched within 5 business days of claim approval.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
Location: Xiamen, China
