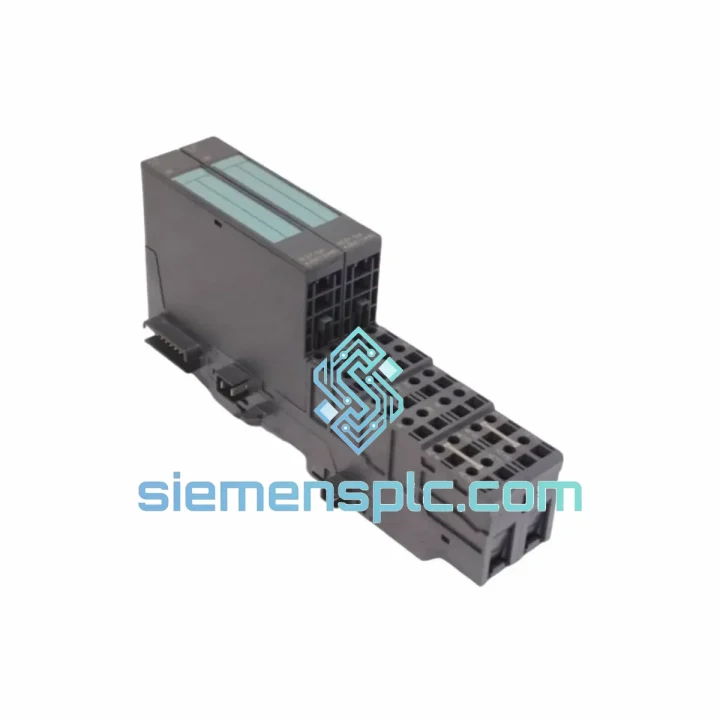

Siemens 6ES7134-4JB00-0AB0 Analog Input Module – ET 200S

Siemens 6ES7134-4JB00-0AB0 — 2-Channel Analog Input Module for ET 200S Distributed I/O

The Siemens 6ES7134-4JB00-0AB0 is a 2-channel analog input electronic module engineered for the SIMATIC ET 200S distributed I/O platform. Operating within a modular, slot-based station architecture, this module performs high-resolution signal conditioning for standard industrial transducers — converting 4–20 mA current loops and ±10 V / 0–10 V voltage signals into 15-bit digital values that the controlling CPU processes via the PROFIBUS DP or PROFINET backplane. Its 15 mm slim-line form factor allows dense station builds without compromising per-channel measurement fidelity, making it a standard selection for process instrumentation, machine feedback loops, and distributed field I/O in both greenfield and retrofit projects.

In a typical ET 200S station, the 6ES7134-4JB00-0AB0 occupies a terminal module slot adjacent to the power module (PM-E 24 V DC) and communicates with the interface module (IM 151-x) over the internal station bus. The interface module aggregates all slot data and forwards it to the PLC CPU — either via PROFIBUS DP at up to 12 Mbit/s or via PROFINET IO — within a deterministic cycle. Each analog channel is individually parameterized in STEP 7 or TIA Portal, allowing independent selection of measurement range, smoothing filter level, and diagnostic alarm thresholds without affecting adjacent channels.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7134-4JB00-0AB0 implements a successive-approximation ADC architecture with a 16-bit conversion register, of which 15 bits carry measurement data and 1 bit carries sign. The analog front-end uses a differential input topology: each channel accepts a differential signal pair (IN+ / IN−) referenced to the module’s MANA terminal, which suppresses common-mode interference up to ±12 V without external filtering components. This is particularly relevant in environments where long cable runs from field transmitters introduce ground potential differences between the sensor and the control cabinet.

The module’s interference suppression filter is software-selectable at 50 Hz or 60 Hz, implemented as a digital sinc filter that attenuates mains-frequency noise by more than 60 dB. At 50 Hz suppression, the integration time is 20 ms per channel, yielding a total station scan contribution of 40 ms for both channels — a deterministic value that system designers must account for in the overall PLC cycle time budget. Selecting 60 Hz suppression reduces integration time to 16.7 ms per channel, appropriate for North American grid environments.

Electrical isolation between the analog measurement circuit and the ET 200S backplane bus is achieved through a DC/DC converter and optocoupler barrier rated at 500 V AC (1 min test voltage). This isolation boundary prevents ground loops from propagating into the station bus and protects the interface module and CPU from transient overvoltages originating at the field wiring terminals. The two input channels share a common analog reference (MANA), meaning they are not isolated from each other — a design constraint that must be observed when connecting sensors with independent ground references.

The module’s EMC design conforms to EN 61000-6-2, with shielded internal PCB traces and a metal housing clip that bonds the terminal module’s shield rail to protective earth. For installations in high-EMI environments (variable frequency drives, arc welding equipment), Siemens recommends routing analog signal cables in separate conduits from power cables and terminating cable shields at the terminal module’s PE rail — a practice that, combined with the module’s internal differential input stage, typically achieves signal integrity at cable lengths up to 200 m for 4–20 mA loops.

System Integration Benefits

• Deterministic cycle contribution: Fixed 2 ms conversion time per channel integrates predictably into PROFIBUS DP and PROFINET IO cycle calculations, enabling precise worst-case response time analysis for closed-loop control applications.
• Per-channel parameterization: Each channel’s measurement range, smoothing level, and diagnostic alarm limits are stored in the interface module’s parameter record and automatically restored after a module replacement — eliminating manual reconfiguration during maintenance.
• Wire-break and short-circuit diagnostics: The module generates channel-specific diagnostic interrupts (OB82) on wire-break (current mode) or overrange/underrange conditions, allowing the CPU program to execute fault-handling routines without polling.
• Slot-based hot-swap capability: When used with IM 151-3 PN or IM 151-7 CPU interface modules, the 6ES7134-4JB00-0AB0 supports module replacement under power (MRUP), reducing maintenance downtime to the time required for physical module exchange.
• Scalable station density: The 15 mm slot width allows up to 63 electronic modules per ET 200S station (subject to power budget), enabling high-density analog acquisition without additional field junction boxes.
• Consistent data format: Analog values are delivered to the CPU in a standardized 16-bit signed integer format (S7 analog value representation), compatible with standard PID function blocks (FB41 CONT_C) and drive parameter write functions without data type conversion.
• ATEX Zone 2 certification: The module carries Ex nA IIC T4 certification, permitting installation in Zone 2 hazardous areas when mounted in an appropriate enclosure — extending ET 200S reach into petrochemical and gas processing field environments.
• TIA Portal asset management: Module identity data (order number, firmware version, serial number) is readable via the TIA Portal device diagnostics view and via SNMP/PROFINET DCP, supporting asset inventory and predictive maintenance workflows without physical inspection.

Quality Assurance & Global Logistics

Every 6ES7134-4JB00-0AB0 unit supplied by siemensplc.com is sourced through verified industrial supply channels with full traceability to Siemens manufacturing records. Pre-shipment inspection covers visual integrity, label authenticity (hologram verification), and serial number cross-reference against Siemens product databases. Units are dispatched in original Siemens ESD-safe packaging or equivalent anti-static protective packaging to prevent electrostatic discharge damage during transit.

Logistics operations are based in Xiamen, China, with access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all shipments. For project orders requiring a certificate of conformity or third-party inspection report, these are available upon request prior to shipment. Typical lead time for in-stock units is 1–3 business days to most destinations in Southeast Asia, the Middle East, and Europe.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched upon confirmation of the defect — minimizing production downtime for our customers.
