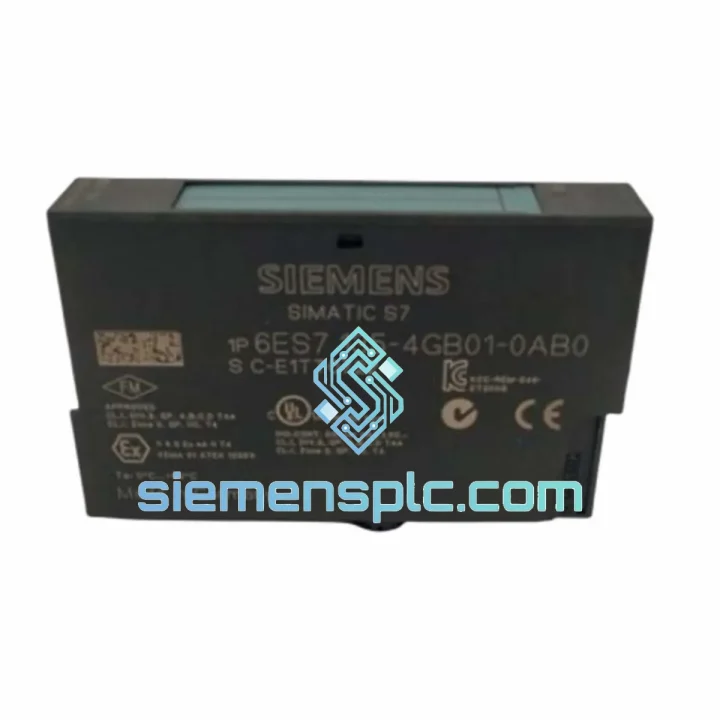

Siemens 6ES7135-4GB01-0AB0 Analog Output Module

Siemens 6ES7135-4GB01-0AB0 — Stop the Bleed: Get Your Analog Output Loop Back Online Before the Next Shift

Your ET 200S station just threw a red fault LED. The analog output channel is dead. Downstream, a VFD is running at fixed speed, a control valve is stuck at its last position, and your DCS is screaming open-loop alarms. Every minute this module stays offline, you are burning money — scrap, idle labor, missed throughput targets. You do not need a lecture on specifications right now. You need the part, fast, from someone who actually understands what is happening on your panel.

We stock the Siemens 6ES7135-4GB01-0AB0 in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and land on your dock within 3–5 business days. If you are in Southeast Asia, expect 2–3 days. This is not a lead-time estimate — it is what we actually deliver.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes for this module in the field:

1. Channel output stuck at 0 V / 0 mA (no signal, no fault LED)
Nine times out of ten this is a blown output driver caused by a wiring short on the field side — someone connected a low-impedance load directly without checking the loop resistance. Before you swap the module, disconnect the field wiring from the terminal module and measure resistance between AO+ and AO−. Anything below 50 Ω on a current output channel is a red flag. Replace the module, but fix the wiring first or you will kill the new one within hours.

2. SF LED on, diagnostic buffer shows “Wire break” on current output
The 4–20 mA mode has wire-break detection. If the loop resistance exceeds ~1 kΩ (open circuit), the module flags a wire-break fault. Check terminal connections at both the TM and the field device. Corroded screw terminals on the 6ES7193-4CA40-0AA0 terminal module are a frequent culprit in humid environments. Clean with contact spray, re-torque to 0.5 Nm.

3. Output value drifts or is offset from setpoint
This is almost always a ground loop issue. The 6ES7135-4GB01-0AB0 has isolated channels, but if the field device shares a common ground with the ET 200S station ground through a cable shield, you can get a DC offset of several milliamps. Lift the shield at one end only. If the problem persists, the output DAC may be degraded — replace the electronics module.

Replacement procedure — step by step:

Step 1: In TIA Portal or STEP 7, note the current channel configuration (output type, range, substitute value behavior on CPU STOP). Screenshot the hardware config before you touch anything.
Step 2: Set the CPU to STOP mode. The ET 200S will de-energize outputs. Confirm the field device is in a safe state (valve closed, drive at zero speed).
Step 3: The 6ES7135-4GB01-0AB0 supports hot-swap — the terminal module (TM) stays wired. Press the orange release lever on the electronics module and slide it out of the TM. No tools required.
Step 4: Slide the new module into the TM until it clicks. The module self-addresses from the TM slot position — no DIP switches, no manual address setting required on this series.
Step 5: Set CPU back to RUN. The ET 200S will automatically parameterize the new module using the stored hardware configuration. Watch the SF LED — it should go out within 2–3 seconds.
Step 6: Verify output values at the field device. Cross-check against the process variable in your SCADA/DCS. If the output is correct but the field device is not responding, the fault is downstream — not the module.

Firmware note: The 6ES7135-4GB01-0AB0 does not carry user-upgradeable firmware. The module version (hardware revision printed on the label) must be compatible with your IM 151 firmware. If you are running an older IM 151-1 with firmware below V3.0, verify compatibility in the Siemens compatibility tool (SIOS) before ordering. We can advise — send us your IM part number and firmware version.

Reliability in Harsh Conditions

The ET 200S platform was not designed for climate-controlled server rooms. It was designed for the floor — foundries, offshore platforms, chemical plants, and outdoor substations. The 6ES7135-4GB01-0AB0 reflects that design philosophy.

The module housing uses a reinforced thermoplastic rated for continuous operation at 60 °C ambient without derating. Internal conformal coating on the PCB provides protection against condensation and airborne contaminants — relevant in food processing and coastal installations where salt-laden air accelerates corrosion on unprotected boards. Vibration resistance meets IEC 60068-2-6 (sinusoidal, 10–58 Hz, 0.075 mm amplitude; 58–500 Hz, 1 g). Shock resistance meets IEC 60068-2-27 (15 g, 11 ms half-sine). These are not marketing numbers — they are the same specs that keep this module running on a stamping press or a ship engine room without nuisance faults.

The electrically isolated channel design means a transient spike on one output loop — from a VFD switching event or a lightning strike on a long cable run — does not propagate to the second channel or back into the ET 200S backplane. In high-noise environments, this isolation is the difference between a single-channel fault and a station-wide shutdown.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions (18–25 °C, RH <60%) and individually sealed in anti-static ESD bags with desiccant. Long-term storage degradation — a real concern with electrolytic capacitors in analog circuits — is mitigated by our stock rotation policy. We do not sell modules that have been sitting on a shelf for five years.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is what the actual shipping timeline looks like:

Order confirmed before 14:00 CST: Same-day dispatch.
DHL Express Worldwide: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 3–4 days, South America 5–7 days.
FedEx International Priority: Similar transit times with alternative routing for destinations where DHL coverage is limited.

Every shipment includes a commercial invoice, packing list, and certificate of origin. For customers requiring HS code documentation for customs pre-clearance, we provide the correct HS code (8537.10 for this module type) and can prepare a detailed technical description letter for customs brokers in markets with strict import controls (India, Brazil, Indonesia).

We ship DDP (Delivered Duty Paid) to most destinations in the EU, UK, and Australia — meaning you pay one price and the module arrives at your door with no surprise import duties or brokerage fees. DAP (Delivered at Place) is available for all other destinations. Payment terms: T/T bank transfer, PayPal, or LC for orders above USD 5,000.

For emergency AOG (Aircraft on Ground) or production-critical situations, contact us directly on WhatsApp. We can arrange Saturday dispatch and expedited customs clearance documentation within 2 hours of order confirmation.
